Studio/recording microphones

Large diaphragm studio mic with pad, roll-off, spider

Product Code: JP-JS1

Brand
JTS
RRP $499.00

Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

JS-1

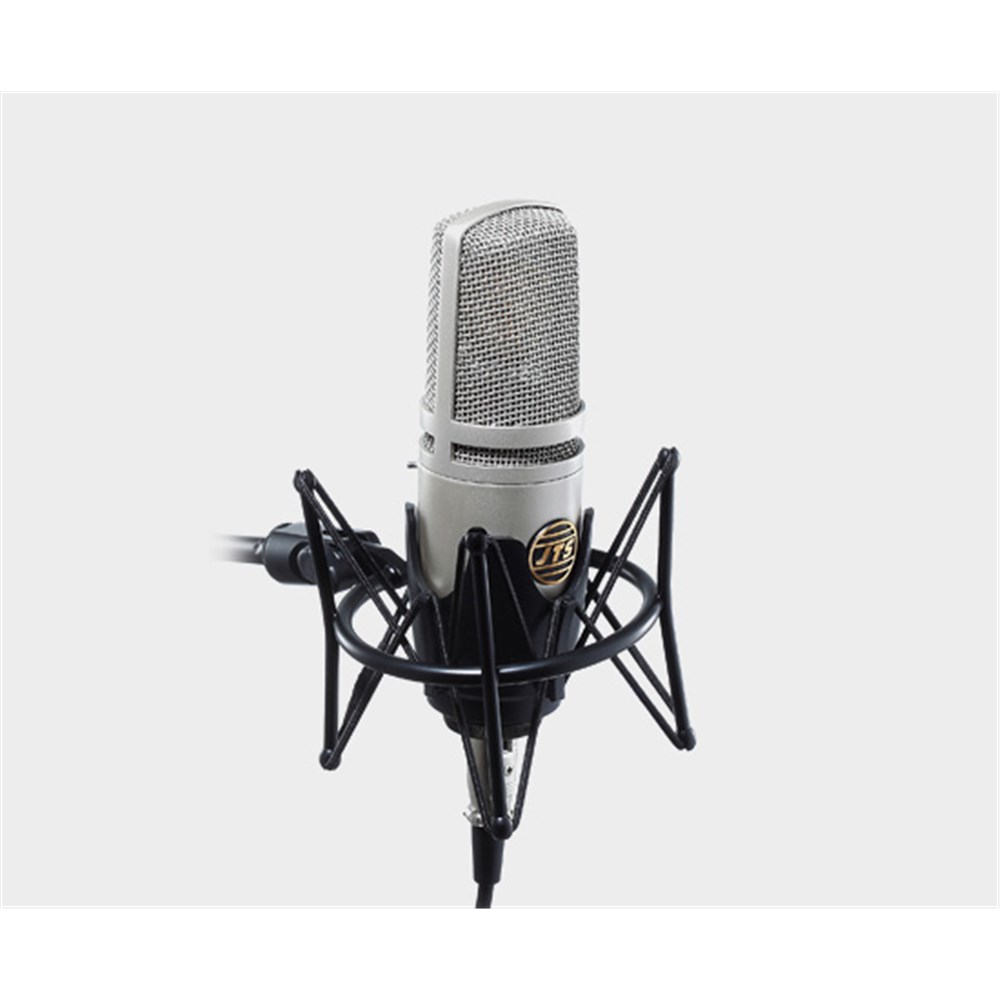

The JTS JS-1 is a studio microphone designed for use in the most demanding applications. A specially contoured 1” super thin 24K gold plated diaphragm provides superb reproduction of high sound pressure level signals at all frequencies. A switchable 10dB pad is built-in to increase the SPL capabilities. It’s precise resolution and ability to handle high sound-pressure levels makes it an excellent all-purpose microphone. Included with the JS-1 a versatile shock-mount with standard 5/8”-27 threads.



SPECIFICATIONS

Type

  • Large Diaphragm Condenser Mic

Frequency Response

  • 20~20,000 Hz

Sensitivity(at 1000Hz)

  • -38 dB* (12.6mV) 0dB=1V /Pa

Directional Pattern

  • Cardioid

Attenuation Switch

  • 10dB

Low Frequency Roll-off

  • 80Hz

Impedance

  • 200 Ω

Max. SPL For 1% T.H.D.

  • 132 dB

Signal To Noise Ratio

  • 78dB

Power Supply

  • 36-52 VDC phantom power

Current Consumption

  • ≤1mA

Output

  • 3Pin XLR (M) (power module)

Net Weight

  • 480 grams(16.9oz)

Dimensions(mm)

  • Ø56mm(W)* 184mm(H)

Product Documents

No documents available
