Microphones

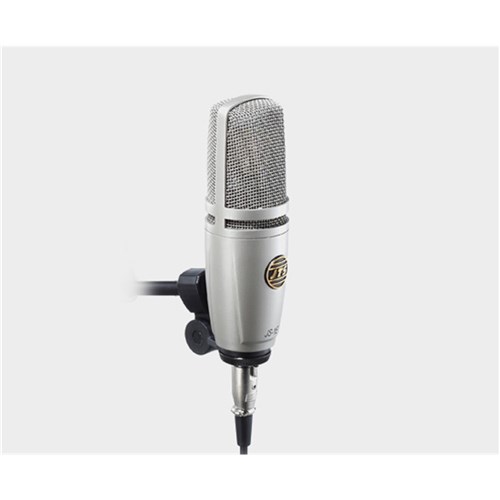

Large diaphragm studio mic with basic mounting clip

Product Code: JP-JS1E

Brand
JTS
RRP $269.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

JS-1E


The JS-1E is an economic version of JS-1, but does not provide the PAD and LOW CUT function switches and circuitry of the JS-1 and does not include the spider type shock mount that is included with the JS-1.



SPECIFICATIONS


Type

  • Large Diaphragm Condenser Mic

Frequency Response

  • 20~20,000 Hz

Sensitivity(at 1000Hz)

  • -38 dB* (12.6mV) 0dB=1V /Pa

Directional Pattern

  • Cardioid

Impedance

  • 200 Ω

Max. SPL For 1% T.H.D.

  • 132 dB

Signal To Noise Ratio

  • 78dB

Power Supply

  • 36-52 VDC phantom power

Current Consumption

  • ≤1mA

Output

  • 3Pin XLR (M) (power module)

Net Weight

  • 480 grams(16.9oz)

Dimensions(mm)

  • Ø56mm(W)* 184mm(H)
