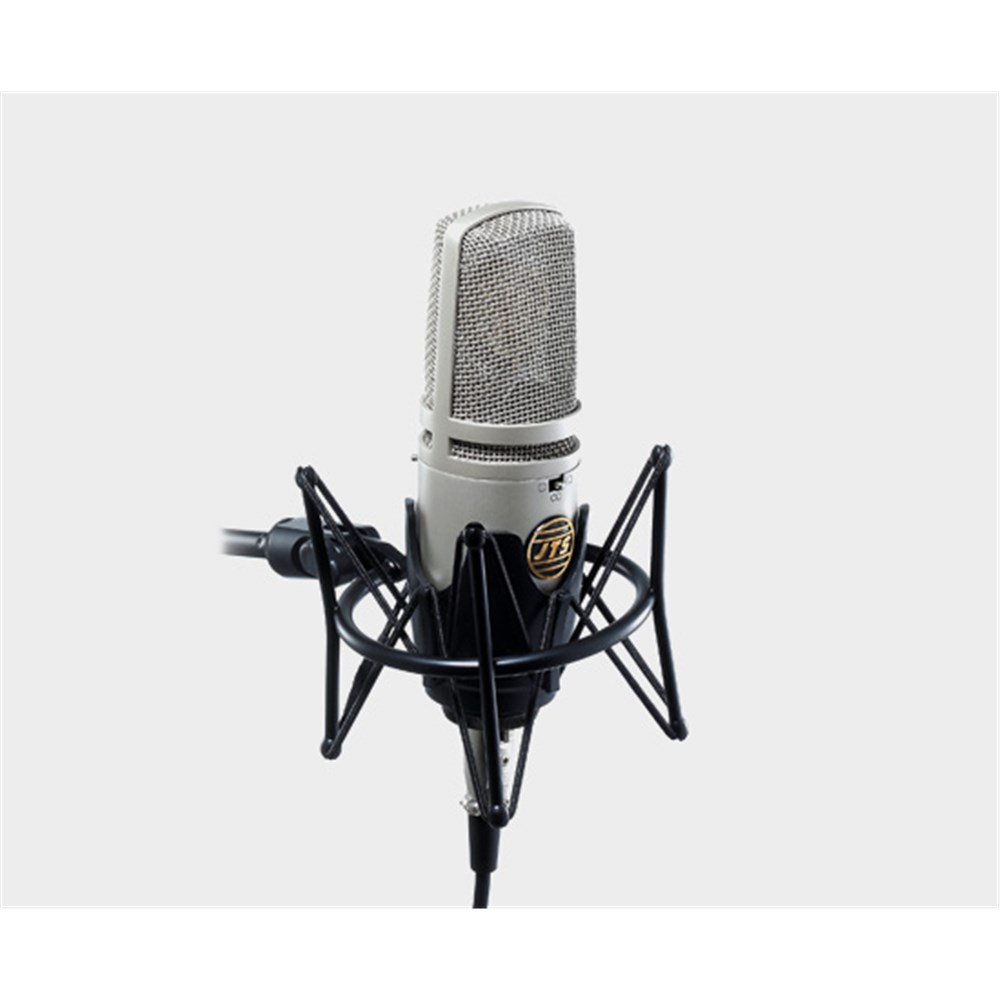

JS-1T

The JS-1T is a multi-pattern studio microphone with three selectable polar patterns: Cardioid, Omnidirectional and Figure-8 providing superb performance for vocals, acoustic Instruments, drum kits, percussion etc. for either Live or Studio Recording.

SPECIFICATIONS

Type

• Large Diaphragm Condenser Microphone

Frequency Response

• 20~20,000 Hz

Sensitivity(at 1000Hz)

• -38 dB* (12.6mV) 0dB=1V /Pa

Directional Pattern

• Cardioid,Omnidirectional,figure-8

Low Frequency Roll-off

• 80Hz

Impedance

• 200Ω

Max. SPL For 1% T.H.D.

• 132 dB

Signal To Noise Ratio

• 78dB

Power Supply

• 36-52 VDC phantom power required

Current Consumption

• 1mA

Output

• 3 Pin XLR(M) (power module)

Net Weight

• 480 grams(16.9oz)

Dimensions(mm)

• Ø56mm(W)* 184mm(H)
