Microphones

JSS-4A transmitter hand-held with TC-22 capsule for R-4 system, silver colour

Product Code: JP-JSS4AB1

Brand
JTS
RRP $969.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

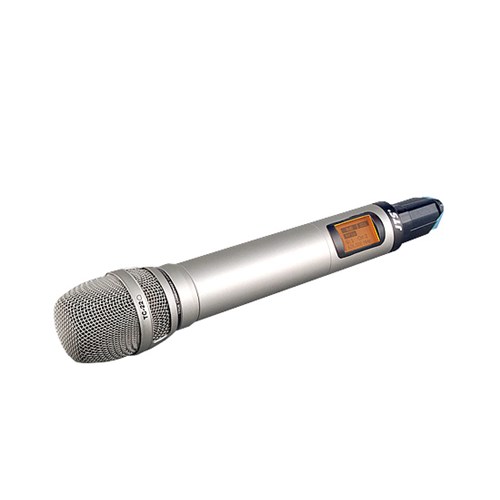

JSS-4A hand-held transmitter, wth premium TC-22 condenser capsule, silver colour



JSS-4A

  • 2400 to 3000 selectable frequencies
  • Preset 15 groups each of up to 63 compatible channels
  • Phase-Locked Loop (PLL) synthesized tune
  • Extended dynamic range and smooth frequency response.
  • Adjustable transmission power between Low and High
  • The panel Lock-On function prevents tampering and RF interruption
  • Together with JTS various capsules preferred miking is assured.
  • With TC-22 true condenser capsule

NEWEST FEATURE:

  • It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

SPECIFICATIONS

Frequency Preparation

  • PLL Synthesized Control

Carrier Frequency Range

    • B1: UHF 520~566 MHz
    • B4: UHF 638~674 MHz

Bandwidth

  • 108MHz Wideband

RF Outputs

  • Low / High

Stability

  • < ±10KHz

Frequency Deviation

  • ± 48KHz (Peak)

Chassis

  • Aluminium alloy

LCD Display

  • Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust

Controls

  • Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Output Connector

  • 4P Mini XLR

Spurious Emissions

  • <-50 dBC

Audio Frequency Response

  • 50Hz ~ 18k Hz

Battery

  • UM3, AA x2

Dimensions

  • 50mm (W) x253mm (H) x35.5mm (D)

Weight

  • 93g

Notes

  • Actual product specifications may vary depending on model and region.
