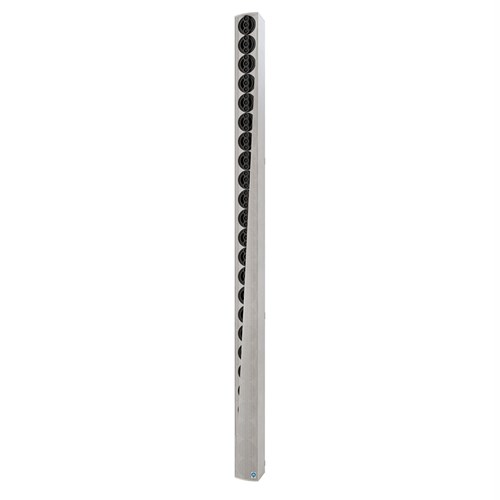

IC24-RD

Digitally Steerable Line Array Loudspeaker Systems

Since 2005 Renkus-Heinz have been leading the field in Digitally Steerable loudspeakers.

ICONYX has now been installed in thousands of project worldwide, from LAX International Airport in Los Angeles to the Great Hall of the People in Beijing, China.

Truly the most flexible, powerful and architecturally seamless, Digitally Steerable Column Array on the market Iconyx brings intelligible sound to even the most demanding acoustic environments.

IC24-RD
Advanced Steered Beam Technology

Tyler, TX, First Presbyterian

• Dual Redundant Dante Connectivity
• RHAON II Control and Dante audio delivery over the same Dante network connection
• 24x 4" Coaxial Transducers each with three HF tweeters
• 24x Amplifier and DSP channels
• Beam control effective down to 250Hz
• Multiple beams and multiple acoustic beam centers
• Multiple Configuration Presets
• Slim, Low-Profile Design

ICONYX technology gives sound system designers the power to create a system to cover even the most problematic spaces. Up to 12 steerable beams can be individually shaped and aimed from a single IC24-RD column using the powerful software-controlled DSP.

Multichannel audiophile amplifiers power arrays of purpose-designed coaxial transducers, each with its own triple tweeter high frequency array. This triple tweeter "array within an array" design reduces the distance between HF sources for greatly improved high frequency performance with consistent, broad horizontal dispersion.

Technical Information

• Sensitivity: 1.0 V (for rated power output)
• Freq. Range: 120 Hz to 18 kHz
• Max SPL: 102 dB peak,@ 100 Ft. (30.5 meters) (3-octave bandwidth centered at 2 kHz
• Power Consumption:
  • Idle: 180 Watts
  • 1/8 Power: 360 W (onset of limiting)
  • 1/3 Power: 1260 W (hard limiting)
• Horiz. Dispersion: 150° up to 3 kHz; 120° above 3 kHz
• Vert. Opening Angle: 5°, 10° and 15°
• Vert. Aiming Angle: Adjustable from -30° to +30°
• Typical Throw: 195 Ft. (60 meters)
• Beam Control: Effective down to 250 Hz
• System Latency:
  • 8ms analog input to output
  • Preset 0
• No. Transducers: 24 coaxial trasnsducers, each having triple tweeters
• No. Amp. Channels: 24
• Transducers: Coaxial with a 4” woofer and triple 1” tweeters,
• RH model SSL4-7; 25 W RMS, 50 W Pgm
• Inputs:
  • Analog Audio: 2 balanced inputs on Phoenix Connectors
  • AES/EBU: Phoenix Connector
  • Dual RJ45 connectors for Ethernet Control
• Computer Controls:
  • Gain, Mute, On/Standby, Input Selection
  • Compression
  • 8-Band Parametric EQ
  • Shelving & Rolloff Filters
  • Delay
  • Preset Configuration Selection
• Status Indicators:
  • Power
  • Signal
  • Overdrive
  • Thermal
  • Mute
  • Input Pad
  • Preset Configuration Selection Readout
• Hanging Method: 3-point hinges or Metric M6 thread eye-bolts
• Enclosure: Extruded Aluminum with perforated steel grille
• Finish:
  • White paint standard
  • Optional finishes: black andcustom color paint
  • Weather resistant
• Weight: 108 Lbs (48.9 Kg) Net
• Dimensions: 2840mm x 156mm x 186mm) (includes Mounting Hinges)
