Speakers

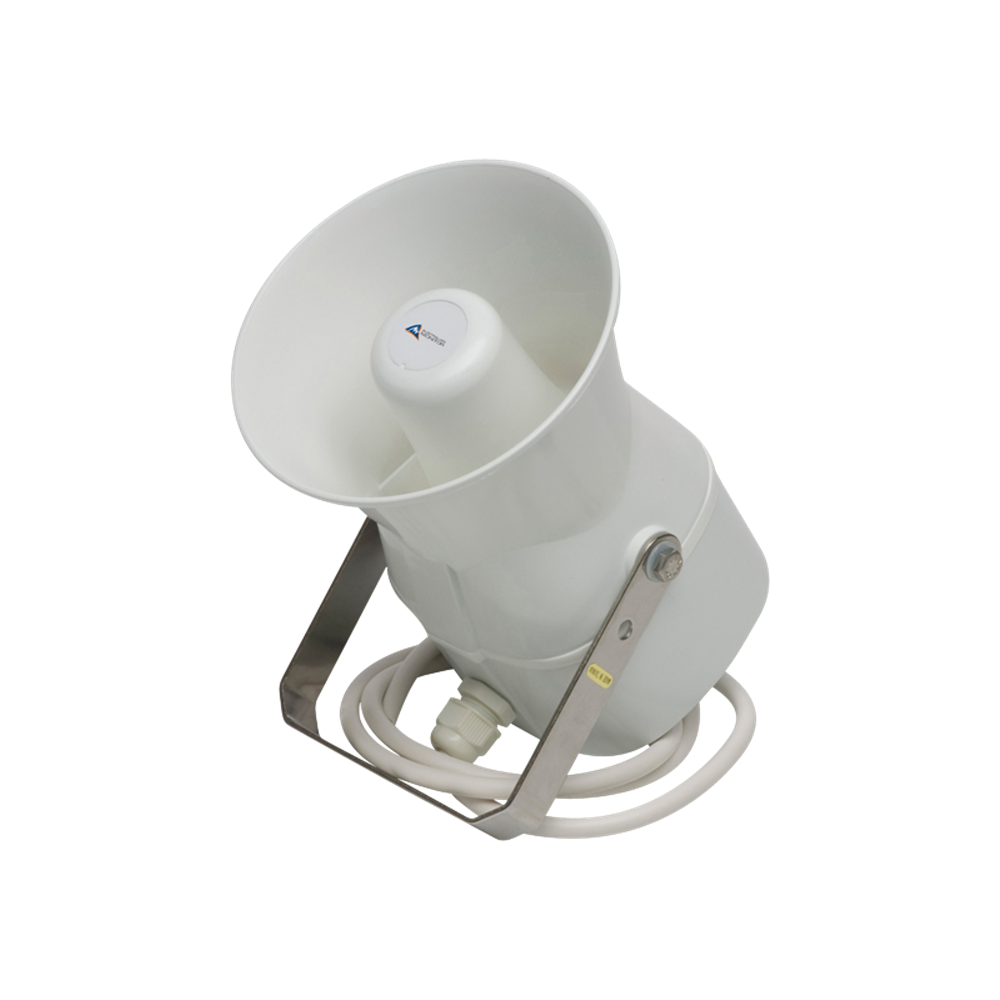

Horn Speaker 30W 100V Ip66 MPH5300 Australian Monitor

Product Code: AJ-MPH5300

Brand
Australian Monitor
RRP $372.90


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Australian Monitor
Speaker Type Horns and projectors
  • Details
  • Downloads

MPH5300


Horn
30W, IP66 Rated
Designed to deliver a high level of clarity from a rugged horn speaker, the MPH5300 will operate in adverse temperatures and weather environments.

  • Temperature range -30oC to +55oC
  • 30 watts power rating RMS
  • Power taps 30, 15, 7.5W
  • Frequency response 500 Hz – 7 kHz
  • 107dB SPL (1w/1m)
  • ABS construction
  • IP66 Rated Temperature range -30oC to +55oC 30 watts power rating RMS Frequency response 500 Hz – 7 kHz Adjustable wattage taps 30, 15, 7.5W 107 dB sensitivity (1W/1M) 100 degree dispersion 13cm bell, 16cm height 3.5kg ABS construction
  • 100 degree dispersion
  • 13cm bell, 16cm height
  • 3.5kg

Specifications

  • Form Factor: Horn
  • Max Continuous Power: 30W
  • Tappings: 30W-15W-7.5W
  • Max Program Power: Unspecified
  • IP Rating: IP66
  • Max Peak Power: Unspecified
  • EASE Model: Yes
  • SPL 1W/1m: 107dB
  • Powered: Passive
  • Max SPL RMS: 122dB
  • Driver Diameter: N/A
  • Max SPL Peak: Unspecified
  • Colour: White
  • Frequency Response (-3dB): 500Hz-7kHz
  • Warranty: 5 years
  • Dispersion: 100deg
  • Net Weight: 3.5 Kg
  • GTIN EAN: 9323383011076

Product Documents
