AV switching and distribution

This is a Special Order Item

Hdmi 1X4 Splitter W/ Scaling SP01044H2EXP Wyrestorm

Product Code: WY-SP01044H2EXP

Brand
Wyrestorm
RRP $269.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Splitters
  • Details
  • Downloads
  • Ordering

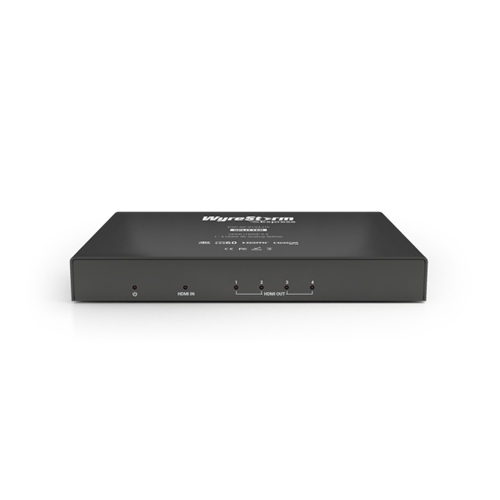

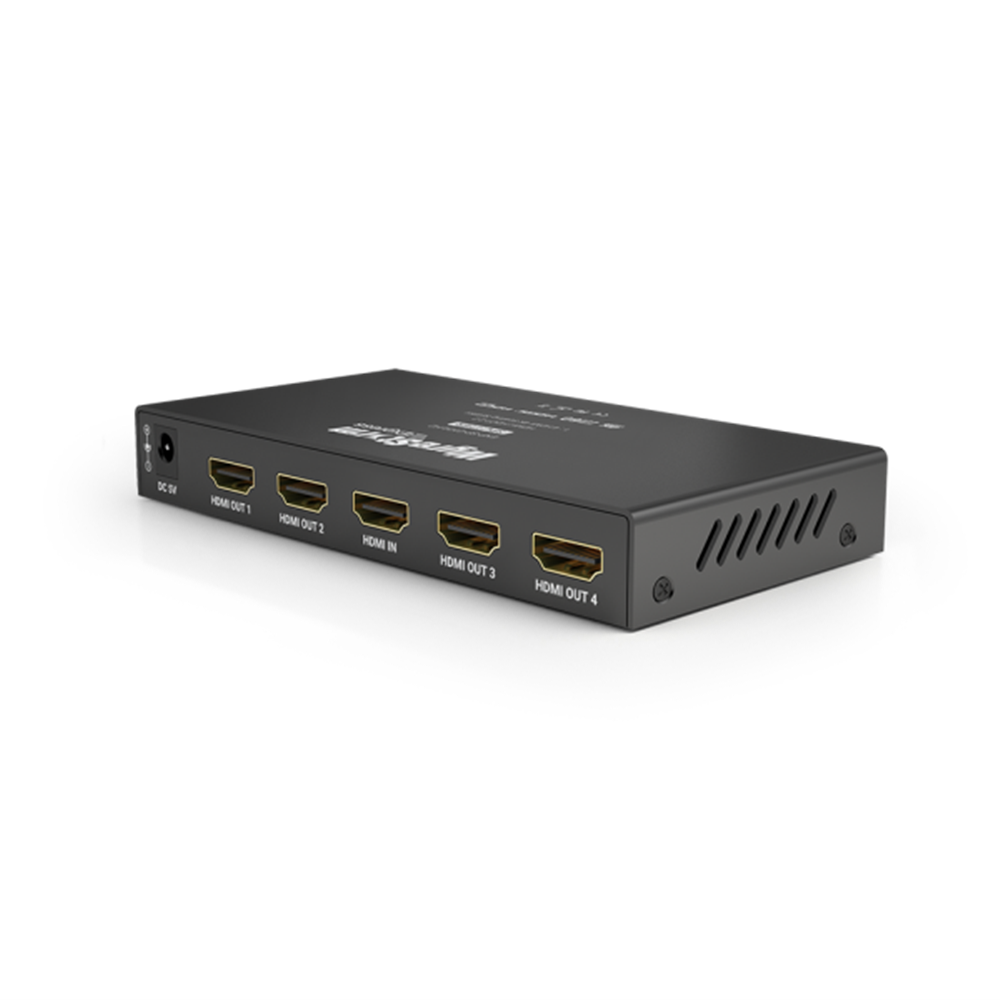

WyreStorm Essentials™ 4K60 1:4 Scaling HDMI Splitter

The latest addition to the WyreStorm Essentials splitter range, the EXP-SP-0104-H2 now offers H2 features and the same value and reliability found in its predecessor, not to mention a few new tricks up its sleeve! Upgrades to support of the full 18Gbps bandwidth HDMI 2.0 offers; 2160p@60Hz 4:4:4 and support for Dolby Vision™ included. As if that wasn’t enough, the EXP-SP-0104-H2 is now featuring a powerful built-in scaler, allowing users to simultaneously connect a mix of 4K and 1080p displays, which gives the source range to play to its fullest potential!

SCALING FROM 4K TO 1080P
With the EXP-SP-0104-H2, the user doesn’t have to give up 4K content when mixed resolution displays are present, as each output is capable of downscaling from 4K to 1080p without affecting the source!
Wyrestorm splitter

PLUG AND PLAY
WyreStorm’s variety of essential’s splitters offers lossless duplication and distribution of a single HDMI UHD or HD source to multiple outputs for a flexible and reliable solution supporting resolutions up to 4K. EDID and HDCP device communication are automatically negotiated, truly making a plug-and-play device.
Wryestorm Splitter

HDMI 2.0 VIDEO: MAXED OUT!
The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be split with the 0104-H2. Newly emerging 60Hz HDR-10 & Dolby Vision content can also be handled by this powerful device.

SLIM BY DESIGN
All of WyreStorm’s Essential’s splitters showcase a low profile, ultra slim chassis for greater installation convenience without giving up strength and quality. This allows the device to be installed under a table or desk for neat, discreet integration.



Features

  • Allows a transmission from a single HDMI audio/video device to be duplicated and simultaneously distributed to up to four HDMI display devices, such as TV, AVR, digital signage panel or digital projector
  • Supports 4K@60Hz 10bit 4:2:0 | 4:4:4 and HDR@24Hz 10bit BT.2020
  • Fully HDCP 2.2 compliant
  • Data rates up to 18Gbps
  • HDR and Dolby Vision support
  • Each HDMI output supports scaling down to 1080p
  • Automatic input cable equalization for signal regeneration
  • DTS-X and Dolby Atmos™ supported
  • Plug and play set up for easy installation – no set up / drivers / software required
  • Compact, durable design for unobtrusive installation

Specifications

AUDIO AND VIDEO
  • Inputs:    1x HDMI In 19-pin HDMI type A
  • Outputs:    4x HDMI Out 19-pin HDMI type A
  • Audio Formats:    2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
  • Video Resolutions (Max):
    • 1920x1080p @60Hz 12bit     15m/49ft
    • 1920x1080p @60Hz 16bit     7m/23ft
    • 3840x2160p @24Hz 10bit 4:2:0 HDR     5m/16ft
    • 3940x2160p @30Hz 8bit 4:4:4     7m/23ft
    • 3840x2160p @60Hz 10bit 4:2:0 HDR     5m/16ft
    • 4096x2160p @60Hz 8bit 4:2:0     7m/23ft
    • 4096x2160p @60Hz 8bit 4:4:4         5m/16ft
  • Supported Standards:    DCI | RGB |HDR | HDR10 | Dolby Vision up 30Hz | HLG | BT.2020
  • Maximum Pixel Clock:    600Mhz
COMMUNICATION AND CONTROL
  • HDMI:    HDCP 2.2 | EDID | DVI-D supported with adapter (not included)
POWER
  • Power Supply:    5V DC 1A
  • Max Power Consumption:    1.8W
ENVIRONMENTAL
  • Operating Temperature:    32°F ~ 113°F (0°C ~ 45°C)10% ~ 90%, non-condensing
  • StorageTemperature:    -4°F to ~ 158°F (-20°C ~ +70°C)10% ~ 90%, non-condensing
  • Maximum BTU:    6.14 BTU/hr
DIMENSIONS & WEIGHT
  • Rack Units/Wall Box:    <1U
  • Height:    20mm/0.79in
  • Width:    140mm/5.5in
  • Depth:    65.2mm/2.57in
  • Weight:    0.24kg/0.53lbs
REGULATORY
  • Safety and Emission:    CE | FCC | RoHS | RCM
