GSS 5GV three axis vibration monitor

600 070 000 (NT-GSS-5GV)

Brand
NTI
RRP P.O.A.


Unit of Measure
EACH



1 Year
Features

At a glance

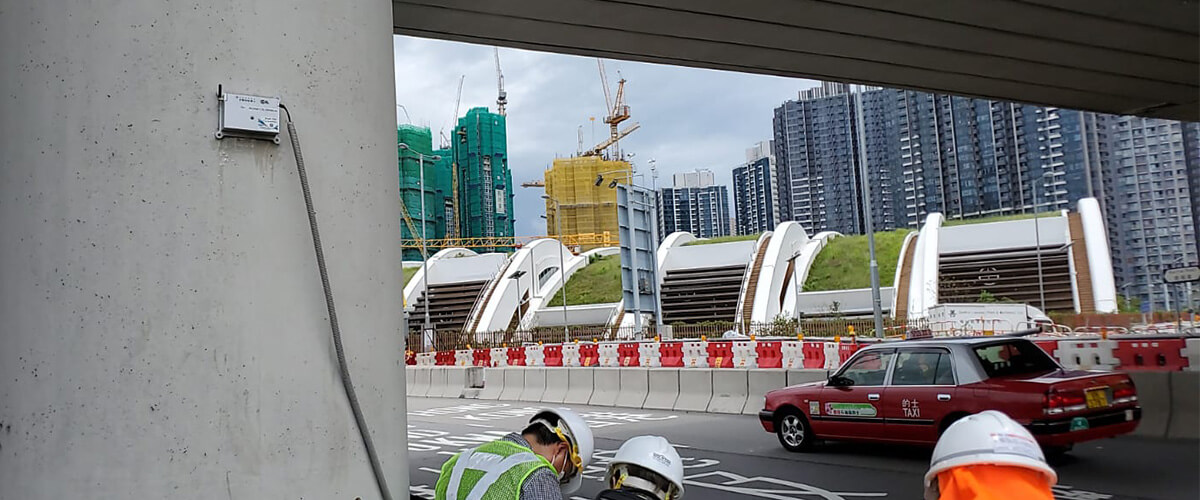

  • Structural Health Monitoring – Construction Sites,  Buildings, Tunnels, Bridges
  • Blast, Foundation and Large and Remote Area Monitoring
  • Reduce site visits through long battery life
  • Quick installation and remote management
  • Designed to meet the most demanding vibration requirements
Technical Specifications
Brands NTi Audio
Application Vibration
  • Details
  • Downloads
  • Ordering

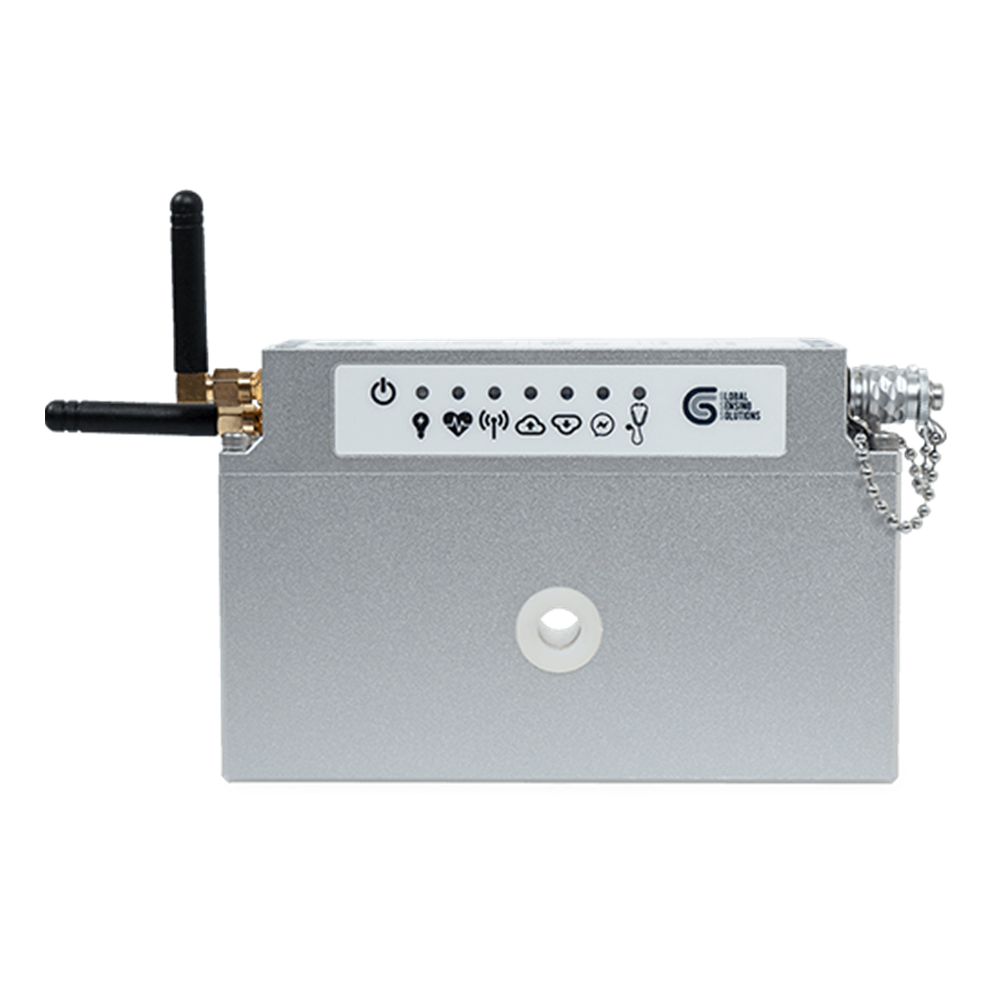

GSS 5GV Vibration Monitor


Autonomous. Connected. Reliable.

  • Three-axis vibration monitor
  • One device for vibration and tilt
  • Auto-orientation (Z-axis follows gravity)
  • Flexible integration into backend system

The GSS 5GV is a cutting-edge MEMS Vibration and Tilt monitor that boasts exceptional precision and an integrated 3G/4G gateway (with an optional Wi-Fi gateway), making it the ideal solution for a wide range of industries. Its user-friendly design ensures that it is easy to configure, install, and manage remotely, reducing the need for time-consuming on-site visits. Thanks to its low-power design and external power options, the 5GV minimizes maintenance activities.


Overview

  • The 5GV’s integrated gateway offers support for multiple export formats, file naming conventions, and transfer protocols, giving you complete control over your data
  • Easy and fast installation
  • Remotely Managed and Configured via SMS or MQTT
  • Locally managed by Android app via Bluetooth or PC software via USB
  • The integrated 3G/4G/LTE Communication Module provides essential connectivity, while the Wi-Fi Communication Module serves as an optional accessory, offering flexibility and convenience in installations with Wi-Fi
  • Real-time MQTT or SMS Event Alerts, as well as FTP or HTTP data uploads
  • User can set the PPV/DF reporting interval from 30 seconds to 1 hour (PPV/DF is calculated at this time)
  • Battery consumption:
    • Up to 6 months in low-power mode - PPV/DF data is pushed through the 4G modem every 4 hours
    • Up to 3 months in real-time MQTT mode - PPV/DF data is pushed through the 4G modem in real time (every 30 seconds up to every 1 hour depending on the user reporting interval set)



Design

The 5GV is a high-performance, versatile vibration and tilt monitoring sensor designed to withstand harsh environments and various applications. The 5GV meets the most demanding vibration requirements, being a reliable and affordable solution for purpose-built modular communications - choose the best for your site, helping to improve safety, efficiency, and productivity. With quick installation, remote management, long battery life, and user-defined alert thresholds, the 5GV is designed to reduce the number of visits to the site.

In addition, the 5GV Vibration Monitor is IP67 certified, which means that the monitor is protected from contact with harmful dust, and is water-resistant - protected from immersion in water with a depth of up to 1 meter (3.3 feet) for up to 30 mins.


Complying to Standards

  • Conformance with DIN 45669-1
  • Structural Monitoring:
    • Peak Particle Velocity (mm/s)
    • Peak Vector Sum (mm/s)
    • Threshold alerts and historical trend readings
  • Human response:
    • Acceleration 1/3 octave spectrum, Vibration Dose Values (VDV), and acceleration total value Aw(t)
    • Threshold alerts and historical trend readings
