Microphones

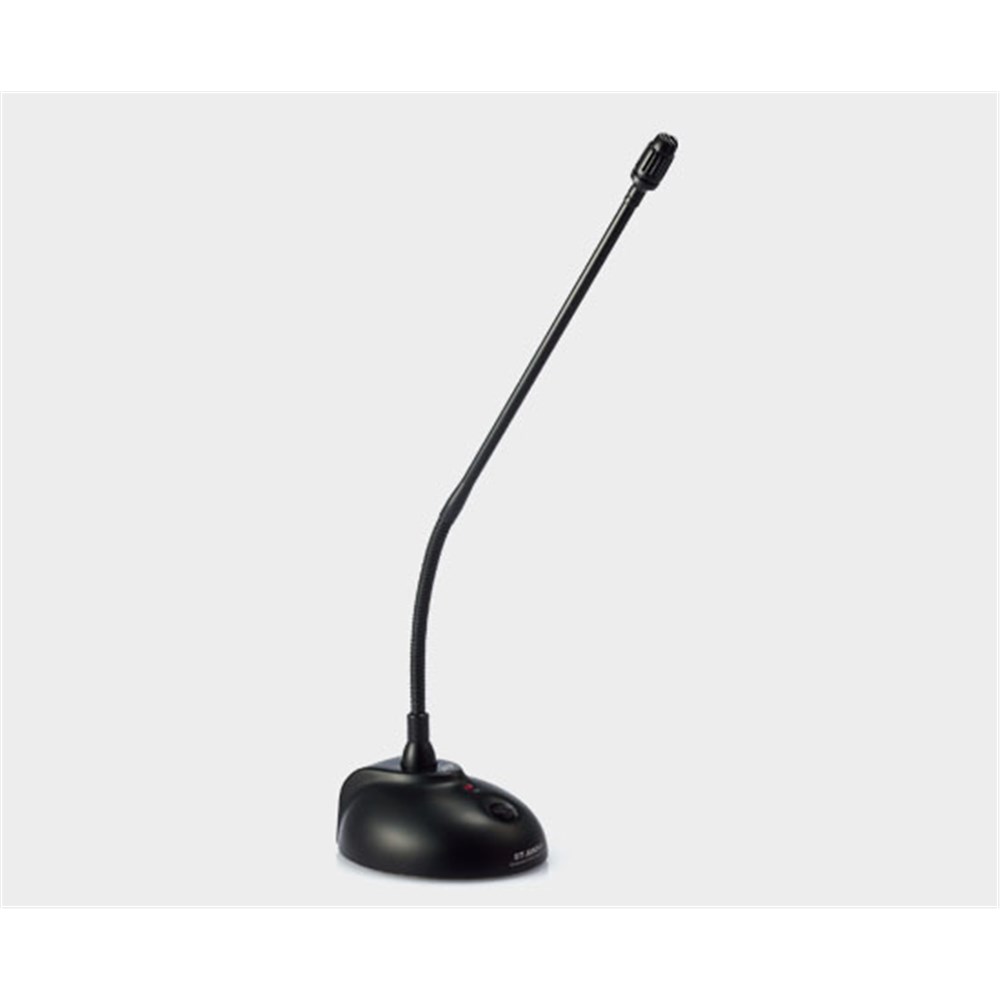

Gooseneck mic on heavy base push on/push off switch

Product Code: JP-ST5000

Brand
JTS
RRP $139.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

ST-5000

The ST-5000 is the easiest gooseneck mic can be found. Designed with Push ON/Push Off switch and XLR male output it meets basic requirements for all installed applications.

  • Supercardioid pick up pattern
  • Push ON/OFF
  • LED indicator
  • Balanced XLR male output



SPECIFICATIONS


Type

  • Back Electret Condenser

Frequency Response

  • 80~18,000Hz

Polar Pattern

  • Supercardioid

Output Level(at 1,000Hz)

  • -60±3 dB* (1mV)*0dB=1V /μbar

Impedance

  • 220Ω

Max. SPL For 1% T.H.D.

  • 125dB

Current Consumption

  • ≤5.8mA

Output Connector

  • XLR-M type(power module)

Power Supply

  • 12-48 VDC Phantom power

Switch

  • Push ON/OFF

Gooseneck Length

  • 368mm

Base Dimension

  • 96mm(W)*46mm(H)*113mm(D)

Net Weight

  • 541 grams
