FR1-SOLARO

Deliver premium collaboration experiences without the cost. Solaro FR1 is a 1U 16-card-slot DSP with modular I/O functionality that can evolve to meet your future requirements, while benefiting from the processing power to drive multiple rooms over an installed CatX network. Xilica's open-architecture digital signal processor can be populated with any combination of Solaro Series I/O card, offering capabilities including analog audio, USB (with volume/mute HID support), GPIO, relay control and AES/EBU digital audio. With the capability to grow as you need, Solaro FR1 is a multi-purpose, scalable signal processor suited to most medium-to-large applications including multi-room conferencing, education spaces, and mass communication.

Solaro FR1 is not compatible with legacy Touch SM7 or Mini Series controls, nor is it recommended to develop a networked system with both FR1 and Neutrino products.

BENEFITS

  • Deliver a premium collaboration experience at lower cost through centralized processing of multiple rooms using an existing installed CatX network.

  • Support BYOD in collaboration spaces with Gio USB and Gio Bluetooth connectivity, and create a superior user-experience with Microsoft Teams mute/volume sync for USB peripherals.

  • Eliminate third-party control systems with no-code programming and leverage pre-built DSP designs for turn-key deployment.

  • Lower total-cost-of-ownership with agile, modular I/O that scales to meet functional demand.

  • Harness Xilica HearClear™ acoustic echo cancellation to eliminate noise and echo in conferencing.

TECHNICAL SPECIFICATIONS

  • Electrical
    • THD+N (22Hz to 22kHz) 0.002% (1kHz @ +4dBu)
    • EIN <125dBu, unweighted (20Hz to 20kHz)
    • Dynamic Range 110dB, unweighted
    • Propagation Delay 4ms
    • Crosstalk, input to input, 1kHz <110dB
    • Sampling Rate 48kHz
    • A/D-D/A Converters 32-bit
    • Acoustic Echo Cancellation Requires HearClear™ license; 250ms latency at eight channels, 100ms at 16 channels
    • BTU/Heat Load 205 BTU/hr
    • Processor Type 40-bit floating point
    • Phantom Power +48VDC (with XC-SML)
    • Power Supply 90-240 VAC (50-60Hz) via internal power supply with IEC socket
    • Power Consumption <60W
    • Ambient Operating Temperature 32-104°F (0–40°C)
    • Humidity 0–98%, non-condensing
    • Altitude 0-6,600 feet (0–2000 Meters) MSL
    • Network Connections
      • Without XC-CTODN: 1x RJ45 (≥Cat 5e) for control.
      • With XC-CTODN: 3x RJ45 (≥Cat 5e) including dual dedicated 1000Mbps
      • Dante™ connections and separate Ethernet port for control
    • USB (with XC-SUB)
      • Bit depth: 16-bit
      • Number of channels: 2x2, send and receive
      • Driver sample rate: 48kHz
      • Card sample rate: follows DSP settings
      • Connector: USB B, female
    • Dante™ Requires XC-CTODN; 64x64 bi-directional (primary, secondary) with dual NIC; AES67
  • Mechanical
    • Card Slots 16 user-configurable

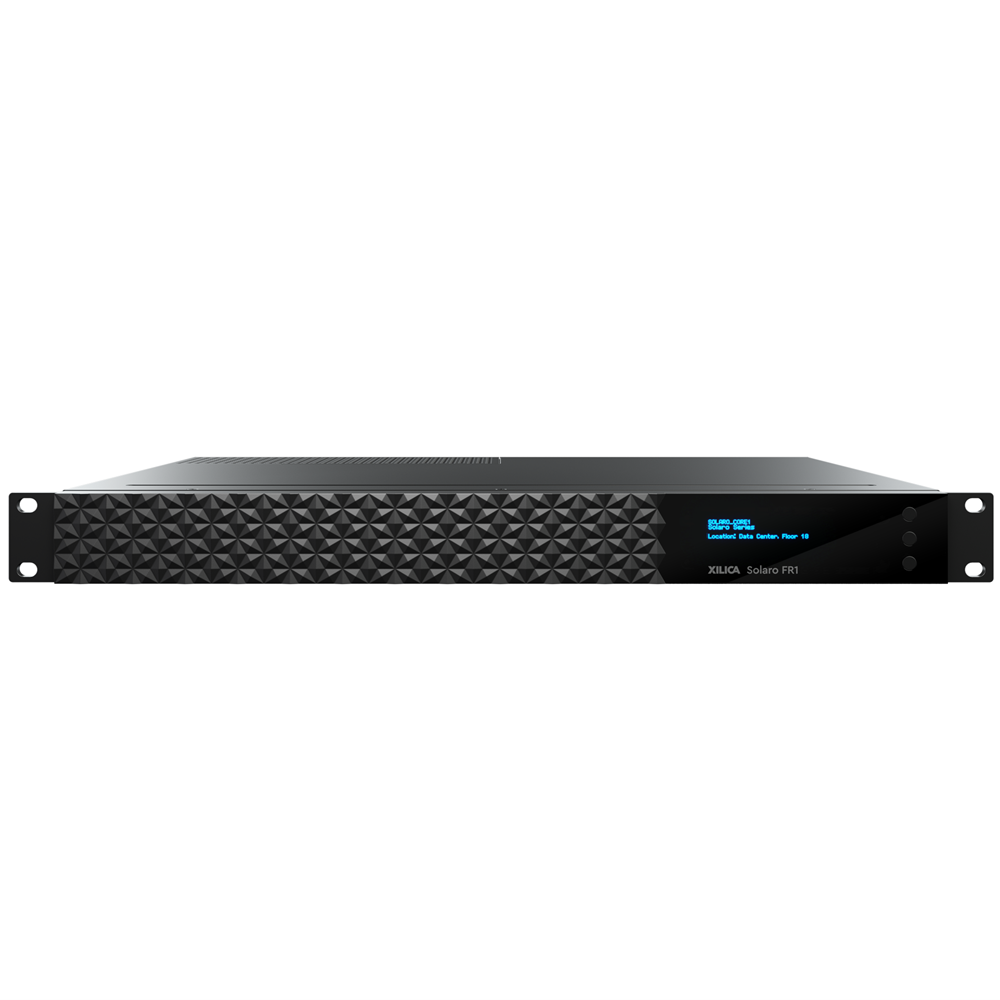

    • Display(s) Single OLED display at front of device
    • Controls, Service & Indicators Up/Select/Down buttons. Recessed IP reset. Factory service micro-USB.
    • Weight 11lbs; 5kg
    • Dimensions
      • Height: 1.75" / 44mm
      • Width: 19" / 483mm
      • Depth: 12" / 305mm
    • Mounting Standard 19" rack; occupies 1U
  • General
  • Compliance CE, FCC Part 15B, Industry Canada ICES-003:7, Intertek ETL (US, CA), RoHS, REACH
  • Warranty Xilica Five Year Limited Warranty
  • Part Number(s) 2200-001-0104 (FR1, without XC-CTODN); 2200-001-0105 (FR1-D, with XC-CTODN)
