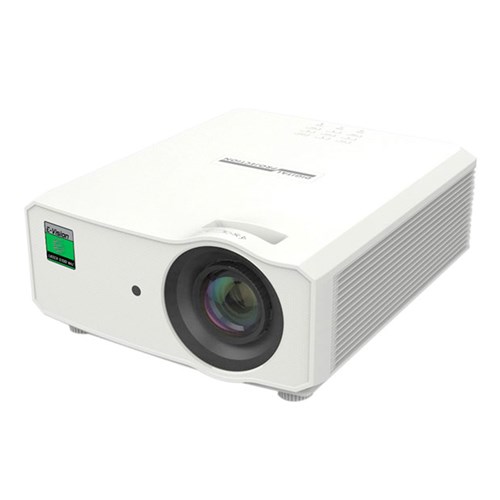

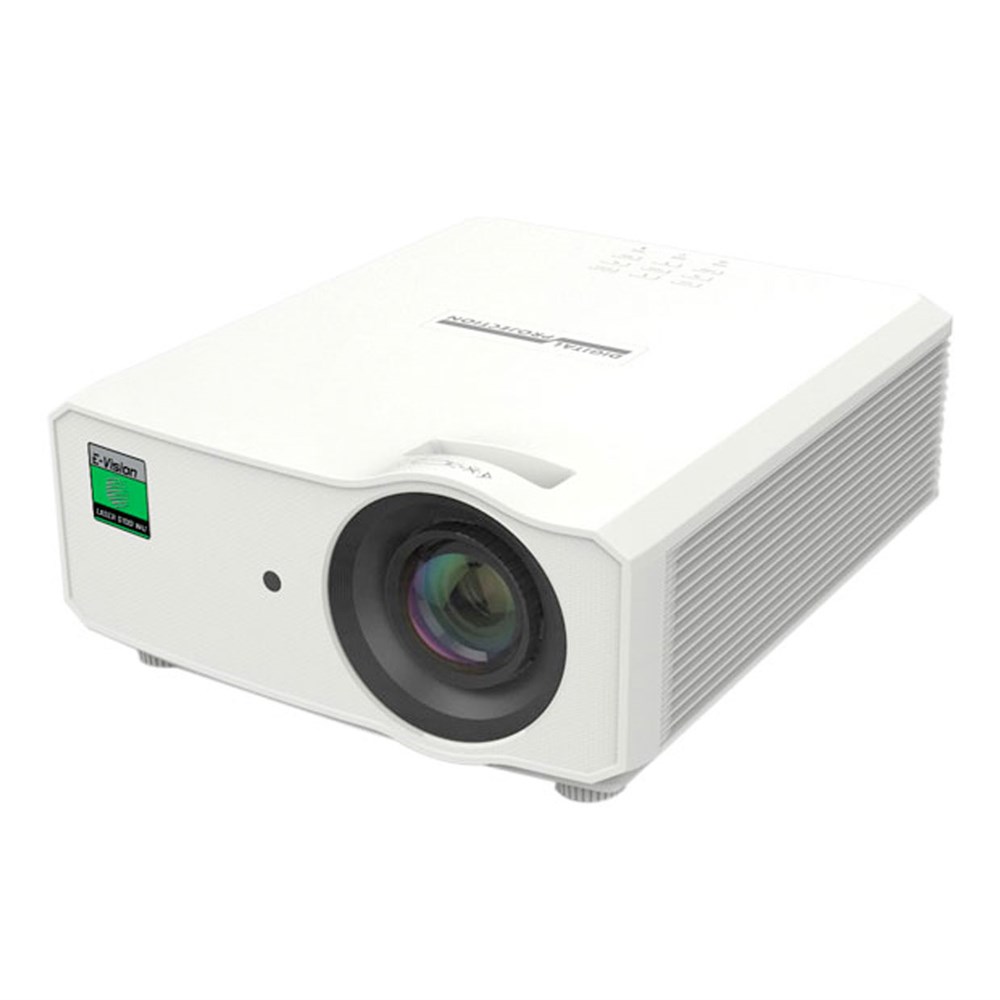

E-Vision 6110-WU

Exceptional Value & Class Leading Performance 1-DLP Laser Projectors

Incredibly budget-friendly laser projector
Compact and powerful, the E-Vision 6110-WU delivers an impressive 6,100 lumens and weighs in at only 12Kg, and offers a very quiet operation noise of only 39 dBA. This single chip DLP Laser projector offers 20,000 hours of stable and near-maintenance free illumination.

The E-Vision 6110WU projector includes an ultra short-throw 0.5:1 fixed lens with a 0.6 offset, allowing it to be mounted well above the screen and out of the line of sight of viewers. This lens option makes it an impressively compact, entry-level imaging solution ideal for museums, lecture theatres, corporate boardrooms, digital signage and similar applications needing bright imagery at remarkably accessible price points.

With a multitude of connectivity options and a packed feature list of video and graphics processing, this projector also offers 10-bit colour display and a 4 Segment (RGBY) Colour wheel, ensuring excellent colour reproduction.

Key Features

• 6,100 ISO / 5,500 ANSI Lumens
• Contrast Ratio: 2,200:1 Native, 20,000:1 Dynamic, 500,000:1 (Advanced Black)
• Part Number: 123-844

Key Specifications

• Colour System:    Laser Phosphor
• Display Type:    1 x 0.67" DarkChip™ DMD™
• DMD Specification:
  • 1920 x 1200 pixels native resolution.
  • Fast transit pixels for smooth greyscale and improved contrast.
• Aspect Ratio:    16x10
• Key Features:
  • Video & Graphics Processing
    • HDMI 1.4a mandatory compliance for Side by Side, Frame Packing, Frame Sequential and TopBottom 3D Formats.
    • Synchronisation of active glasses or polarising switcher.
    • DICOM simulation mode
  • Geometry Correction
    • Vertical & Horizontal Keystone correction
    • Four Corner adjustment
    • Selectable aspect ratios: Fill, 4:3, 16:9, Letter Box, Native, 2.35:1
    • Digital Zoom +10 / -10
  • HDBaseT Interface
    • Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
    • Allows the projector to be placed up to 100m from the source with low cost cabling.
    • HDBaseT® Includes Audio, Ethernet 100BaseT and RS232/IR control.
  • Colour Processing
    • Phosphor wheel: 3 Segment GBY 2 x 7200rpm
    • Colour wheel: 4 Segment RGBW 2 x 7200rpm
    • 10-bit colour processing (30-bits per pixel)
    • Powerful seven point colour correction for accurate colour matching.
  • Source Compatibility
    • Graphics standards up to 1920 x 1200 resolution at 60Hz
• Inputs/Outputs
  • HDMI 1.4a X 3
  • HDBaseT-(LAN/HDBaseT) x 1
  • VGA / Analog RGB x 1
  • VGA Monitor out x 1
  • Composite Video x 1
  • Microphone In x 1
  • Audio L/R In x 1
  • Audio L/R In x 1
  • Audio L/R Out x 1
• Communication & Control
  • 3D Sync Out x 1
  • LAN x 1
  • HDBaseT with Ethernet \ RS232 x 1
  • \IR control x 1
  • Serial RS-232C (In/Out) x 1
  • Service USB x 1
  • USB Power out 5V/1.5A x 1
  • 3D Formats Supported
    • Frame Packing
    • Frame Sequential
    • Side By Side (half)
    • Top and Bottom
  • HDTV Formats Supported    SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N), SECAM (B,D,G,K,K1,L)
  • Computer Compatibility    VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
  • Remote Control    IR remote control
  • Automation Control
    • LAN
    • RS-232
    • Alert Mail for Projector
    • LAN Control-Crestron® Roomview™-Connected
    • LAN Control-Crestron® eControl
    • LAN control - Extron®
    • LAN Control-PJ Link compatible
    • LAN Control-AMX® SSDP
    • LAN to RS232 (RS232 by Telnet)
    • Concurrence Control for RS232/LAN
    • PJ Link (Class 1)
  • Colour Temperature:    Warm / Normal / Cold
  • illumination Type:    Laser Light Source
  • Typical illumination Life:    20,000 hours
  • Lens Mount:    Manual focus
  • Mechanical Mounting:
    • Front/Rear
    • Front/Rear Ceiling
    • Two adjustable front feet, 10° (43mm)
    • Ceiling Mount compatible chassis with 7 off M4 mounting holes
    • Kensington® Security Slot
  • Orientation
    • Table Top or Inverted: Yes
    • Pointing Up:        Yes
    • Pointing Down:   Yes
    • Roll (Portrait):      Yes
  • Power Requirements:    100-240VAC 50/60Hz single phase
  • Power Consumption:    515W @ 230VAC (100% Normal mode) Maximum 530W @ 100VAC (100% Normal mode) Maximum
  • Thermal Dissipatio:n    1757 BTU/Hour @ 230VAC (100% Normal mode) 1808 BTU/Hour @ 100VAC (100% Normal mode)
  • Fan Noise:    Normal Mode Typ: 39 dBA
  • Operating/Storage Temperature:
    • Operating: 0° to 40°C (32F to 104F)
    • Storage: -20° to 60°C (-4F to 140F)
  • Operating Humidity:    10 to 85% non-condensing
  • Weight:    12 kg / 26.45 lbs
  • Dimensions:
    • L: 43.71 cm W: 36.0 cm H: 17.83 cm
    • L: 17.2 in W: 14.17 in H: 7.02 in
