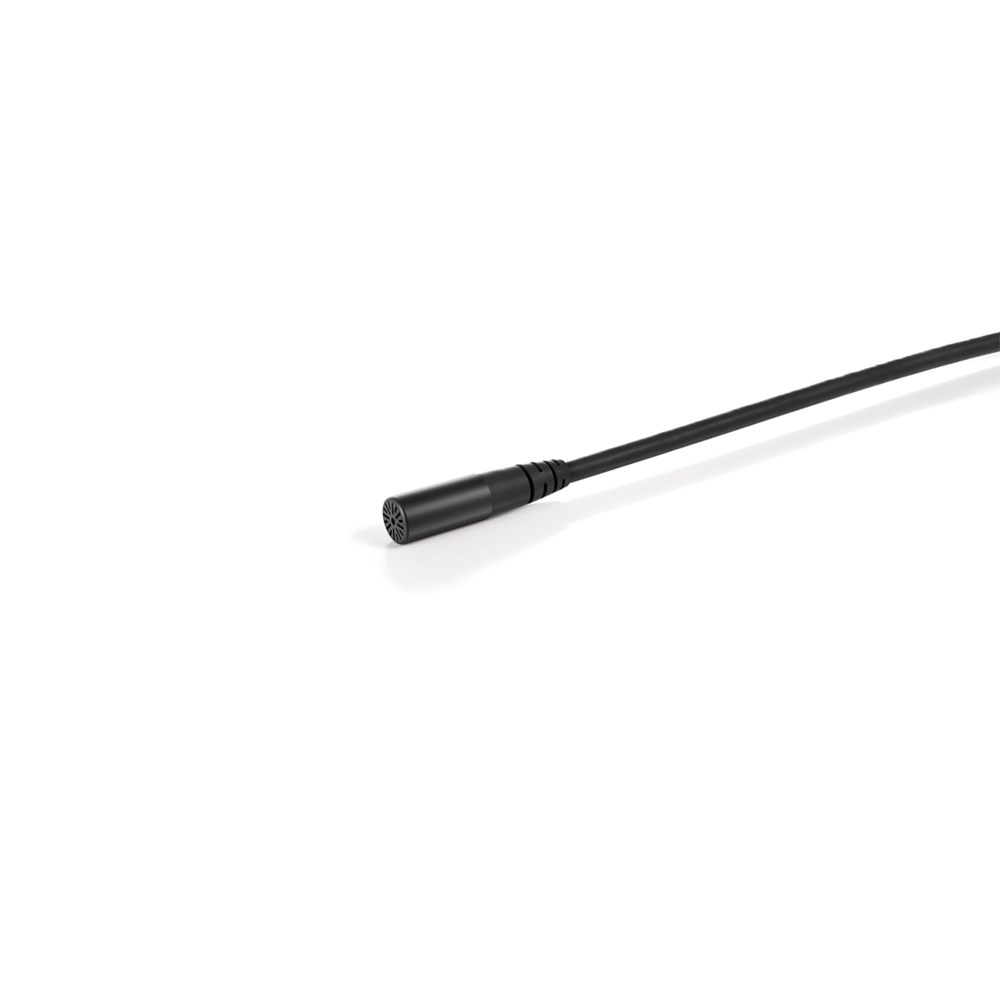

6060 Series Subminiature Microphone

• SOUND PRESSURE LEVEL (SPL): Normal SPL (6060/4060/4660)
• COLOUR: Black
• WIRED OR WIRELESS: 3 Pin Lemo
• ACCESSORIES: Microphone Grid for 6060/6061/6066 (DUA9301-B, DUA9301-F, DUA9301-C, DUA9301-W)

A submini unlike any other

• Amazing 3 mm CORE capsule technology
• Renowned DPA sound in a 60% smaller package
• Stainless steel, PVD-coated mic housing
• Modular adapter system fits most professional wireless systems

6060 CORE Subminiature Lavalier Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger,  award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
• Sensitivity, nominal, ±2.4 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 24 dB(A) re. 20 μPa (max. 26 dB(A))
• Distortion, THD < 1%: 123 dB SPL RMS, 126 dB SPL peak
• Dynamic range: Typ. 102 dB
• Max. SPL, THD 10%: 134 dB SPL peak
• Rated output impedance: 30 - 40 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
• Power supply (for full performance):
  • For wireless systems: Min. 5 V - max. 10 V through DPA adapter
  • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
• Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
• Colour: Black, beige, brown or white
• Weight: 8 g (0.29 oz) incl. Cable and MicroDot connector
• Microphone head size (h x w x d): 3.4 / 14.4 mm (0.13 / 0.57 in)
• Capsule diameter: 3 mm (0.12 in)
• Cable length: 1.8 m (5.9 ft)
• Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
