DPA Microphones

This is a Special Order Item

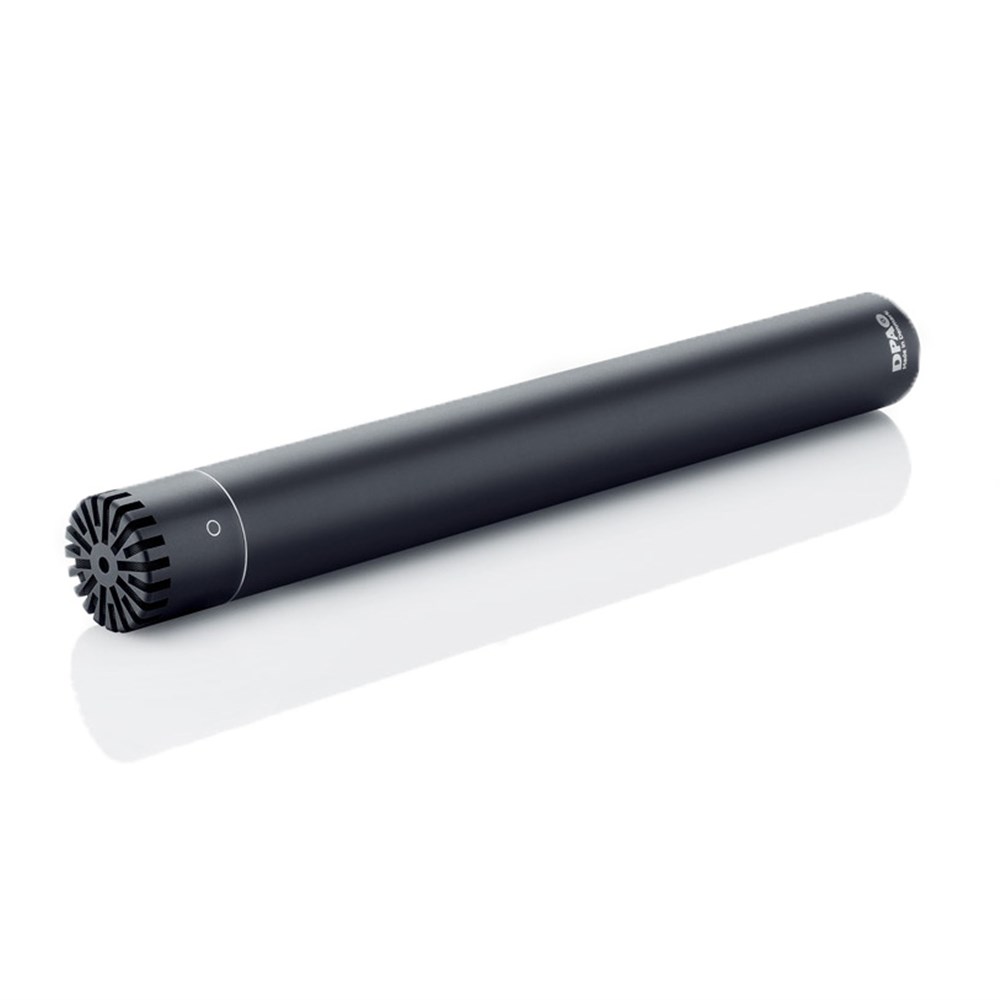

DPA d:dicate™ 2006A Twin Diaphragm Omni Mic

Product Code: DP-2006A

Brand
DPA Microphones
RRP $2,189.00


Unit of Measure
EACH


2 Year
Features

Distinctive, well-balanced sound

  • Acoustic authenticity
  • Linear throughout a large frequency bandwidth
  • Twin-Diaphragm Capsule Technology
  • Modular flexibility

Our unique d:dicate™Twin Diaphragm Omni Mic Capsule is at the heart of these amazing microphones. This capsule gives the mic a distinctive, well-balanced sound and bridges the gap between the extreme sound quality of the d:dicate™ Recording Microphone Series and our well-known d:screet™ Miniature Microphone Series.

Technical Specifications
Brands DPA Microphones
Series d:dicate
  • Details
  • Downloads
Specifications

Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser, Twin Diaphragm Capsule
Frequency range 20 Hz - 20 kHz
Frequency range, ±2 dB 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
Sensitivity, nominal, ±2 dB at 1 kHz 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 28 dB (max. 30 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 78 dB(A)
Total harmonic distortion (THD) < 1% up to 130 dB SPL peak
Dynamic range Typ. 114 dB
Max. SPL, peak before clipping 146 dB
Switchable attenuator, filters etc. 0 dB / -20 dB
Output impedance 200 Ω
Minimum load impedance 2 kΩ
Cable drive capability 100 m (328 ft)
Output balance principle Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) > 60 dB
Power supply (for full performance) 48 V Phantom power (± 4 V)
Current consumption 2.8 mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color Matte black
Weight 160 g
Microphone diameter 19 mm (0.75 in)
Microphone length 164 mm (6.5 in)
Maximum output voltage, RMS 8 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
