Sonamp Digital Input Module

When paired with a Sonamp DSP Amplifier, the DIM allows for a direct connection to a digital source ensuring the signal passes through the sophisticated 24 bit/96kHz capable DAC with the shortest signal path possible & at the highest performance level.
Directly connect digital audio sources, eliminating the need for external DACs, preamps/switchers & addtional wiring. Saves rack space and installation time.
Plug & play. No firmware updates or special settings in SONARC are necessary.

• Compatible with DSP-2-150, DSP-8-130 & DSP-2-750
• Input Signal: PCM Audio (not compatible with 5.1 / 7.1 surround signal)
• Bit Rate: 16 - 24 bit
• Sample Frequency: 44.1 - 96kHz

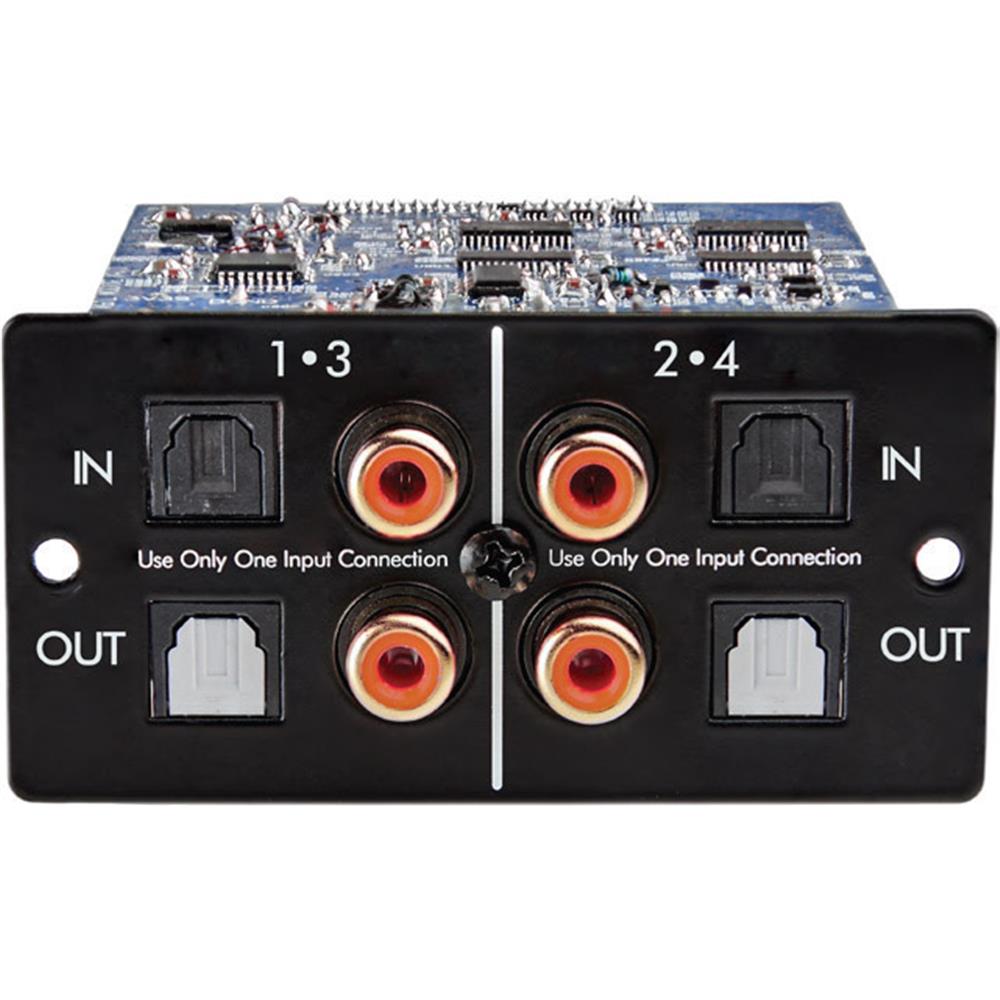

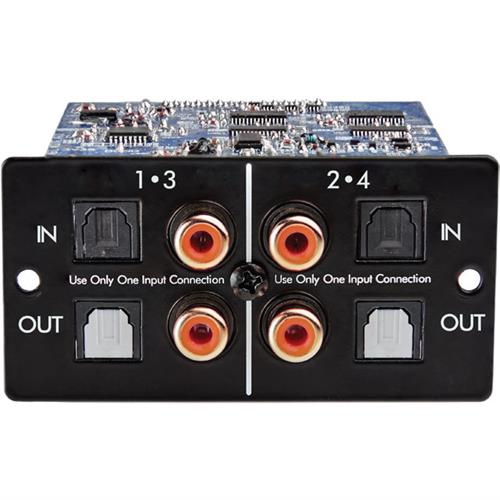

• Input 1: Toslink optical digital or Coaxial digital (only one can be used)
• Loop Output 1: Buffered Toslink optical or Coaxial digital
• Input 2: Toslink optical digital or Coaxial digital (only one can be used)
• Loop Output 2: Buffered Toslink optical or Coaxial digital

Features and Benefits

Performance

• When paired with a Sonance DSP amplifier, allows for playback of up to 24 bit/96 kHz audio content ensuring the highest performance possible from a distributed audio system.
• Audiophile grade components maintain a pristine audio signal in the digital domain from input stage through DSP phase for no compromise performance.

Simplicity

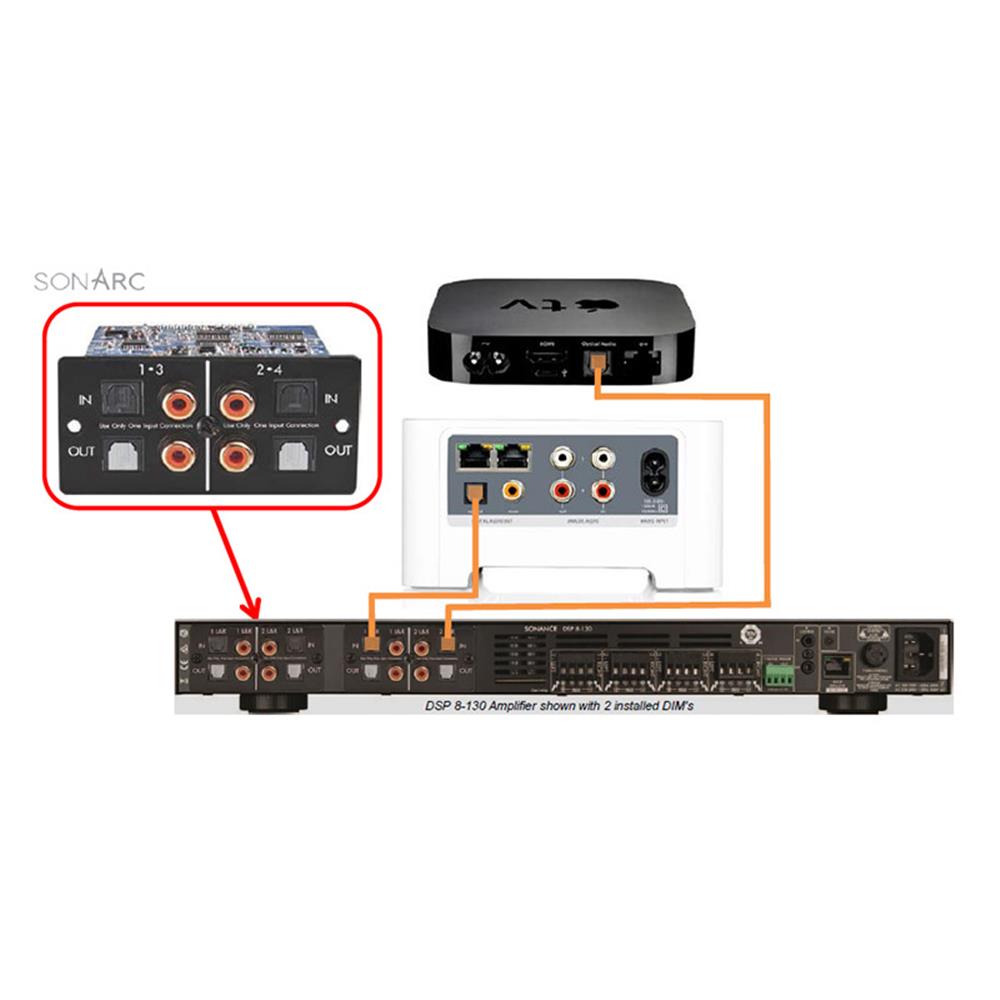

• Directly connect digital audio sources to Sonance DSP amplifiers eliminating the need for external DACs, preamps/switchers & additional wiring saving rack space & installation time.
• Simple rear-panel installation. Simply remove two screws, install the DIM & connect a digital source.
• Plug & play. No firmware updates or special settings in are necessary.
