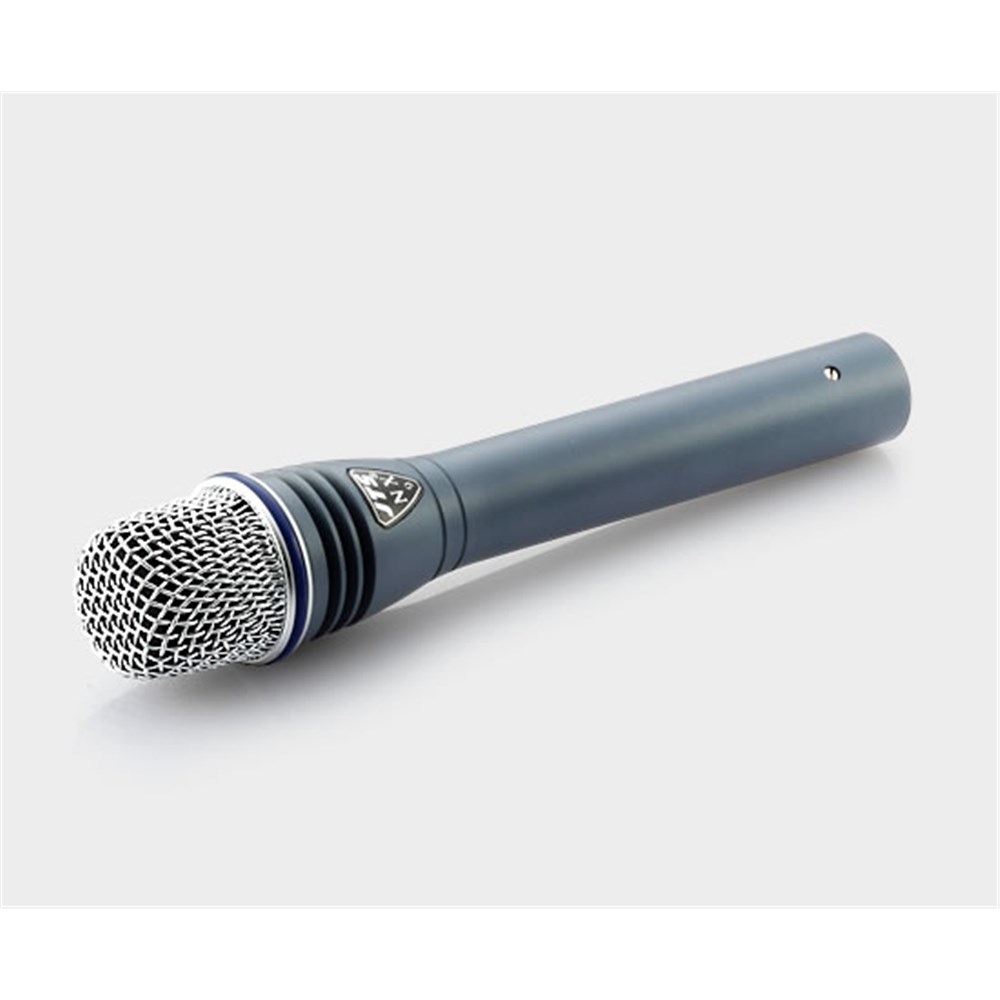

NX-9

The NX-9 is innovated for overheads, hi-hat, acoustic guitar and other instruments. The NX-9 provides extended frequency response and enlarged dynamic range. It delivers smooth and transparent reproduction.

SPECIFICATIONS

Type

• Electret Condenser

Frequency Response

• 60~18,000 Hz

Polar Pattern

• Cardioid,rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity(at 1,000Hz)

• -70dB*(0.32mV)*0dB=1V/μbar

Output Impedance

• 400Ω

Phasing

• Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Connector

• Three-pin professional audio connector (male XLR type)

Case

• Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille

Net Weight

• 230 grams (8.1 oz)

Touch Noise.

• Super low

Power Supply

• 9-52V phantom power or battery 1.5V AA
