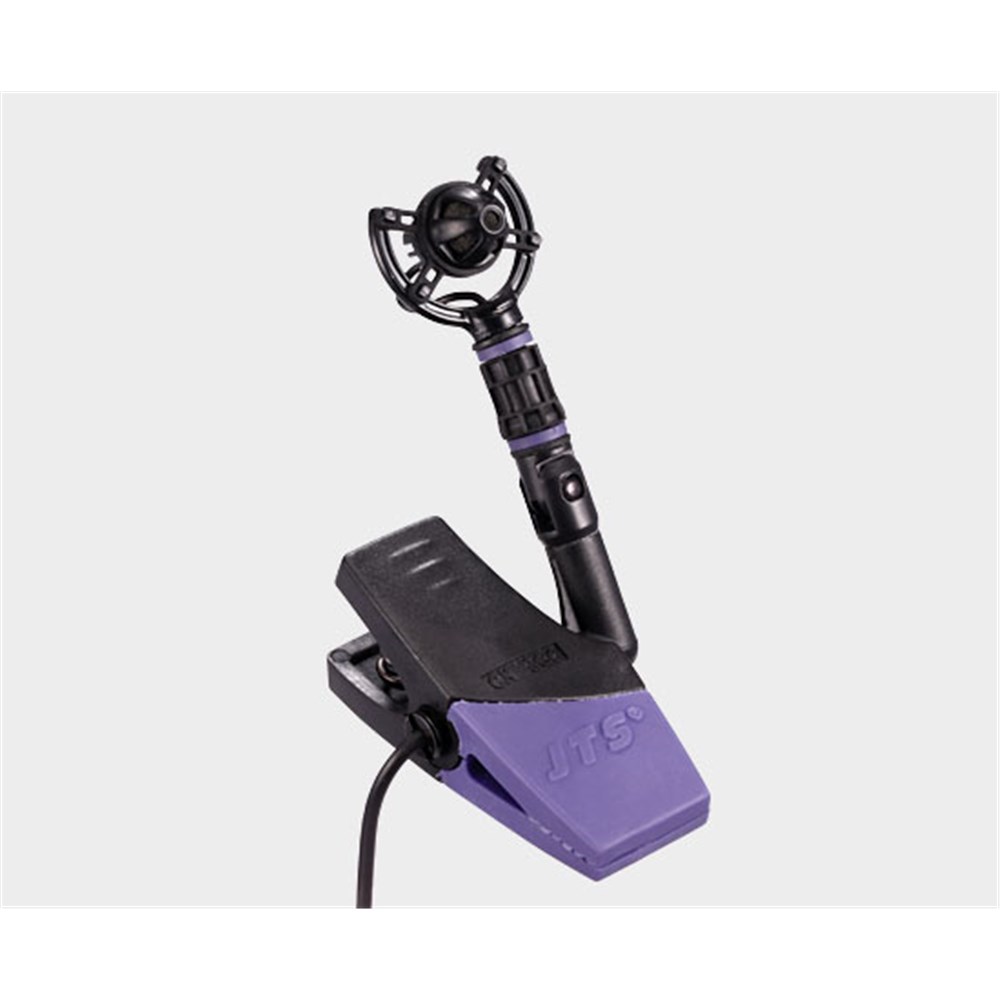

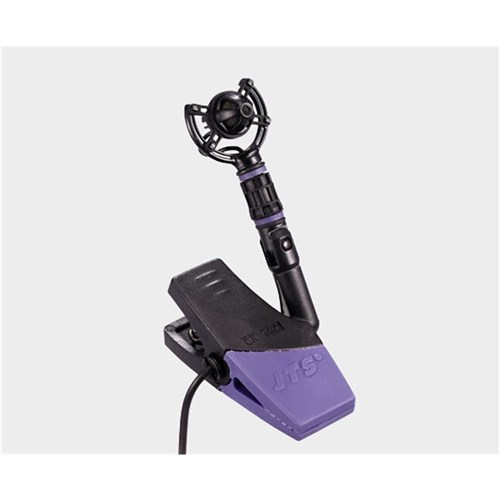

CX-506

With a smooth uniform frequency response, the JTS CX-506 is optimized for use with drums and percussion instruments.

• The unique design and miniature profile provides for minimal physical size interference for the musician.
• Low noise electronic circuitry together with balanced output provides isolation from ambient noise.
• The shock mount clamp greatly reduces extraneous mechanical noise and ensures secure mounting on drum rims, percussion instruments, and cymbal stands in either a horizontal or vertical position.
• Excellent natural reproduction of drums and percussion, accurately and purely without coloration.
• Newly added spider suspension isolates unwanted mechanical vibration effectively.

SPECIFICATIONS

Type

• Electret Condenser

Frequency Response

• 50~18,000 Hz

Polar Pattern

• Cardioid

Sensitivity(at 1,000Hz)

• -64dB*(0.63mV) at 1,000 Hz

Output Impedance

• 220Ω ± 30%

Max. SPL for 1% THD

• 130 dB

Output connector

• 3P. XLR (M) type

Net Weight

• Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille

Net Weight

• 230 grams (8.1 oz)

Touch Noise.

• Super low

Power Supply

• 9-52V phantom power
