Audio signal cables

Star Quad Microphone cable Yellow 100m

Product Code: CA-L-4E6S-Y100

Brand
Canare
RRP $420.00

Unit of Measure
EACH



1 Year
Technical Specifications
Brands Canare
Bulk Cable Type Star Quad
  • Details
  • Downloads

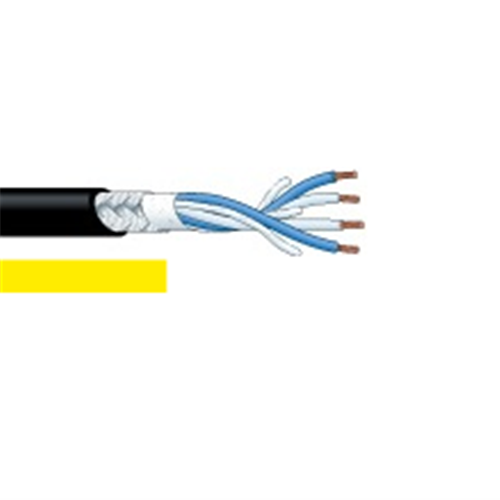

Star Quad Microphone Cable - L-4E6S


The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Available in 10 beautiful matte finish color jackets.

The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing.

Model

Std.
Lng.

ft.

(m)

Wt
Std.
Lng.
lbs

(kgs)

Nom.
O.D.

in.
(mm)

Jacket
Nom.
Thick.

in.
(mm)

Brittle
Point


(C°)

No.
of
Cond.

Insul.

Type*
Thick
mil

Cond-AWG
(Qty./mil)
Cross Sec.
Area
mil.²
**Quad
AWG

Pitch
Twist
Quad

in.
(mm)

Shield
Cover-
age

Cond.
D.C.R.

ohm/1000ft
(ohm/100m)

Shield
D.C.R.

ohm/1000ft
(ohm/100m)

Nom.
Cap.
***
pF/m
Nom.
Cap.

pF/m

Nom.
Imp.

(ohm)

Nom.
Atten.

V/1000ft
(V/100m)

Group
Delay
Time
nS/ft
(nS/m)
L-4E6S

656
(200)

1000
(305)

24
(11)

35
(16)

.236
(6.00)
PVC
.044
(1.12)
-56
(-49)
4
2 Blue
2 Wht
IPE
15.7
AC - #24
40/3.15
310
#21
.79
(20)
>95%
TAC
Braid
<29.9
(<9.8)
<9.1
(<3.0)
150 185 44 0.9
(0.3)
1.80
(5.9)
