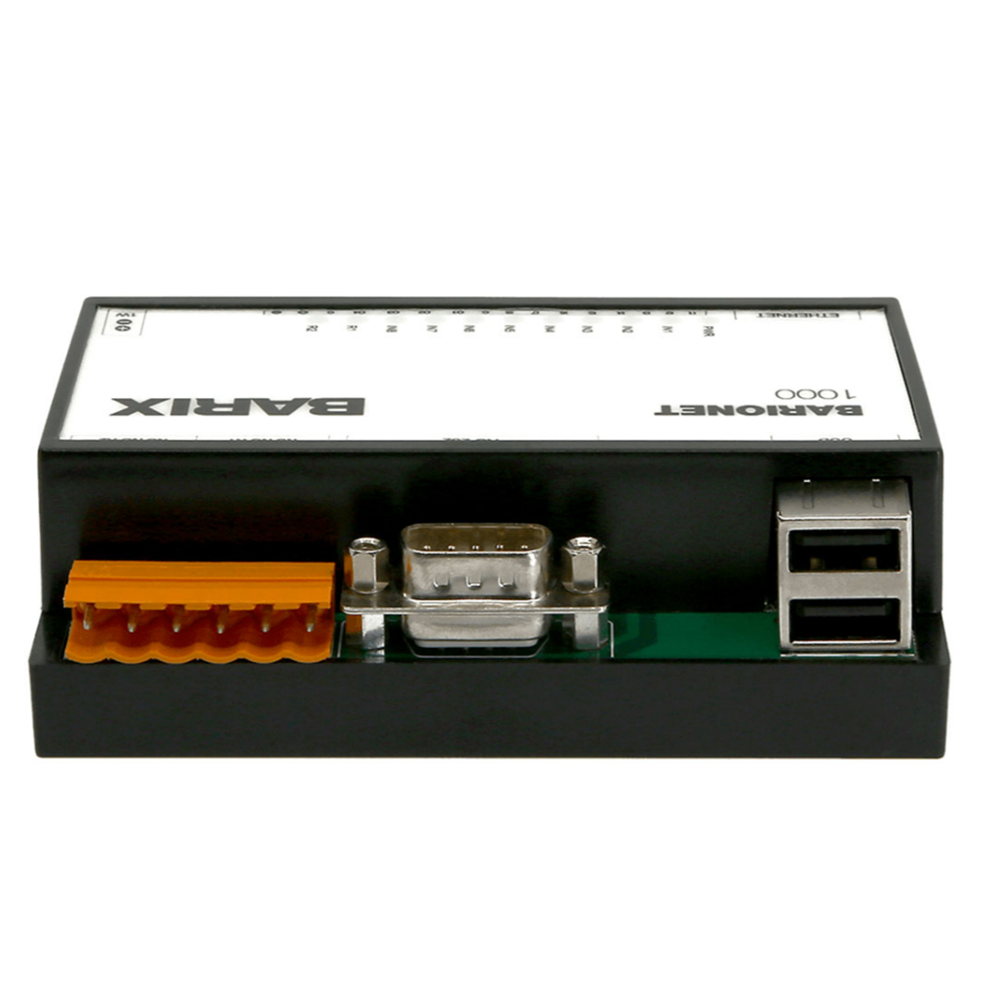

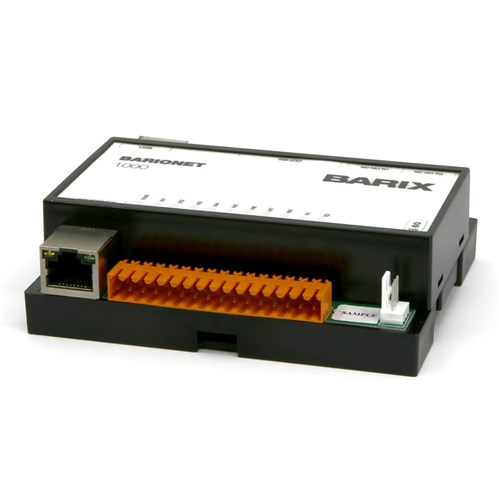

Barionet 1000 OEMPackage Universal IP enabled automation controller

Universal, programmable I/O device server

The BARIONET 1000 / 1xxx is a Linux/Open- WRT based universal, fully programmable I/O device server. I/O interfaces include two USB host interfaces, WiFi connection, a serial port, analog and digital I/Os, Relays and Dallas 1-wire support - and it is IPv6 capable.

MAIN FEATURES

• Embedded Linux / Lede / OpenWRT
• Programmable in C++, Lua or Python
• IPv4 / IPv6 stack
• One 10/100 Ethernet port
• Wi-Fi 802.11 b/g/n, 2.4Ghz
• 2 Relay outputs
• 4 Digital Outputs
• 4 Digital Inputs
• 4 Universal Inputs (analog or digital)
• RS232 Interface
• 2 USB Host Interfaces
• Interface for temperature sensor – Dallas 1-wire® 18DS20
• Barionet DIN-Rail Case
• Supply Voltage 9-30 VDC

Technical Specifications

• Linux / Lede / OpenWRT

• 1 x Ethernet (RJ45) Interface
• IPv4, IPv6 capable
• 10/100 fdx/hdx, auto negotiation
• WiFi 802.11 b/g/n, 2.4 GHz
• TCP/IP, UDP, ICMP, DHCP, CGI, HTTP, SNMP

• 2 x Relay Outputs (30VDC, 5A)
• 4 x Digital Outputs (open-collector, 24VDC, 0.3A)
• 4 x Digital Inputs (0-15VDC) with conf. pullups
• 4 x Universal Inputs (Analog 0-15VDC 12bit or Digital 0-15VDC) with configurable pullups

• 1 x RS-232 (DSub-9 male) Interface
• 600-115’200 baud rate, 7-8 bit, O/E/N Parity

• 2 x USB Host (Type A) Interface

• Universal Dallas 1-Wire® Interface for external temperature sensors
• 18DS20 and other 1-Wire® equipment

• MediaTek MT7620A, Qino Module
• 64MB SDRAM
• 16MB Flash

• Web interface for control / configuration
• 11 x LED Status indicators

• Single 9-30V DC supply voltage, 2.5 Watt

• > 950’000h

• 4.05” x 3.35” x 1.22” / 103mm x 85mm x 31mm

• 180g

• Two years
