Features

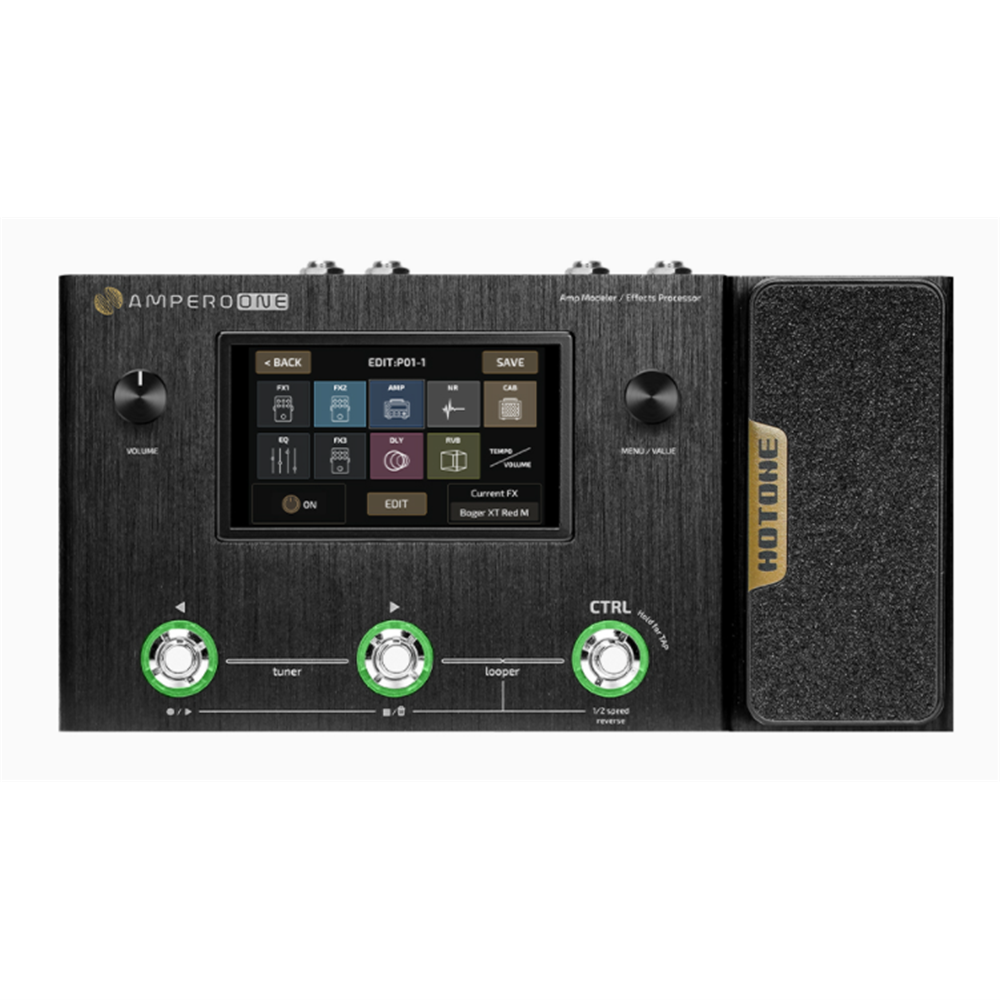

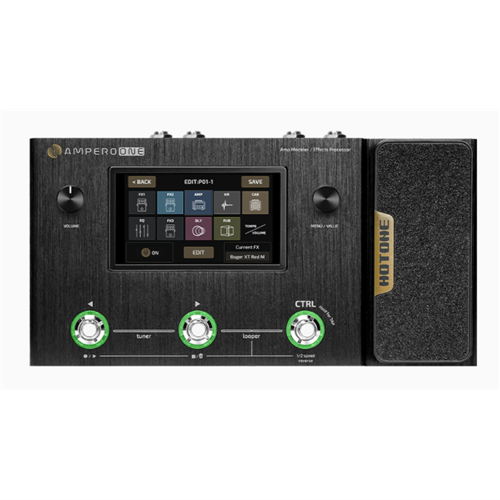

✪ The popular amp modeler & effects processor in a smaller case

✪ New-gen CDCM & F.I.R.E. modeling system ensures high end tonal expressiveness and realistic playing experience

✪ Powerful dual DSP-powered platform ensures excellent sound quality

✪ 24-bit signal processing, up to 120dB S/N ratio

✪ 4-inch 800 x 480 sharp color touch screen with instant control

✪ Internal voltage boost circuitry for great dynamic range

✪ USB port for firmware upgrading, loading/editing/managing effects/IRs via free Mac/PC software or for use as an USB audio interface

✪ Advanced acoustic simulation effects

✪ Dedicated acoustic effects and presets - a one-stop solution for acoustic players

✪ 242 effects based on stunning XTOMP effects library

✪ CDCM HD & F.I.R.E. modeling effects including:

    - 64 amp models

    - 60 cab models

    - 100+ legendary pedal models

    - Next-gen mic position and microphone type simulations

✪ 50+ Hotone original effects (incl. high quality drive/dynamic/filter/mod/delay/reverb models and more)

✪ User custom IR loader with 3rd party IR support

✪ 198 presets

✪ Built-in drum machine with 100 patterns

✪ Built-in looper with max. 100 seconds recording time

✪ 3 assignable footswitches with halo LEDs

✪ Built-in expression pedal

✪ Authentic stereo output processing

✪ Essential I/O for most connection needs

✪ External controller jack for connecting external footswitches/pedals

✪ Customizable main display modes, theme colors and UI language

✪ Road-ready, light-weight aluminum casing

✪ 9V DC power supply

Specifications

Digital Audio Signal Processing

24-bit depth, 44.1kHz sample rate

SNR

120dB

Effects

242

Effects Modules

Total of 9 simultaneous

Patches

198 (99 user patches, 99 factory patches)

Looper Time

Mono 100 seconds, Stereo 50 seconds

Internal Drum Machine

100 Rhythm Patterns

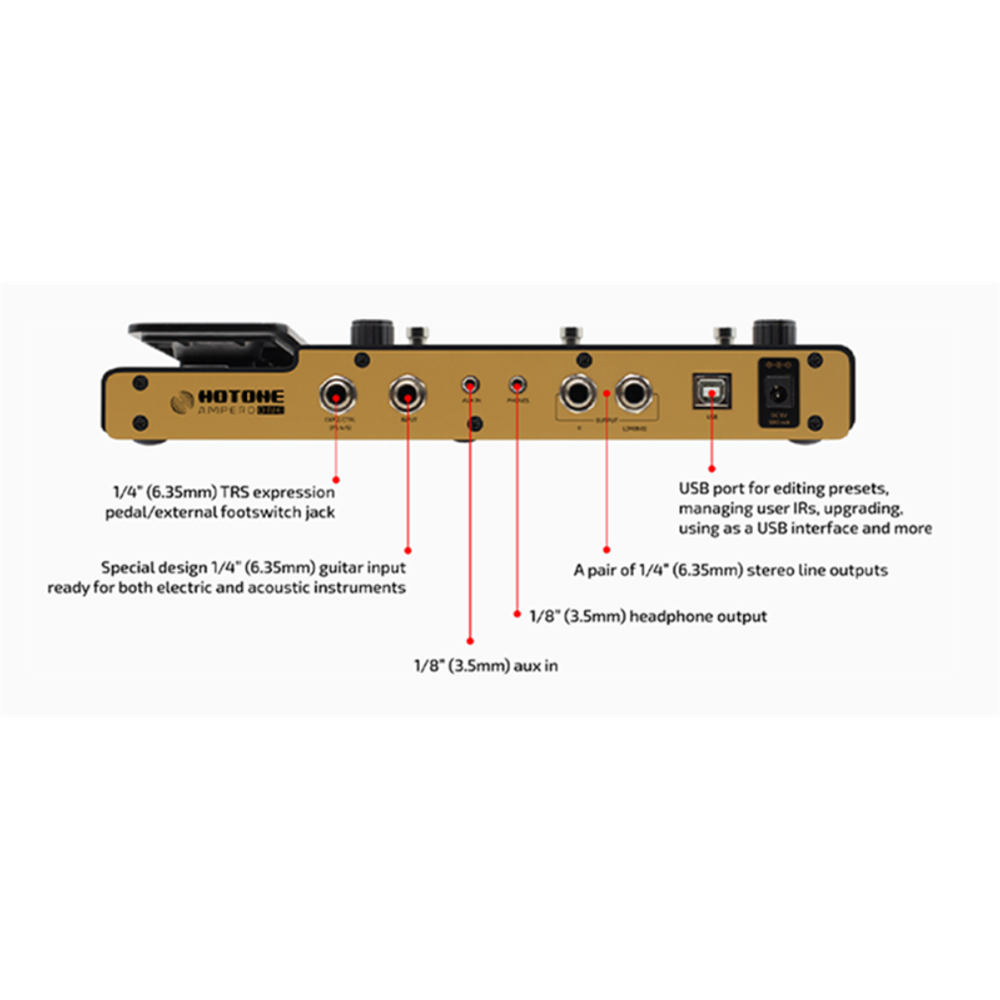

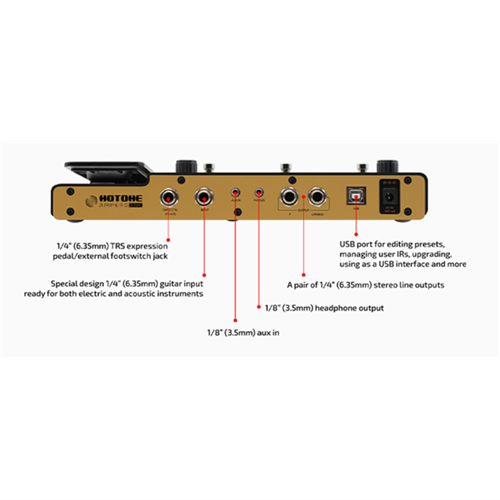

Inputs

One 1/4” Tip Sleeve (TS) Instrument jack

One 1/8” Stereo Auxiliary In (Aux In) jack

One 1/4” Tip Ring Sleeve (TRS) Expression Pedal input jack

Outputs

Two 1/4” Tip Sleeve (TS) Unbalanced Stereo output jacks

One 1/8” Stereo headphones output jack

Input Impedance

Input: 4.7MΩ

Aux In: 10kΩ

Output Impedance

Output: 3.2kΩ

Phones: 66Ω

Screen

4"800 x 480 Color Dynamic Display Touch Screen

USB Port

USB Type-B port with USB Audio support

Impulse Response/IR processing

Supports 24-bit/44.1kHz Mono WAV files, 1024 points

Power Requirements

9V DC Center Negative

Current Consumption

500mA Max

Dimensions

273mm (W) x 143mm (D) x 51mm (H)

Weight

1202g
