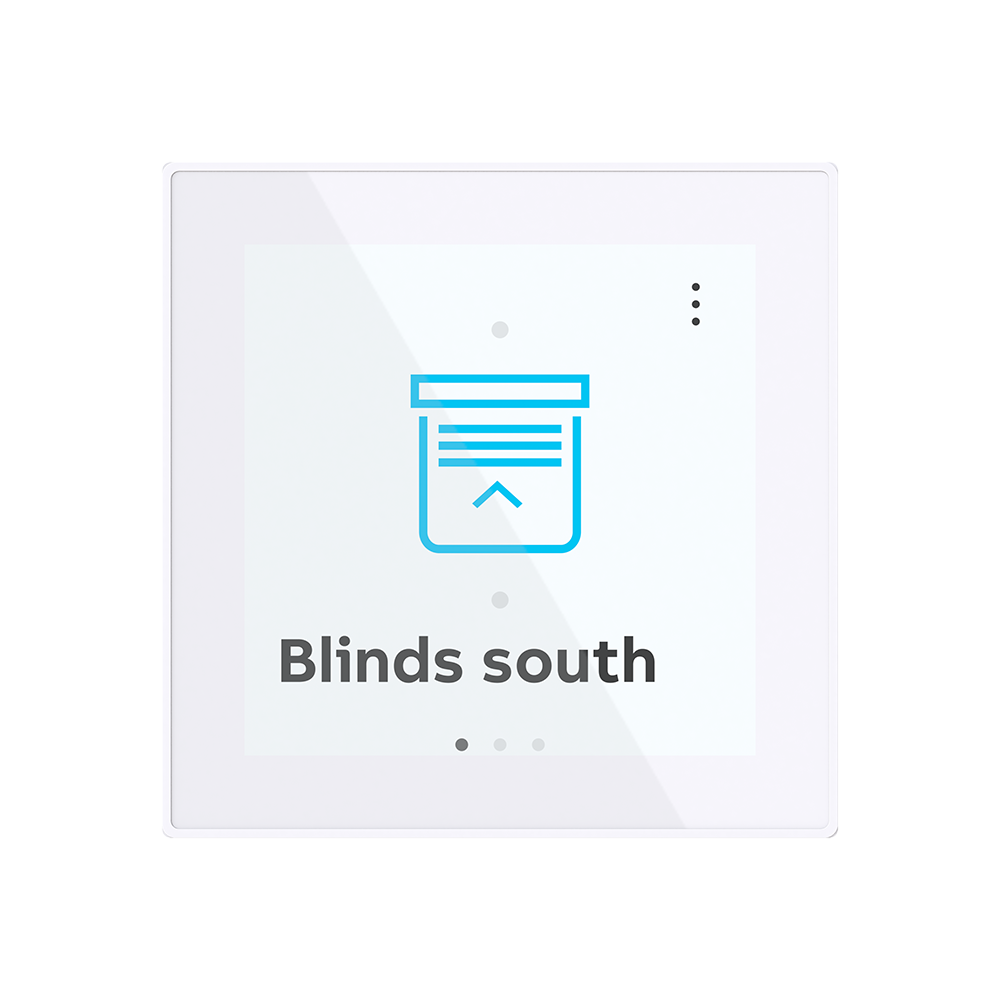

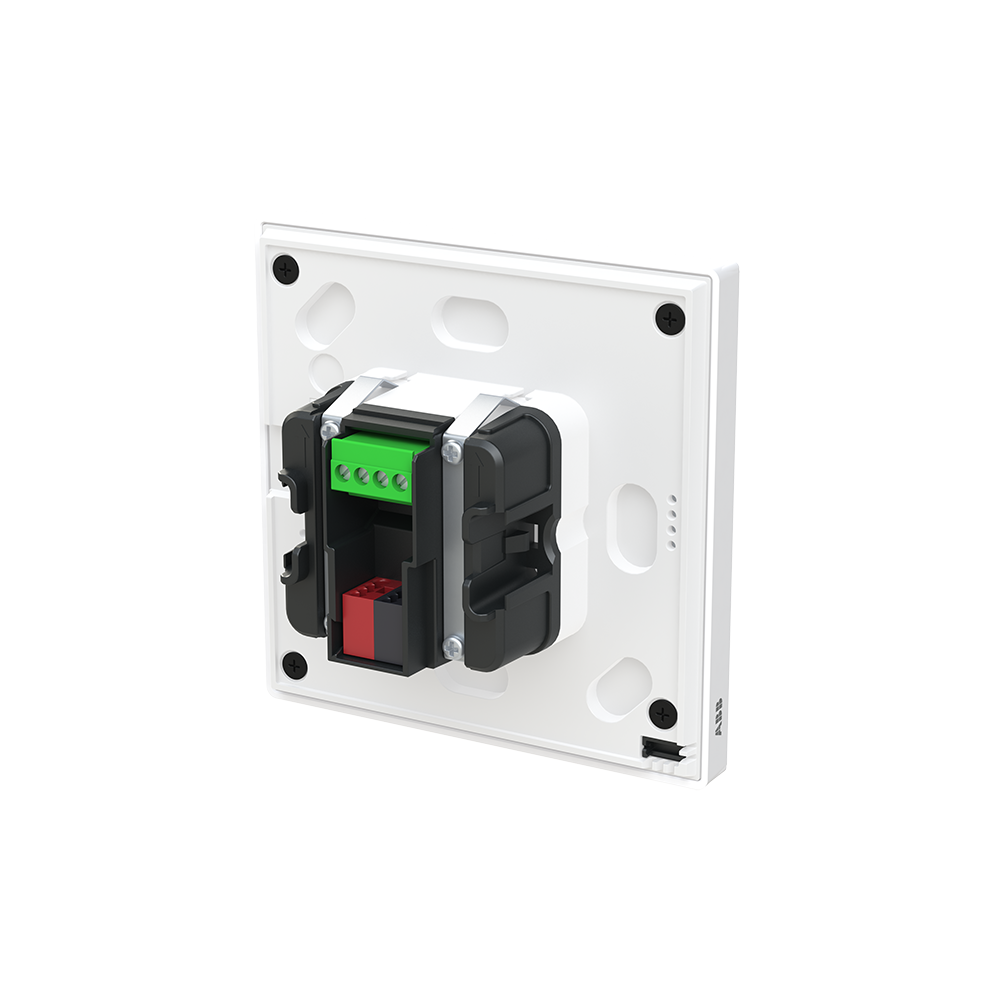

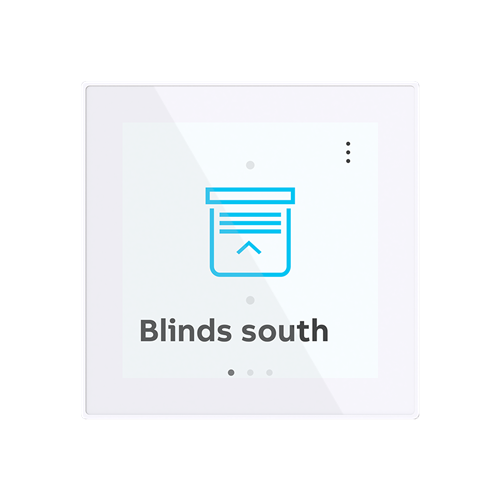

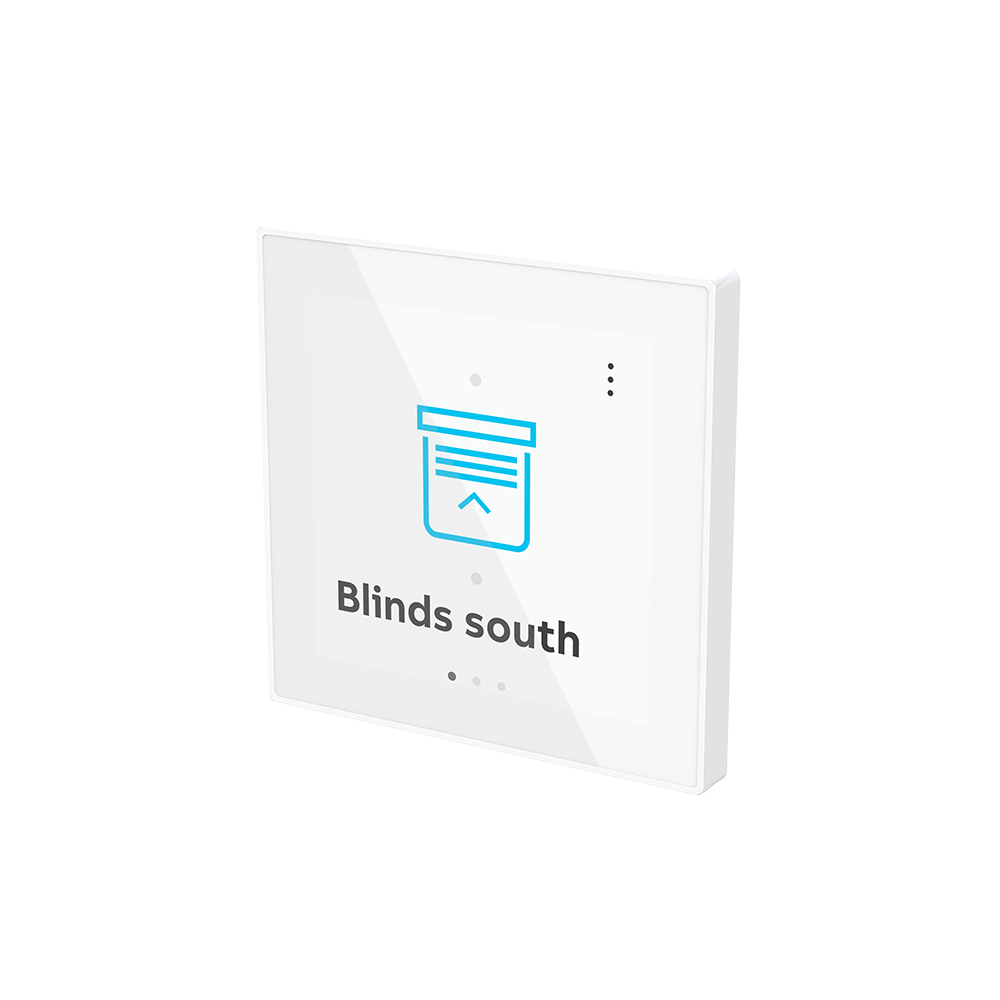

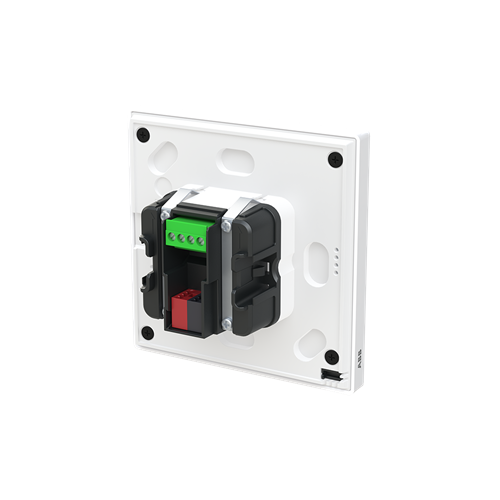

ABB ROOMTOUCH 4" WH RT/U12.86.1-811

Product Code: AB-RTU12.86.1811

Brand
ABB
RRP: POA


Unit of Measure
EACH


2 Year
Technical Specifications
Brands ABB
Series F@H Touchpanels
Series KNX Touchpanels
  • Details
  • Downloads
  • Ordering

RT/U12.86.1-811

General Information

  • Extended Product Type: RT/U12.86.1-811
  • Product ID: 2TMA310011W0001
  • EAN: 6955891820036
  • Catalog Description: RT/U12.86.1-811 RoomTouch 4"

Long Description: Freely programmable Touch panel 1 – up to 12 fold featuring a 4-inch IPS screen with 480*480 resolution that offers home control and monitoring of the free@home, or KNX system. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs.

KNX and free@home functions:

  • A total 12 control elements are displayed on a maximum of 12 pages.
  • 12 fault and alarm messages
  • 10 logic functions
  • 10 weekly timers
  • 10 scene actuators
  • 1 Integrated temperature controller (RTC)
  • Page display with a maximum of 4 touch surfaces on one page
  • Primary function 12 fault and alarm messages
  • Integrated temperature sensor.
  • Haptic feedback
  • proximity sensor
  • brightness sensor
  • 1 binary input or external temperature sensor input (PT1000 / 6226/T).

  • KNX Data Secure compatible

  • External power supply needed: 20-32 VDC (SELV)
  • Number of bus subscribers: 1
  • Optional Removal protection: TZE/U.0.xx.CK

  • Display size: 10,16cm (4”)
  • Display resolution: 480*480
  • Display screen: IPS display
  • Dimensions (L x W x D): (86mm x 86mm x 11mm)
  • Display surface: glass white (-811)
  • Frame color: White matt (-884)

  • Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.

Data

  • Installation
    • Mounting Type: Flush Mounted
    • Mounting Position: Wall
  • Environmental
    • Ambient Air Temperature: Operation 0 ... +45 °C
    • Degree of Protection: IP20
  • Technical
    • Number of Outputs: 1
    • Compatible Bus Systems:
      • KNX (TP)
      • free@home (TP)
    • Product Range:
      • free@home
      • KNX
    • Display Type: TFT Touch Display
    • Manual Operation: Yes
  • Electrical
    • Rated Voltage (Ur): 20 ... 32 V
    • Auxiliary Voltage AC/DC: 24 V DC
  • Design
    • Design Range: RoomTouch
    • Housing Material: Plastic
    • Material:
      • Glass
      • Thermoplastic
    • Colour: white glass
  • Dimensions
    • Product Net Width: 86 mm
    • Product Net Height: 86 mm
    • Product Net Depth / Length: 42 mm
    • Product Net Weight: 127 g
    • Built-In Depth (t2): 32 mm
    • Screen Size: 4 in
  • Circular Value
    • Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 -  47.6 %
    • Sustainable Material Content in Packaging: Recycled Cardboard -  98 %
    • Offered with Extended Lifetime: Product Upgradability
    • Offered with Takeback Services: Take Back for Recycling
