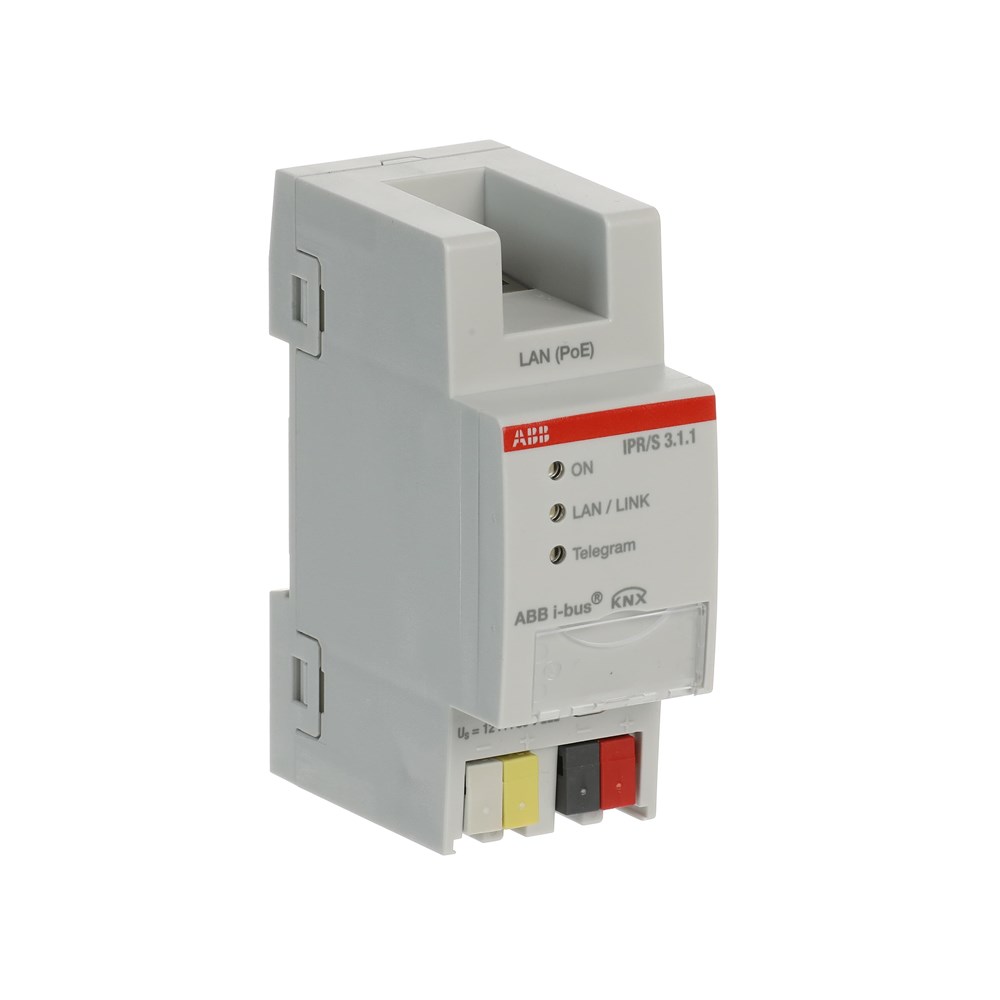

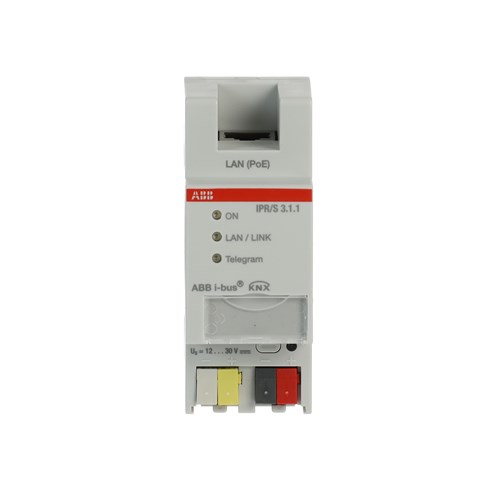

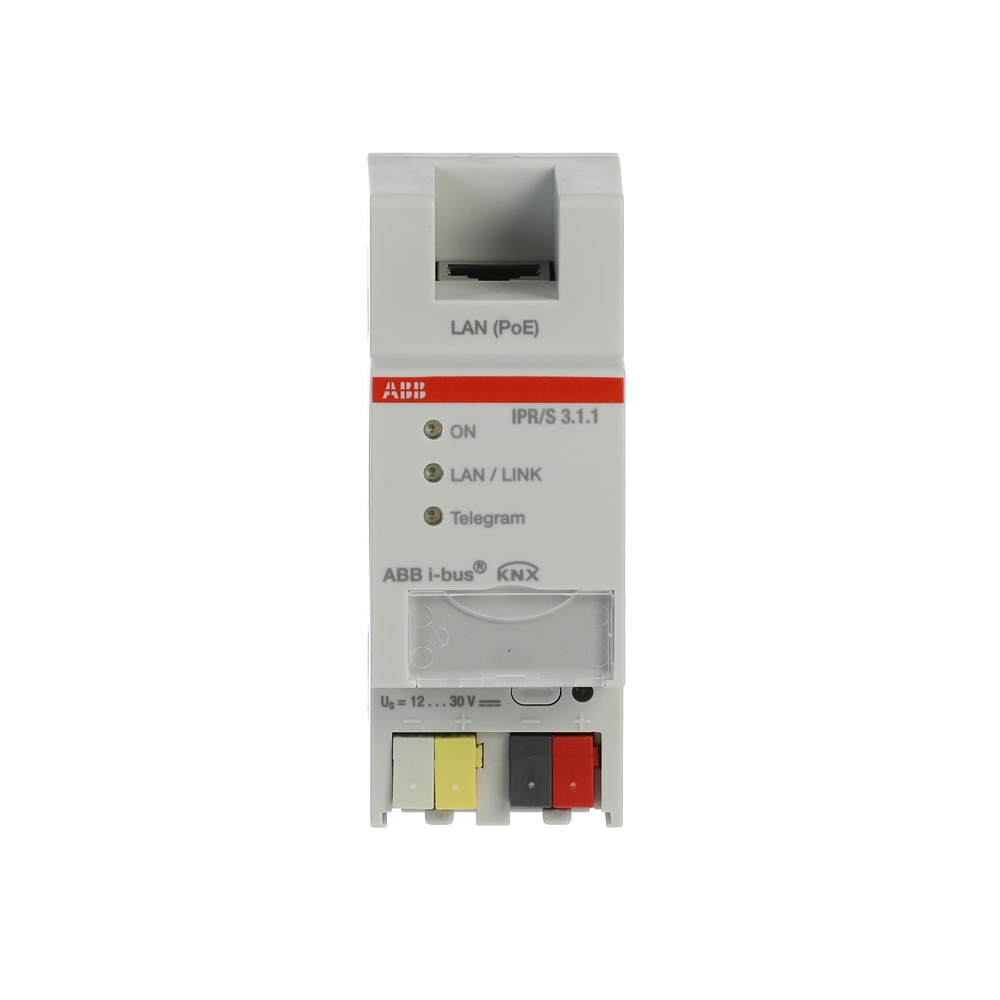

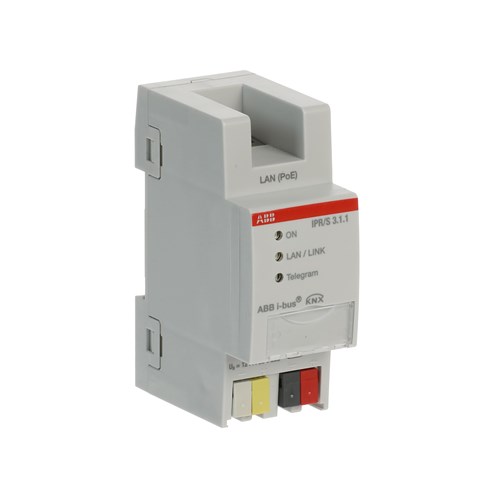

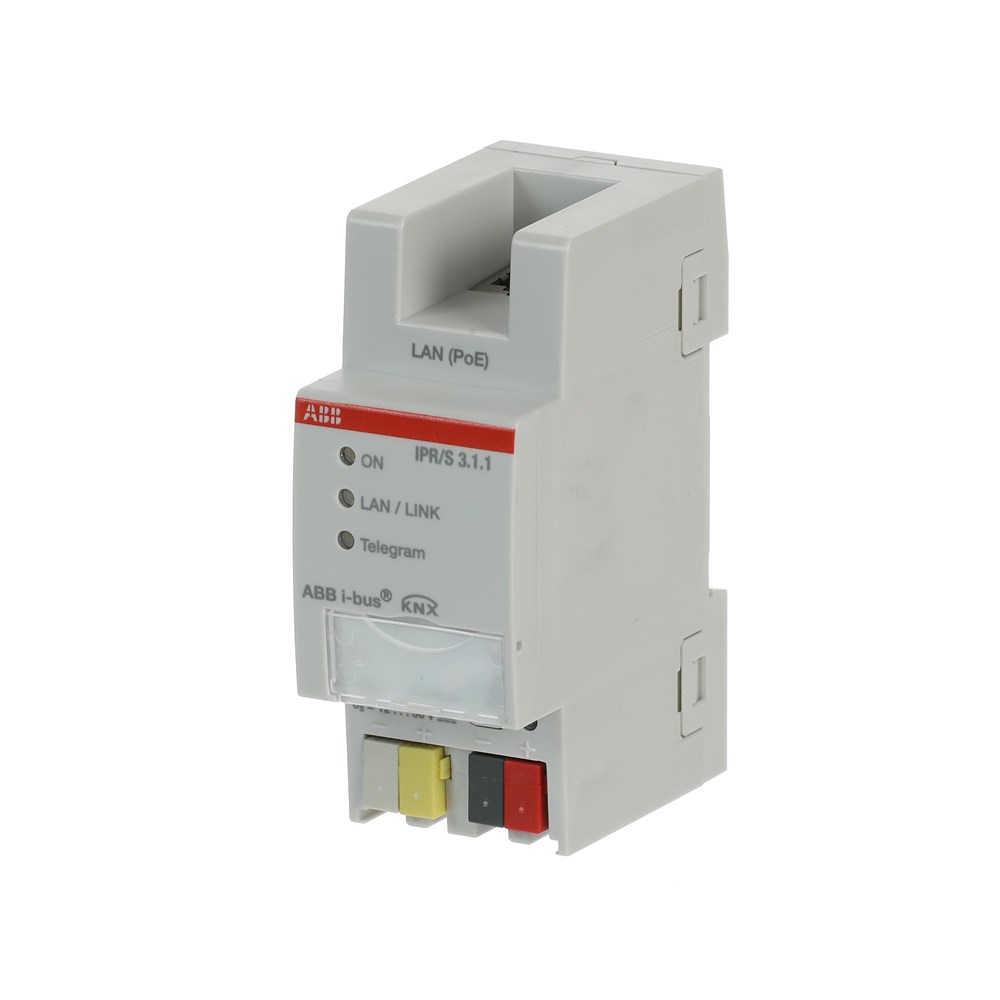

ABB KNX IP ROUTER 2MRDC IPR/S3.1.1

Product Code: AB-IPRS3.1.1

Brand
ABB
RRP: POA


Unit of Measure
EACH


2 Year
Technical Specifications
Brands ABB
  • Details
  • Downloads
  • Ordering

IPR/S3.1.1

Connects the KNX bus with the Ethernet network. The device uses the KNXnet/IP protocol for communication (Routing and Tunneling). It can be used as a fast line and area coupler. The full filter table for main groups 0-31 is supported. KNX devices can be programmed via the LAN using ETS. For this and further clients 5 Tunneling Servers are available. The IP address can be fixed or can be received from a DHCP server. Power supply via 12…30 V DC or PoE (IEEE 802.3af class 1). The KNX Standard Communication (Multicast) can be switched off. In this case, up to 10 IPR/S  3.1.1 can communicate using unicast communication

Technical data

Supply

  • Auxiliary voltage Us: 12…30 V DC (+10 % / -15 %) or PoE (IEEE 802.3af class 1)
  • Power dissipation: Maximum 1.8 W
  • Auxiliary voltage current consumption: Maximum 120 mA at 12 V
  • Rated voltage Un: 12 V DC
  • Current consumption KNX: < 10 mA

Connections

  • KNX: Bus connection terminal
  • Plug-in terminal for operating voltage: Plug-in terminal
  • LAN: RJ45 socket for 10/100BaseT, IEEE 802.3 networks, AutoSensing

Operating and display elements

  • Red LED and button: For assignment of the physical address
  • Green "On" LED: Operation readiness indicator
  • Yellow "LAN/Link" LED: Network connection indicator
  • Yellow "Telegram" LED: KNX telegram traffic indicator

Protection degree

  • IP 20: To DIN EN 60 529

Protection class

  • II: To DIN EN 61 140

Isolation category

  • Overvoltage category: III according to DIN EN 60 664-1
  • Pollution degree: 2 according to DIN EN 60 664-1

KNX safety extra low voltage

  • SELV 30VDC

Temperature range

  • Operation: -5…+45 °C
  • Storage: -25…+55 °C
  • Transport: -25…+70 °C

Ambient conditions

  • Maximum air humidity: 95%, no condensation allowed
  • Atmospheric pressure: Atmosphere up to 2,000 m

Design

  • Modular installation device (MDRC): Modular installation device, ProM
  • Overall dimensions: 90 x 36 x 64 mm (H x W x D)
  • Mounting width: 2x 18 mm modules
  • Mounting depth: 68 mm

Installation

  • On 35 mm mounting rail To DIN EN 60 715

Mounting position

  • Any

Weight

  • 0.1 kg

Housing, color

  • Plastic, halogen free, gray

Approvals

  • KNX to EN 50 090-1, -2

CE mark

  • In accordance with the EMC directive and low voltage directive
