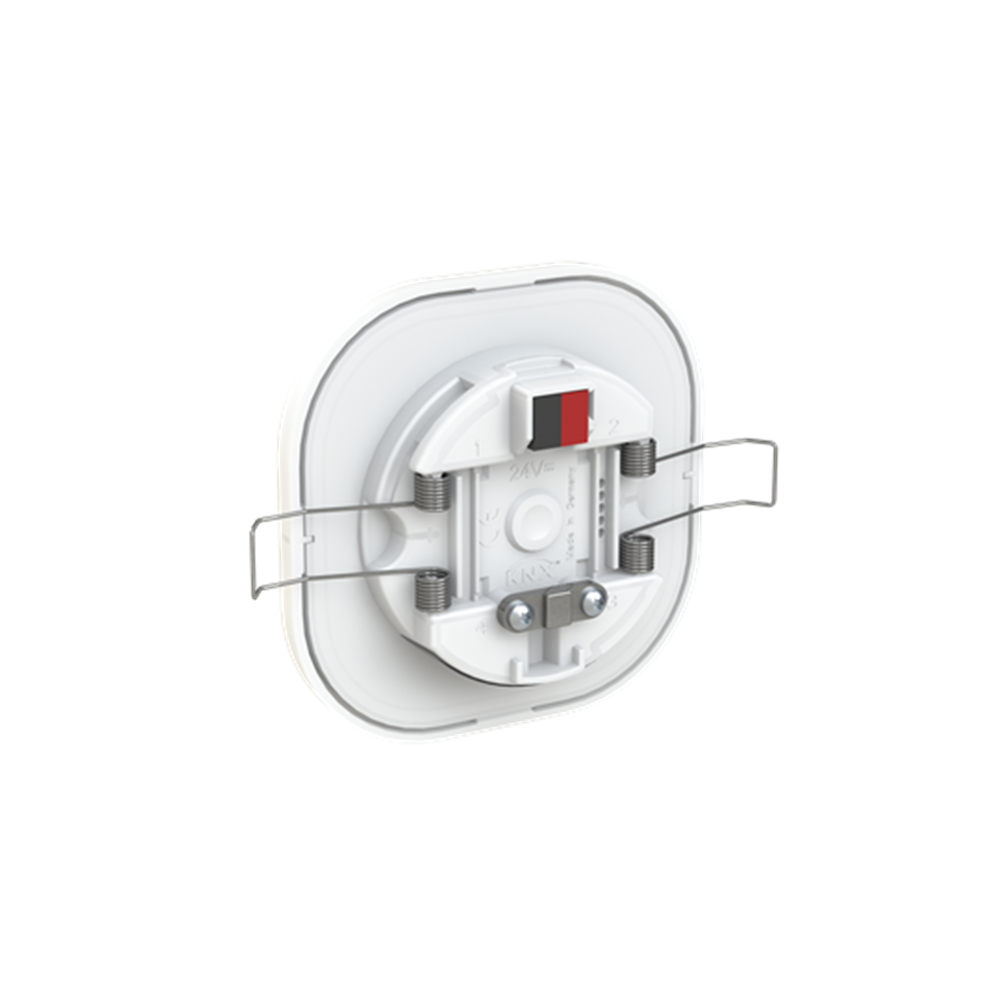

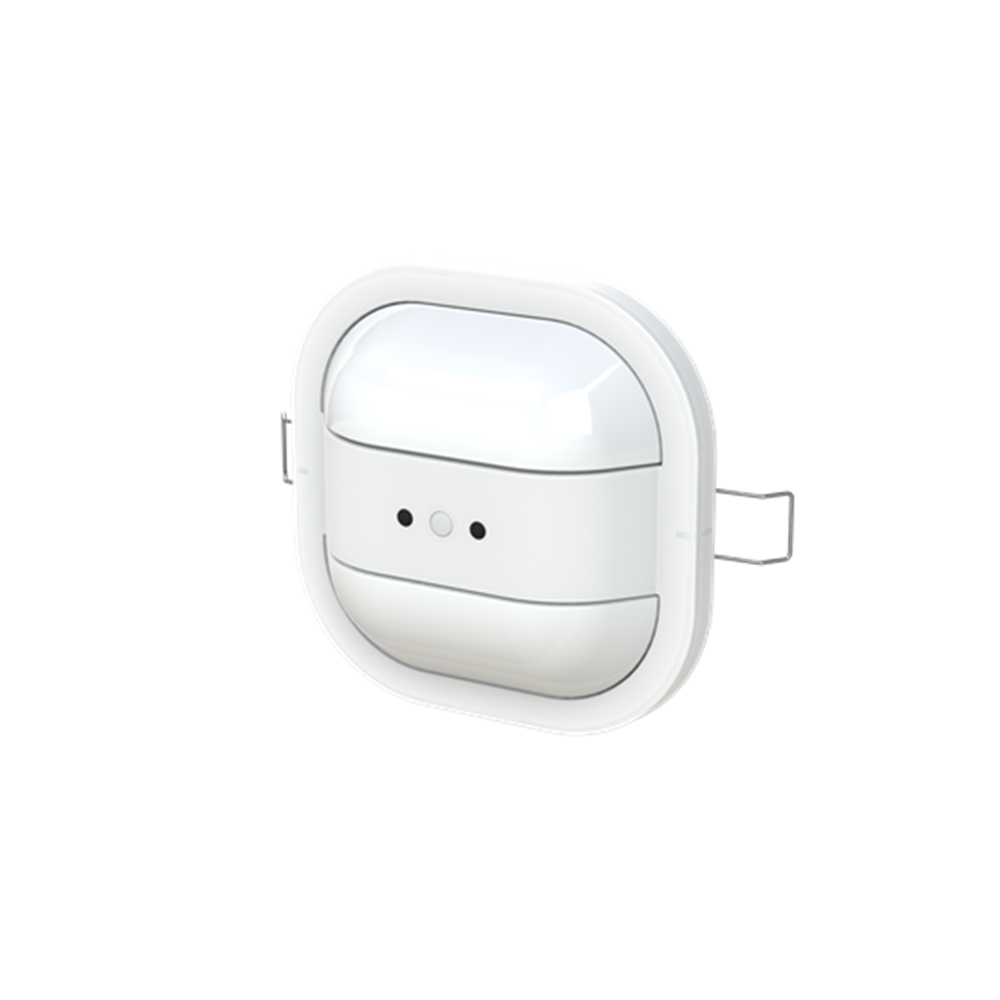

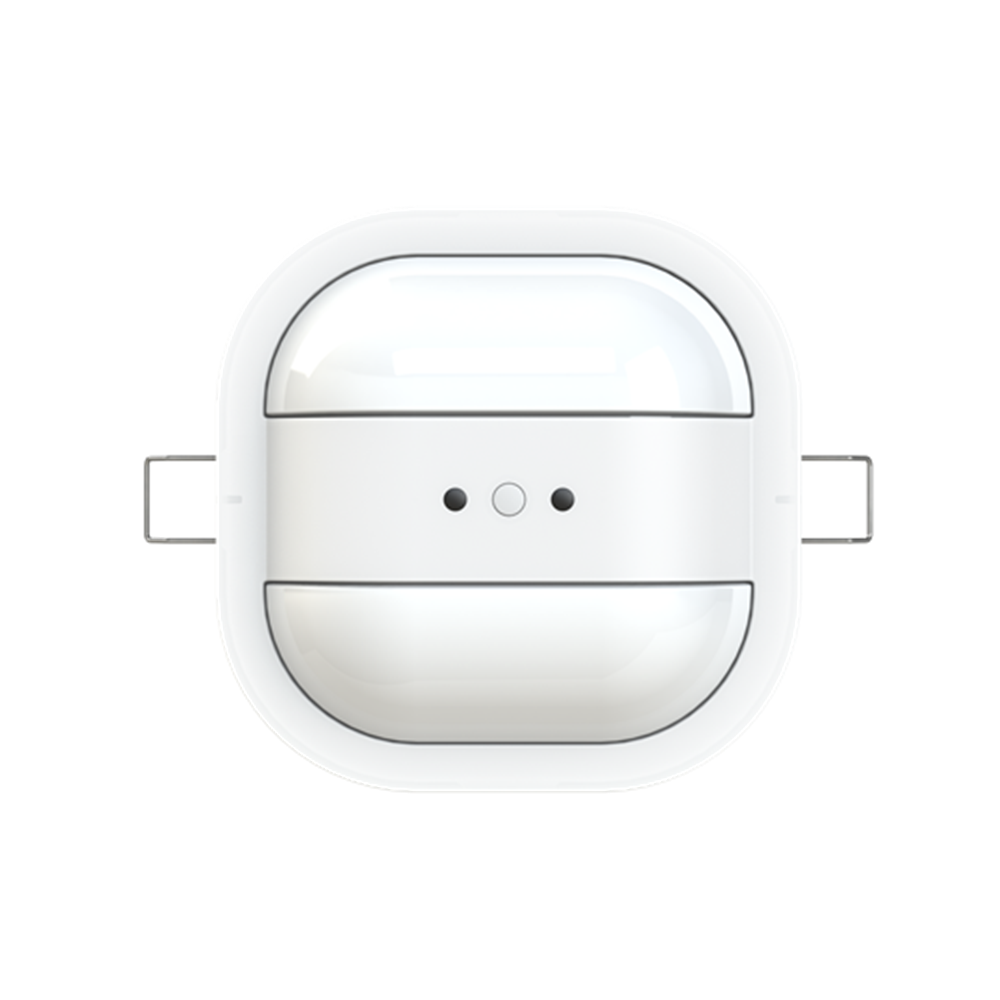

ABB BASIC 12M PRESDET WH 6131/30-24-500

Product Code: AB-613130-24-500

Brand
ABB
RRP: POA


Unit of Measure
EACH


2 Year
Technical Specifications
Brands ABB
  • Details
  • Downloads
  • Ordering

6131/30-24-500

Detection range (for mounting height 2.5 m, 3 m and 4 m): circular. Seated persons Ø: max. 8 m, max. 10 m and max. 14 m. Walking persons Ø: max. 10 m, max. 12 m and max. 16 m. Visible height 23 mm. With 2 channels. Targeted for connection and disconnection of lights bands depending on the room brightness. Regulation in response to the movement possible. Using the device as presence and/or movement detectors. Detectors application with 2 power off stages. Detectors application with integrated monitoring function. Constant light switch with up to two independent channels. Constant light switch with max. 2 outputs for brightness-dependent switching of two light bands in the area. With integrated KNX bus coupler. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm. Suitable for surface mounting installation. Cannot be installed in British Standard or VDE flushmounted box. Recommendation: Installation housing from Kaiser HaloX-O (Art.no. 1290-40) with corresponding cover plates (1290-47 or 1290-85 for fair faced concrete) or IBTronic H120-68 from Spelsberg.

Installation

  • Mounting Type:
    • Surface Mounted
    • Flush Mounted
  • Mounting Position: Ceiling
  • Mounting Height: Optimum 2 ... 4 m

Circular Value

  • Group Waste to Landfill Target: No non-hazardous waste is sent to a landfill
  • Sustainable Material Content in Packaging: FSC Recycled Paperboard -  90 %
  • Improved Resource Efficiency for Customers: Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset
  • Offered with Extended Lifetime: Product Upgradability
  • Offered with Takeback Services: Take Back for Recycling

Technical

  • Measuring Range: 12 m
  • Number of Channels: 2
  • Compatible Bus Systems: KNX (TP)
  • Product Range: KNX
  • Minimum Switching Time: Switch-On 10 second [unit of time]
  • Number of Batteries: 0

Design

  • Surface Finishing:
    • Untreated
    • Matt
  • Material: Thermoplastic
  • RAL Number: RAL 9016 - Traffic White
  • Colour: studio white matt

Material Compliance

  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • REACH Information: True - contains substances > 0.1 mass percentage

Environmental

  • Ambient Air Temperature: Operation -5 ... +45 °C
  • Degree of Protection: IP20

Dimensions

  • Product Net Width: 91 mm
  • Product Net Height: 91 mm
  • Product Net Depth / Length: 45 mm
  • Product Net Weight: 96 g
  • Built-In Depth (t2): 22 mm

Classifications

  • ETIM 9: EC001582 - Movement sensor for bus system
  • eClass: V11.0 : 27143144
  • UNSPSC: 39121801
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Consumer
