  • ABB APP-CONTROL SERVER 4MRDC CT/S2.1

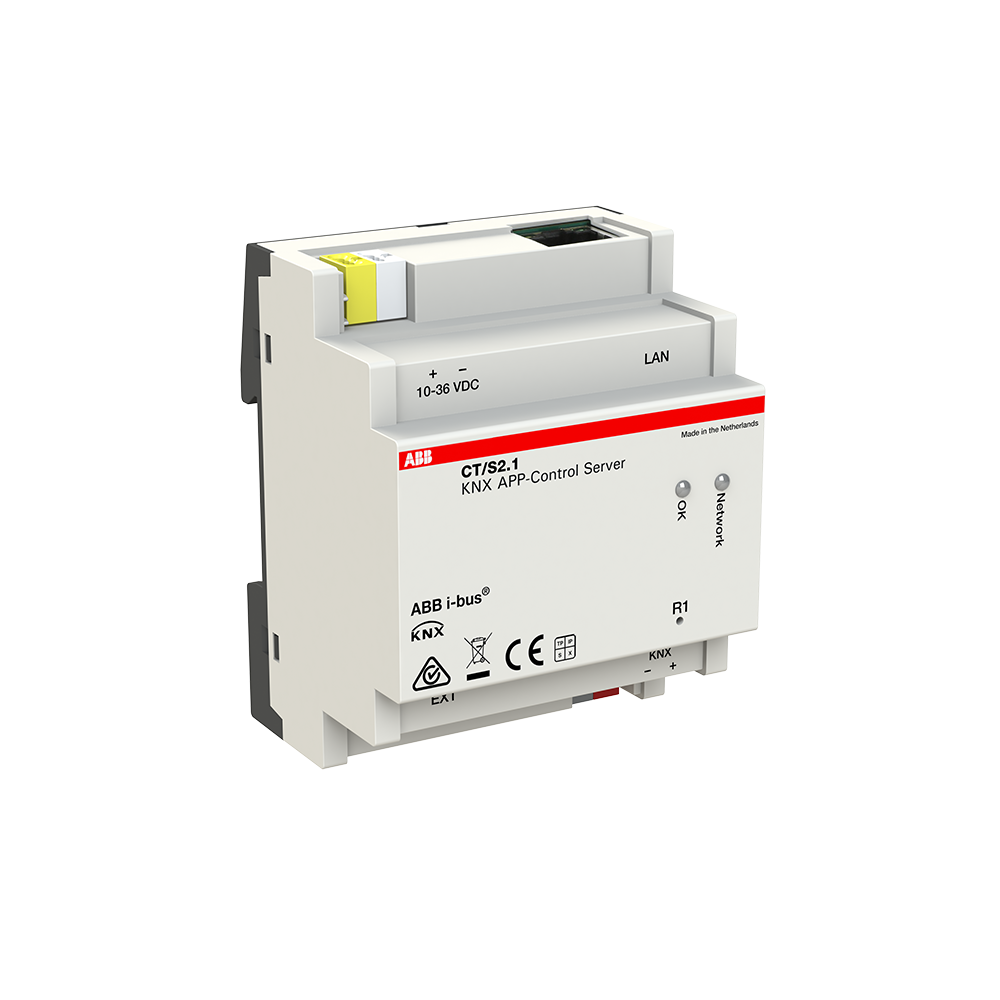

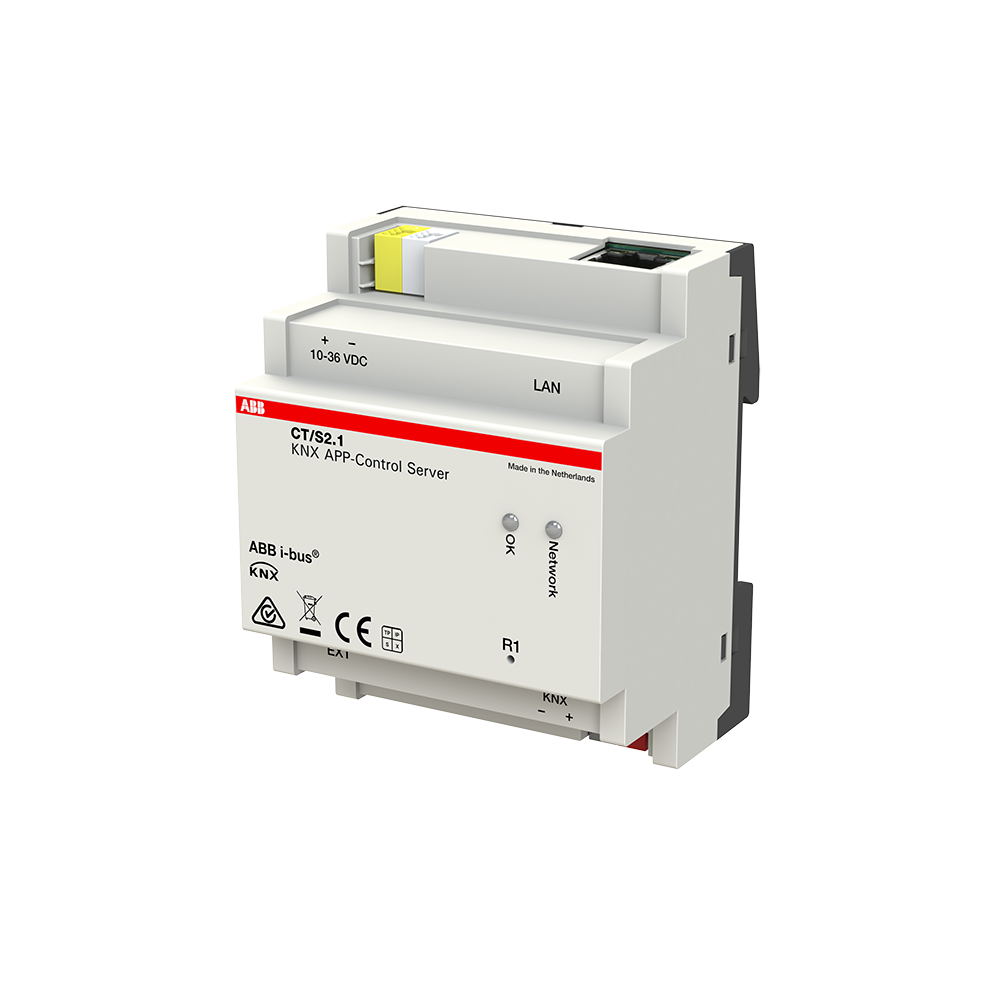

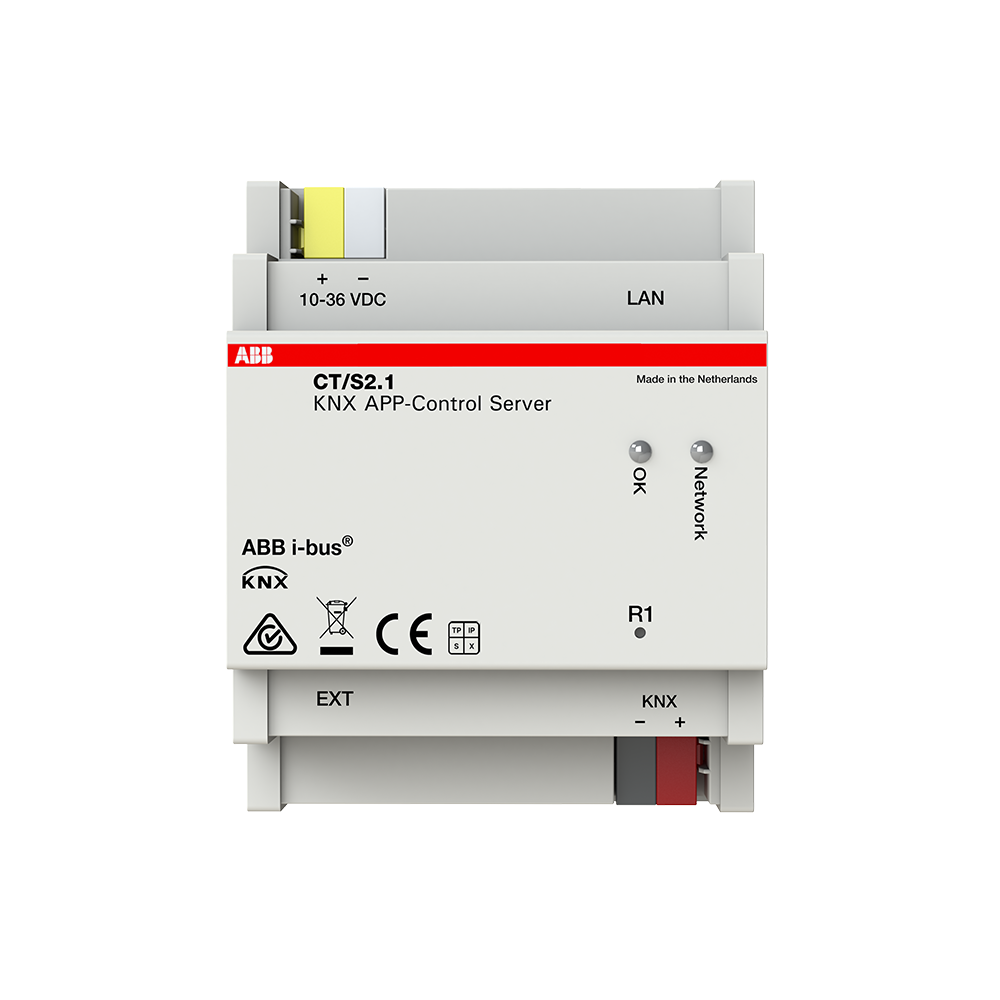

ABB APP-CONTROL SERVER 4MRDC CT/S2.1

Product Code: AB-CTS2.1

Brand
ABB
RRP: POA


Unit of Measure
EACH


2 Year
Technical Specifications
Brands ABB
Series KNX Automation
  • Details
  • Downloads
  • Ordering

CT/S2.1

  • Product ID: 2CKA006136A0218
  • EAN: 4011395310168
  • Catalog Description: CT/S2.1 KNX APP-Control Server
  • Long Description: KNX visualization for smartphones, tablets and computers.  MDRC devices with associated IOS and Android apps. Application for Windows and Apple computers.  Easy control using intuitive navigation concept. Representation of individual operating pages with list view.  Display of individual control pages with room images with small controls.  Fully web-based commissioning.  Home automation: switching, dimming, blind, RTC control, scene/sequences, Sonos control element, timing, Philips Hue/RGBW, Sonos, Display element, EV Charger.  Entertainment: Sonos - KNX bridging, multimedia integration via UPnP.  Infotainment: monitoring of usage data for up to 3 years, 4 days weather forecast.  Security: Video surveillance with IP cameras, notification via push notifications or e-mail (including a picture from an IP camera).
    -    Energy Monitoring and Management
    -    Time programs and scenes can be created by the end customer.
    -    Presence simulation.
    -    Remote maintenance of the device and the KNX installation.
    -    Online and offline KNX telegram recorder.
    -    Modbus TCP Client (1000 objects).
    -    BACnet Server (1000 objects).
    -    Access via KNXnet/IP tunnelling (KNX IP Secure).
    -    Build-in KNX Router (KNX IP Secure)
    -    Graphical logic editor.
    -    Script editor for logic functions.
    -    LUA Script Editor.
    -    Secure API.
    Highest degree of communication encryption between app, device and cloud.  Compatible with ABB i-bus® KNX. Control with smartphones and tablets via the ControlTouch app (Apple iOS /Google Android).  External power supply: 10-36 VDC (SELV).

  • Installation
    • Mounting Type: DIN-Rail
    • Mounting Position: horizontal
  • Environmental
    • Ambient Air Temperature: Operation 0 ... +70 °C
    • Degree of Protection: IP20
  • Technical
    • Communication Interface: Ethernet
    • Number of LEDs: 2
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Software Updateable: Yes
    • Integrated Webserver: Yes
    • Manual Operation: No
  • Electrical
    • Rated Voltage (Ur): 10 ... 36 V
    • Voltage Range: 10 ... 30 V DC
    • Auxiliary Voltage AC/DC: 10 ... 30 V DC
    • Input Voltage (Uin): 24 V DC
    • Power Loss: 0 W
  • Design
    • Colour: grey
  • Dimensions
    • Width in Number of Modular Spacings: 4.0
    • Product Net Width: 71.8 mm
    • Product Net Height: 89.5 mm
    • Product Net Depth / Length: 60.1 mm
    • Product Net Weight: 234 g
