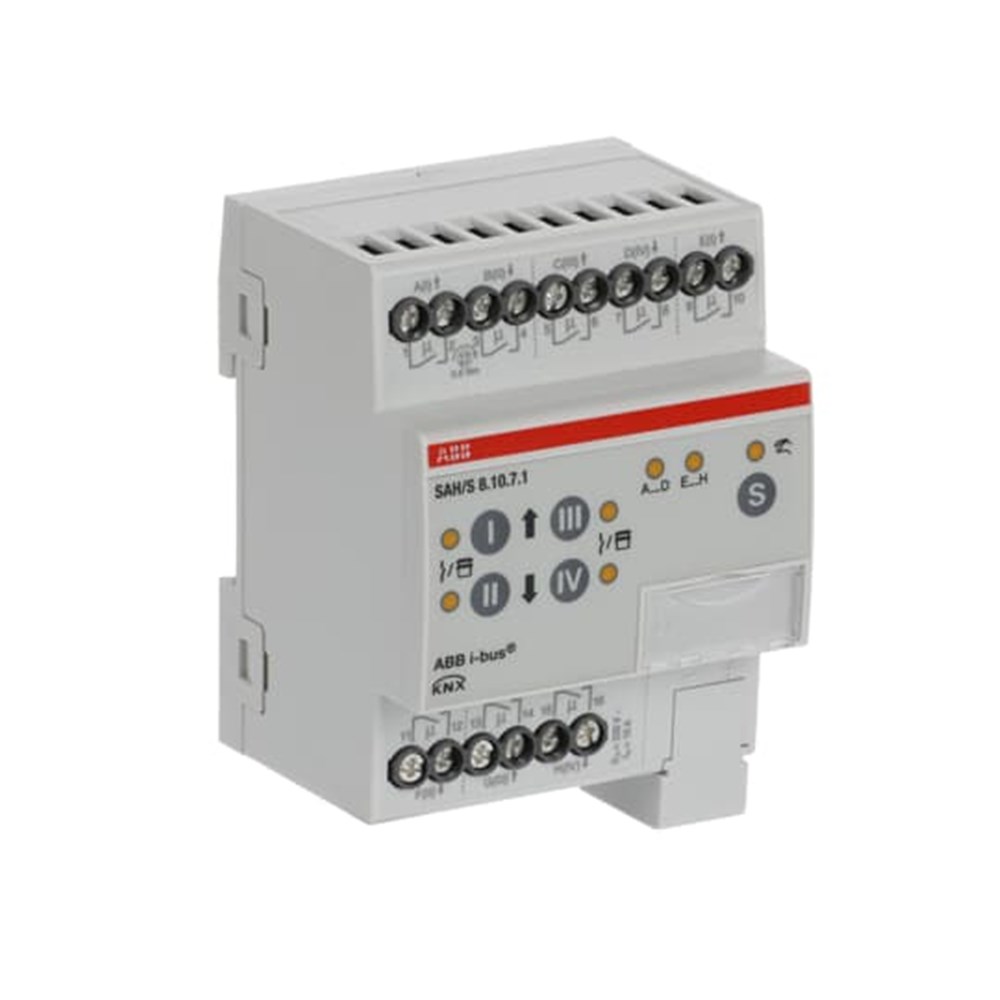

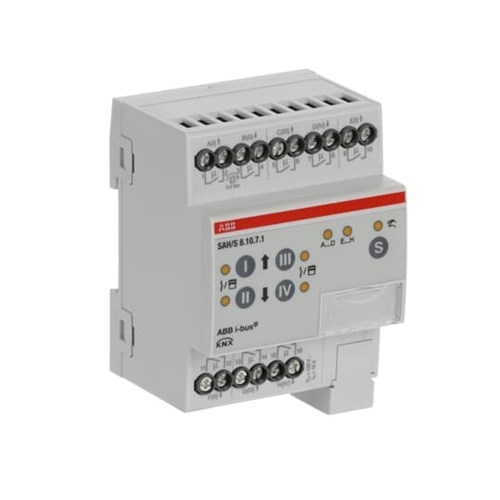

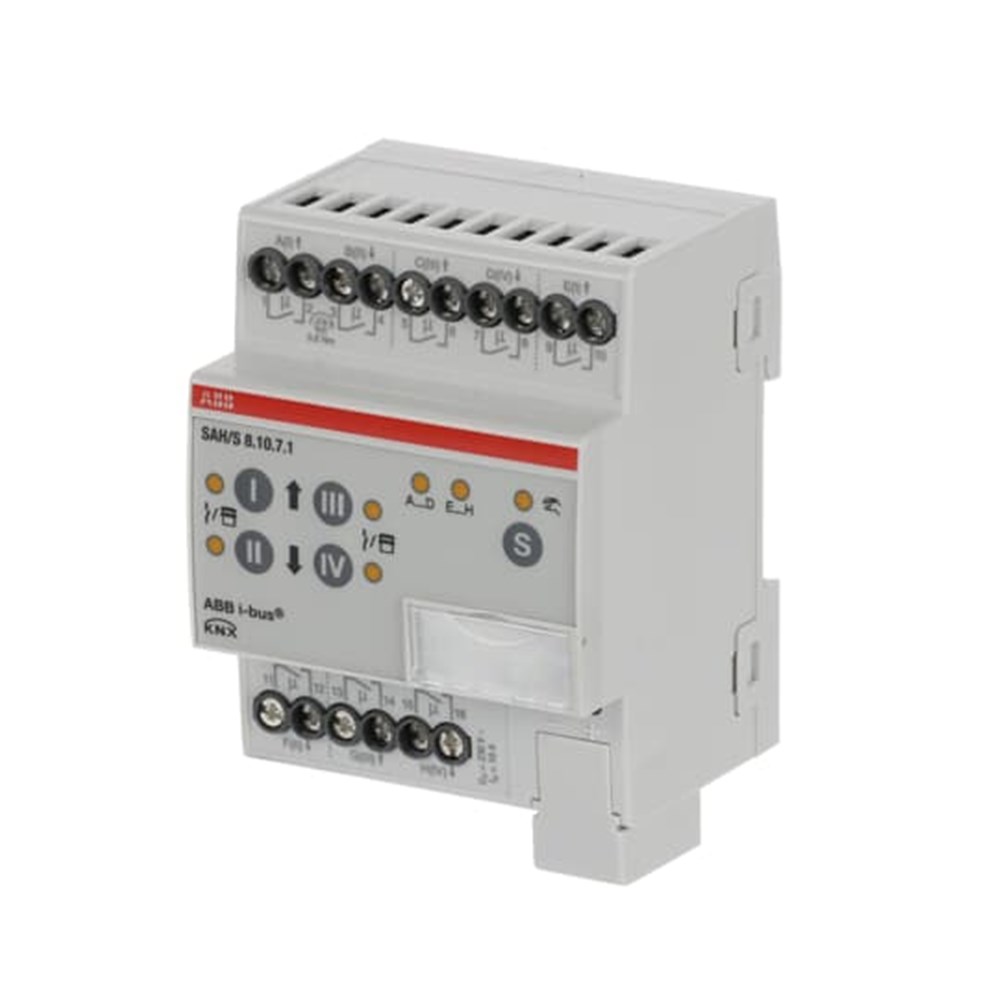

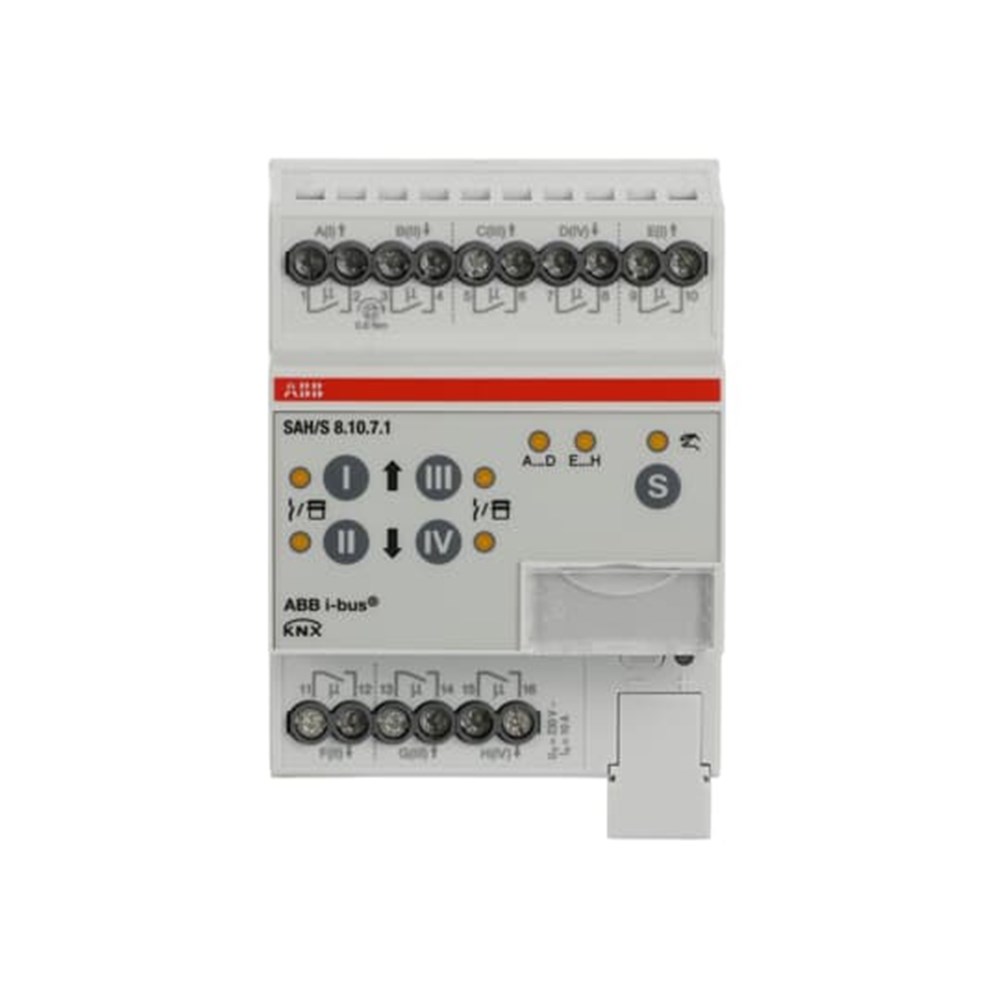

ABB 8CH COMBI SWITCH ACTUATOR 10A, 4MRDC SAH/S8.10.7.1

Product Code: AB-SAHS8.10.7.1

Brand
ABB
RRP: POA


Unit of Measure
EACH


2 Year
Technical Specifications
Brands ABB
  • Details
  • Downloads
  • Ordering

SAH/S8.10.7.1

The compact 10 A combi switch actuator has 8 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The device is powered by KNX and requires no additional power supply.

Installation

  • Mounting Type: DIN-Rail

Environmental

  • Ambient Air Temperature: Operation -5 ... +45 °C
  • Degree of Protection: IP20

Technical

  • Contact Position Indication: ON / OFF
  • Number of Outputs: 8
  • Number of LEDs: 8
  • Maximum Number of Switching Outputs: 8
  • Compatible Bus Systems: KNX (TP)
  • Product Range: KNX
  • Manual Operation: Yes
  • Suitable for C-Load: No
  • Number of Batteries: 0

Electrical

  • Voltage Range: 230 V AC
  • Auxiliary Voltage AC/DC: KNX
  • Output Voltage (Uout): 230 V AC
  • Rated Current (In): 10 A
  • Maximum Switching Current: 10 A
  • Maximum Switching Power: 1200 W
  • Load Type: AC1
  • Power Loss: 3 W

Design

  • Color: light grey

Dimensions

  • Width in Number of Modular Spacings: 4
  • Product Net Width: 70 mm
  • Product Net Height: 90 mm
  • Product Net Depth / Length: 63.5 mm
  • Product Net Weight: 0.272 kg
  • Built-In Depth (t2): 64.5 mm

Material Compliance

  • RoHS Status: Following EU Directive 2011/65/EU
  • REACH Information: False - does not contains substances > 0.1 mass percentage
  • SCIP: 2c476654-f5a9-433b-b725-6ca8fc809e48 Germany (DE)

Classifications

  • ETIM 9: EC001097 - Switch actuator for bus system
  • eClass: V11.0 : 27143125
  • UNSPSC: 31251516
  • IDEA Granular Category Code (IGCC): 3268 >> Switch actuator
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Consumer
