  • ABB 6CH UNIVERSAL DIMMER 6X210W, 8MRDC 6X210W, 8MRDC

ABB 6CH UNIVERSAL DIMMER 6X210W, 8MRDC 6X210W, 8MRDC

Product Code: AB-UDS6.210.2.1

Brand
ABB
RRP: POA


Unit of Measure
EACH


2 Year
Technical Specifications
Brands ABB
  • Details
  • Downloads
  • Ordering

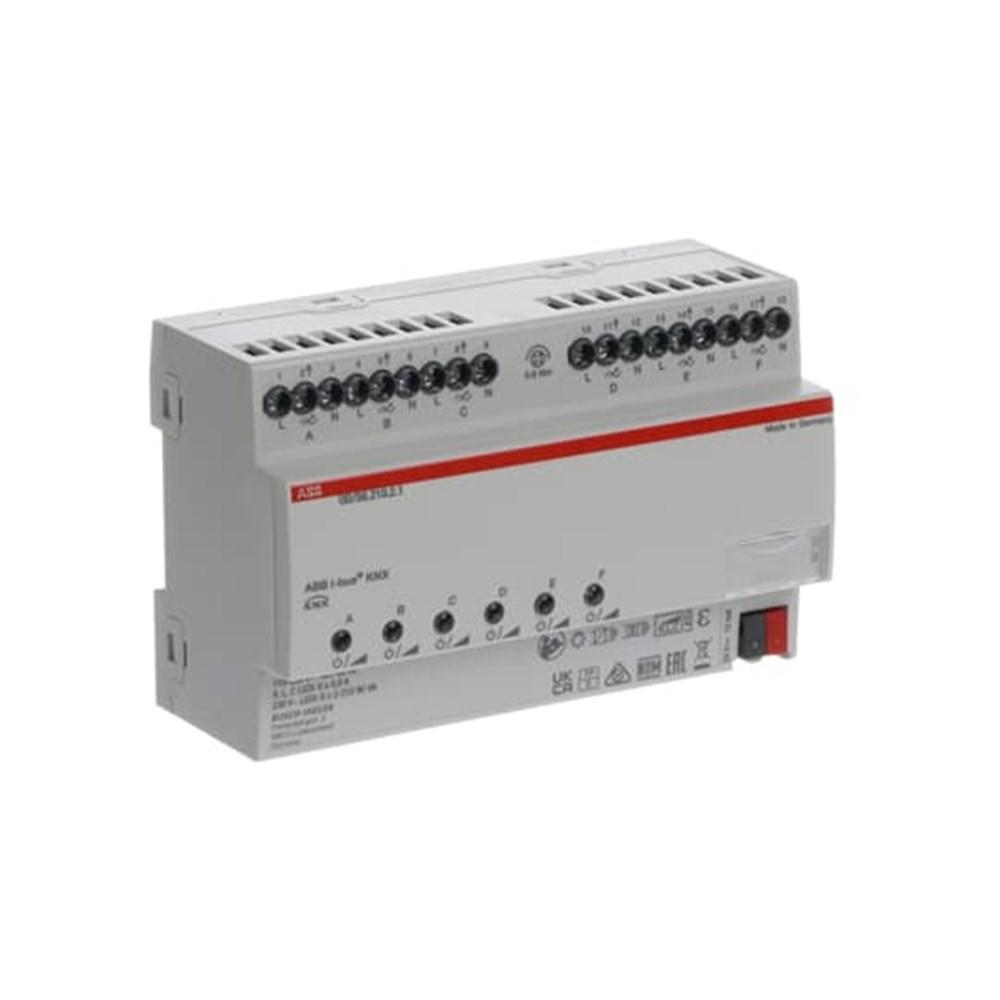

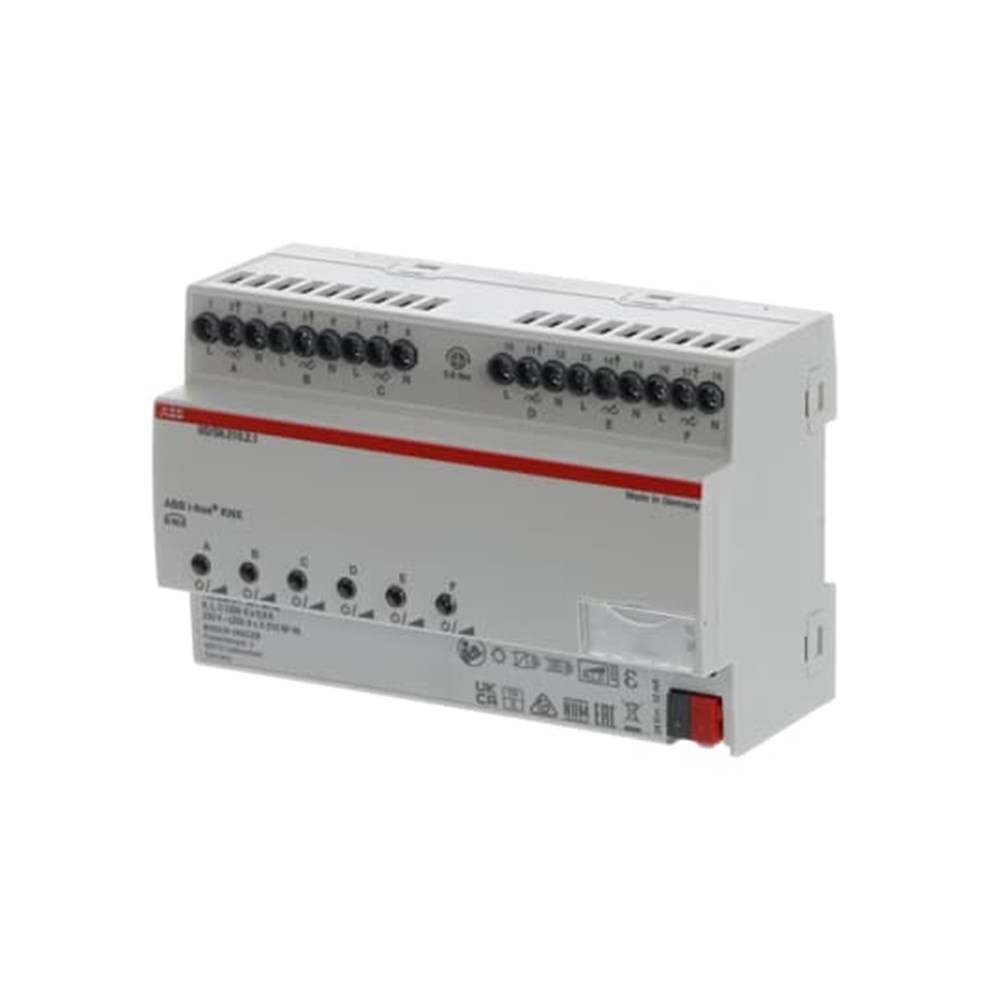

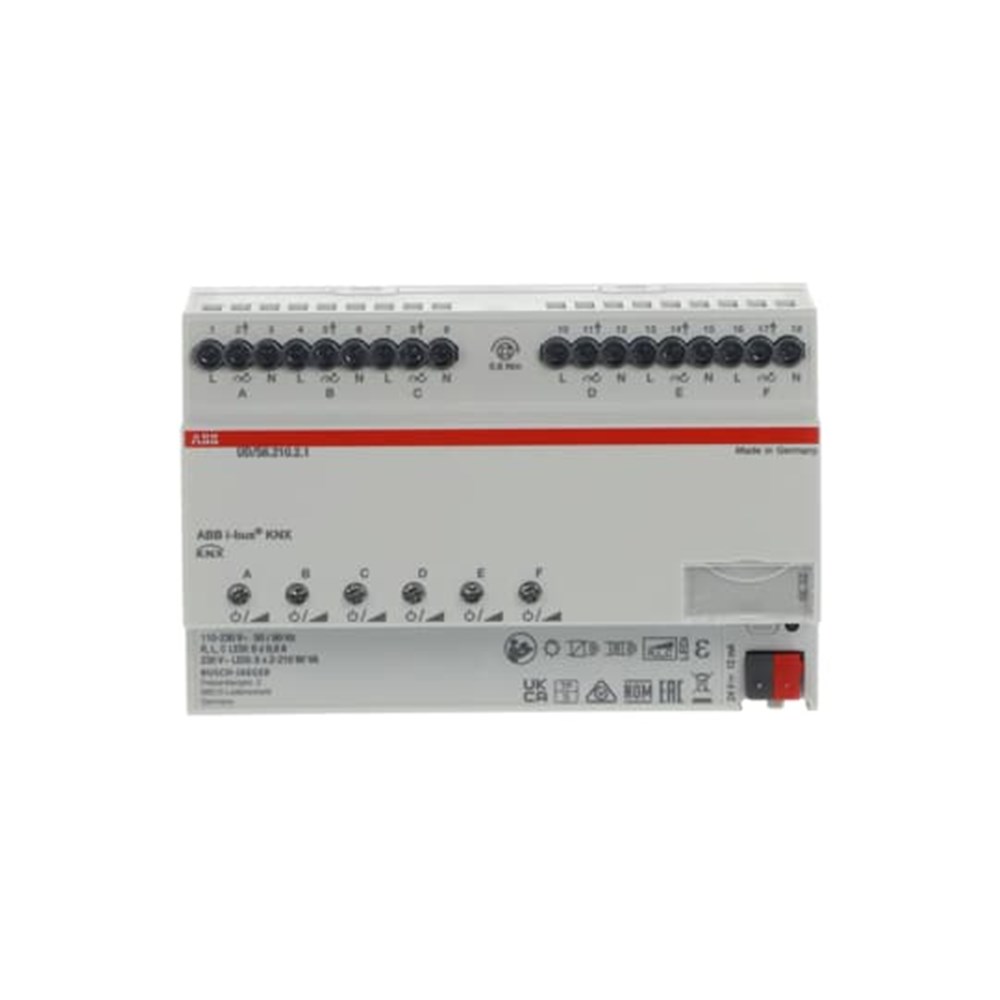

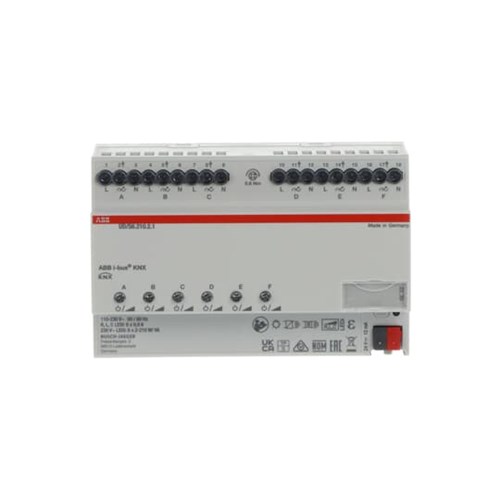

UD/S6.210.2.1

Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps. Automatic load detection (can be deactivated). Separate N-connection per channel. Parallel connection of the outputs possible to increase the output power. Outputs can be connected in parallel in any configuration. Minimum load: 2 W. Manual operation on device also possible without bus voltage or in an unprogrammed status. Programming of the device also possible without applied 230V supply voltage. Extensive test and diagnosis functions for the i-Bus tool. Fast parameter setting in ETS using copyable channel templates. With integrated bus coupler. Nominal power at 230 V~ mains voltage: 230 V~ incandescent and halogen lamps: 6 x 210 W/VA to 1 x 800 W/VA. Dimmable 230 V~ LEDi: 6 x 210 W/VA to 1 x 800 W/VA in trailing edge control, 6 x 80 W/VA to 1 x 240 W/VA in leading edge control. Inductive L-transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA to 1 x 800 W/VA. Electronic C-transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA to 1 x 800 W/VA. Electronic LC-transformers with LED/low-voltage halogen lamp: 6 x 80 W/VA to 1 x 240 W/VA.

Installation

  • Mounting Type: DIN-Rail

Environmental

  • Ambient Air Temperature: Operation -5 ... +45 °C
  • Degree of Protection: IP20

Technical

  • Number of Outputs: 6
  • Compatible Bus Systems: KNX (TP)
  • Product Range: KNX
  • Number of Batteries: 0

Electrical

  • Rated Voltage (Ur): 110 ... 230 V
  • Rated Operational Voltage: 110...230 V
  • Auxiliary Voltage AC/DC:
    • 110 V AC/DC
    • 230 V AC/DC
  • Rated Frequency (f): 50 / 60 Hz
  • Load Type: Universal and LED Retrofit

Dimensions

  • Width in Number of Modular Spacings: 8
  • Product Net Width: 139.6 mm
  • Product Net Height: 89.4 mm
  • Product Net Depth / Length: 62.6 mm
  • Product Net Weight: 459 g
  • Built-In Depth (t2): 63.5 mm

Material Compliance

  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • REACH Information: True - contains substances > 0.1 mass percentage

Classifications

  • ETIM 9: EC001094 - Dimming actuator for bus system
  • eClass: V11.0 : 27143123
  • UNSPSC: 39121801
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Consumer
