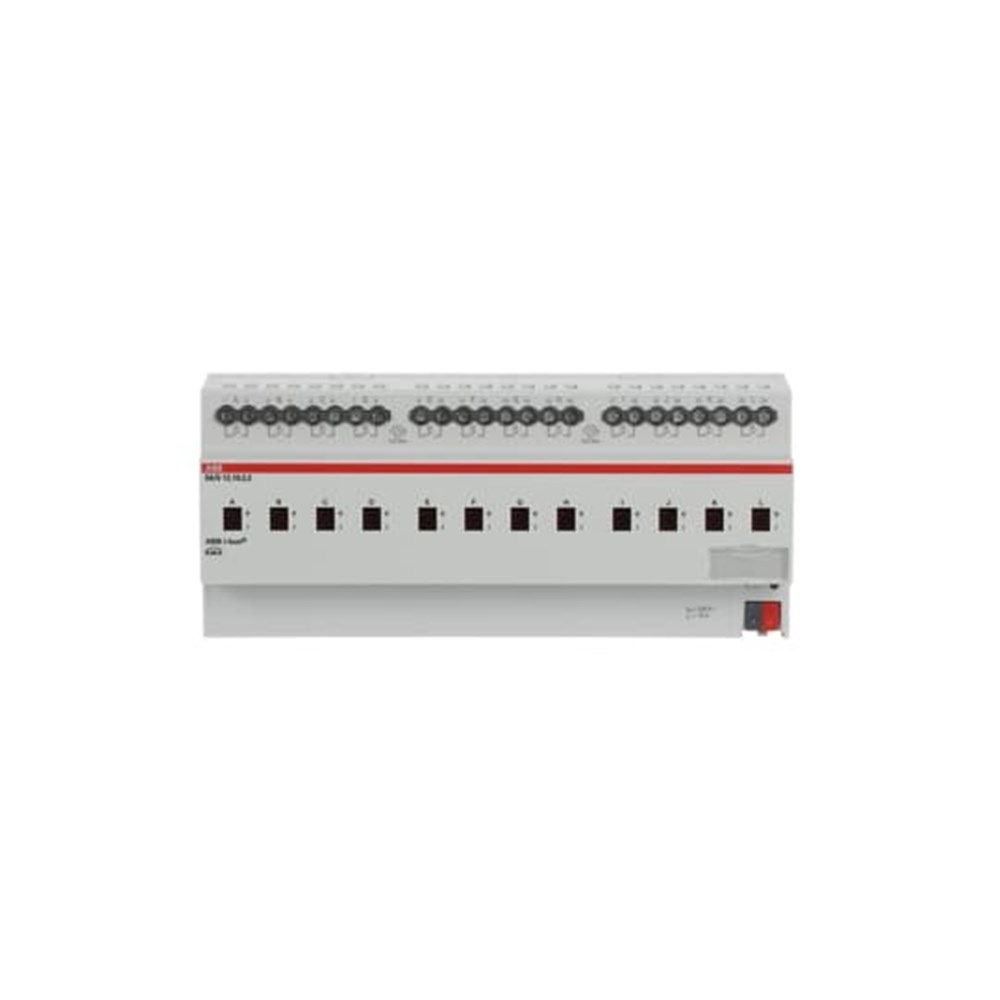

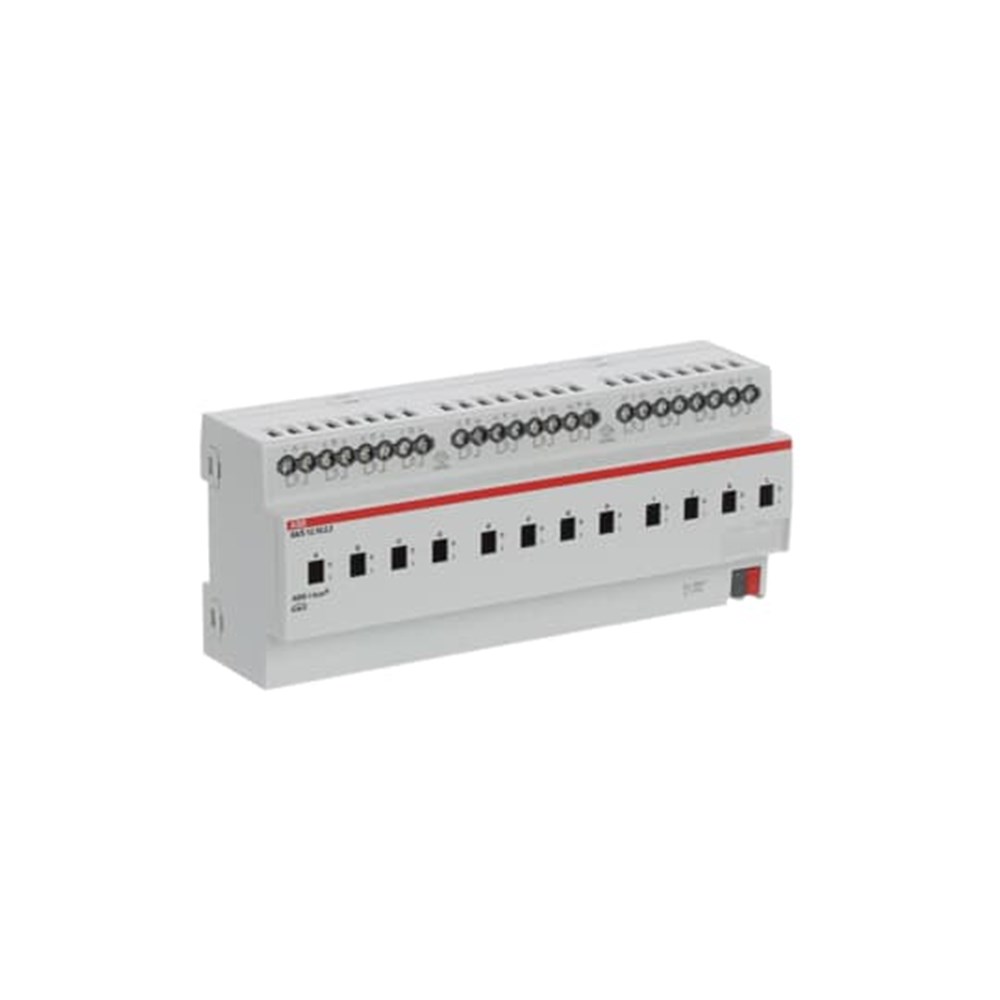

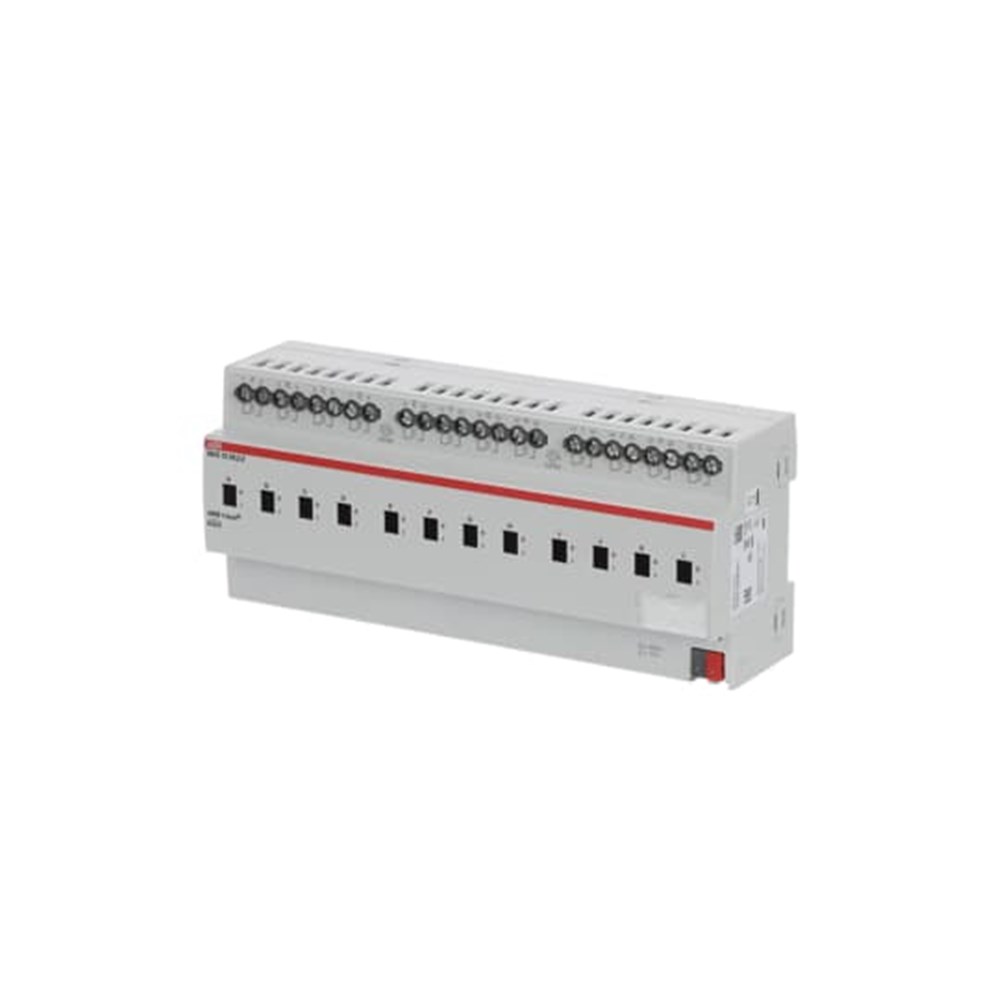

ABB 12CH 10A SWITCH ACTUATOR 12MRDC SA/S12.10.2.2

Product Code: AB-SAS12.10.2.2

Brand
ABB
RRP: POA


Unit of Measure
EACH


2 Year
Technical Specifications
Brands ABB
  • Details
  • Downloads
  • Ordering

SA/S12.10.2.2

The switch actuator uses potential free contacts to switch 12 independent electrical loads via the ABB i-bus® KNX. The device features a manual operation and displaying of the switching state of the outputs. The 10 A device is especially suited for loads with high surge currents e.g. flourescent lighting acc. EN 60669. The device is powered by KNX and requires no additional power supply.

Installation

  • Mounting Type: DIN-Rail

Environmental

  • Ambient Air Temperature: Operation -5 ... +45 °C
  • Degree of Protection: IP20

Technical

  • Contact Position Indication: ON / OFF
  • Number of Outputs: 12
  • Number of LEDs: 1
  • Maximum Number of Switching Outputs: 12
  • Compatible Bus Systems: KNX (TP)
  • Product Range: KNX
  • Manual Operation: Yes
  • Suitable for C-Load: No
  • Number of Batteries: 0

Electrical

  • Voltage Range: 230 V AC
  • Auxiliary Voltage AC/DC: KNX
  • Output Voltage (Uout): 230 V AC
  • Rated Current (In): 10 A
  • Maximum Switching Current: 10 A
  • Maximum Switching Power: 2500 W
  • Load Type: AC1
  • Power Loss: 6.5 W

Design

  • Color: light grey

Dimensions

  • Width in Number of Modular Spacings: 12
  • Product Net Width: 210 mm
  • Product Net Height: 90 mm
  • Product Net Depth / Length: 63.5 mm
  • Product Net Weight: 0.608 kg
  • Built-In Depth (t2): 64.5 mm

Material Compliance

  • RoHS Status: Following EU Directive 2011/65/EU
  • REACH Information: False - does not contains substances > 0.1 mass percentage
  • SCIP: 0c52fd34-6513-4ebf-981d-88983562145b Germany (DE)

Classifications

  • ETIM 9: EC001097 - Switch actuator for bus system
  • eClass: V11.0 : 27143125
  • UNSPSC: 31251516
  • IDEA Granular Category Code (IGCC): 3268 >> Switch actuator
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Consumer
