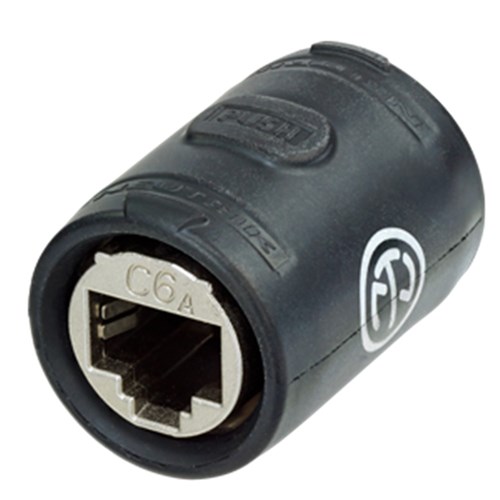

CAT6A feedthrough coupler for cable extensions

Product Code: NU-NE8FFX6-W

Brand
Neutrik
RRP $112.00


Unit of Measure
EACH



1 Year
Features

Neutrik introduces the latest extension of the CAT6A portfolio - the CAT6A feedthrough coupler for cable extensions.

With this revolutionary new design Neutrik has set a groundbreaking new standard for a ruggedized adapter solution.

The new adapter features the 10 GBit bandwidth as well as ingress protection class IP65.

Technical Specifications
Brands Neutrik
Adapter Type Ethernet
  • Details
  • Downloads

etherCON CAT6A feedthrough coupler for cable extensions.



Features & Benefits

  • Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • IP65 protected when mated with NE8MX6*
  • Accommodates standard RJ45 plug
  • Revolutionary small form factor
  • The adapter offers the million-fold proven robust latch lock system
  • The adapters are problem solvers for various intermating problems for professional and semi-professional applications
Product
Title
NE8FFX6-W
Connection Type
Adapter
Gender
female
Electrical
Contact resistance
< 200 mΩ
Dielectric strength
> 1.5 kVdc
Insulation resistance
> 0.5 GΩ
Rated current per contact
1.5 A
Transmission performance
CAT6A, acc. TIA/EIA rating
Class EA, acc. IEC/ISO/EN rating
Power over Ethernet
PoE+ acc. IEEE 802.3at
Mechanical
Insertion force
≤ 50 N
Withdrawal force
≤ 50 N
Lifetime
> 1000 mating cycles
Wiring
Feedthrough
Locking device
Latch lock
Material
Contact plating
Au
Shell
Rubber (EPDM)
Strain relief
CuZn35Pb2, Tin plated
Environmental
Temperature range
- 30 °C to + 80 °C
Protection class
IP65 (in combination with NE8MX*)
