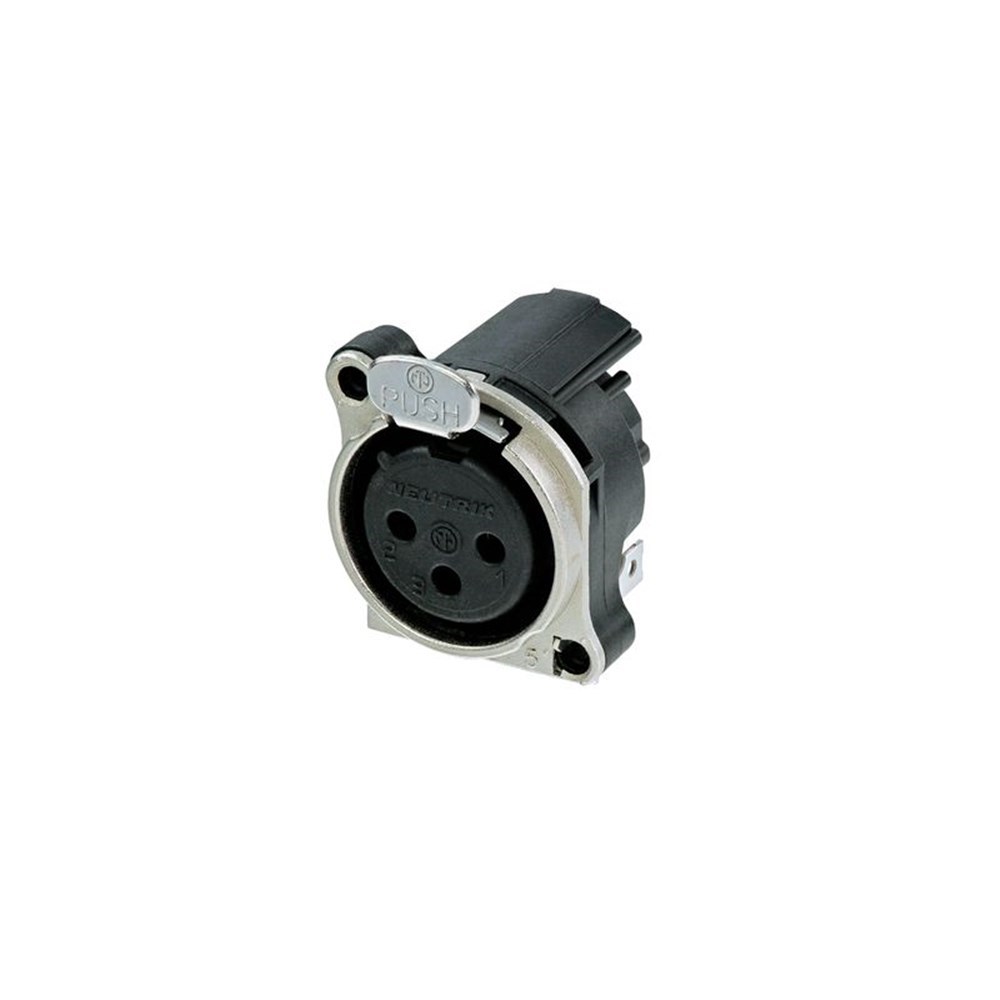

NC3FBH2

3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Features & Benefits

• Smallest XLR receptacles, highest packing density
• Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
• Tulip type female contact
• Housing flammability UL94V-0

Specifications

Product

Title

• NC3FBH2

Connection Type

• XLR

Gender

• female

Electrical

Capacitance between contacts

• ≤ 4 pF

Contact resistance

• ≤ 6 mΩ

Dielectric strength

• 1,5 kVdc

Insulation resistance

• > 10 GΩ (initial)

Rated current per contact

• 6 A

Rated voltage

• < 50 V

Grounding Options

• Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1

Mechanical

Insertion force

• ≤ 20 N

Withdrawal force

• ≤ 20 N

Lifetime

• > 1000 mating cycles

Wiring

• Horizontal PCB mount

Locking device

• Latch lock

Mounting direction

• Rear mounting

Chassis shape

• B

Mounting

• B-Screw

Material

Contacts

• Bronze (CuSn6)

Insert

• Polyamide (PA 6.6 30 % GR)

Locking element

• Steel Ck67

Ring

• Zinc diecast (ZnAl4Cu1)

Flange

• Metal

Environmental

Approvals

• UL

Flammability

• UL 94 V-0

Standard compliance

• IEC 61076-2-103

Protection class

• IP 40

Solderability

• Complies with IEC 68-2-20

Temperature range

• -30 °C to +80 °C
