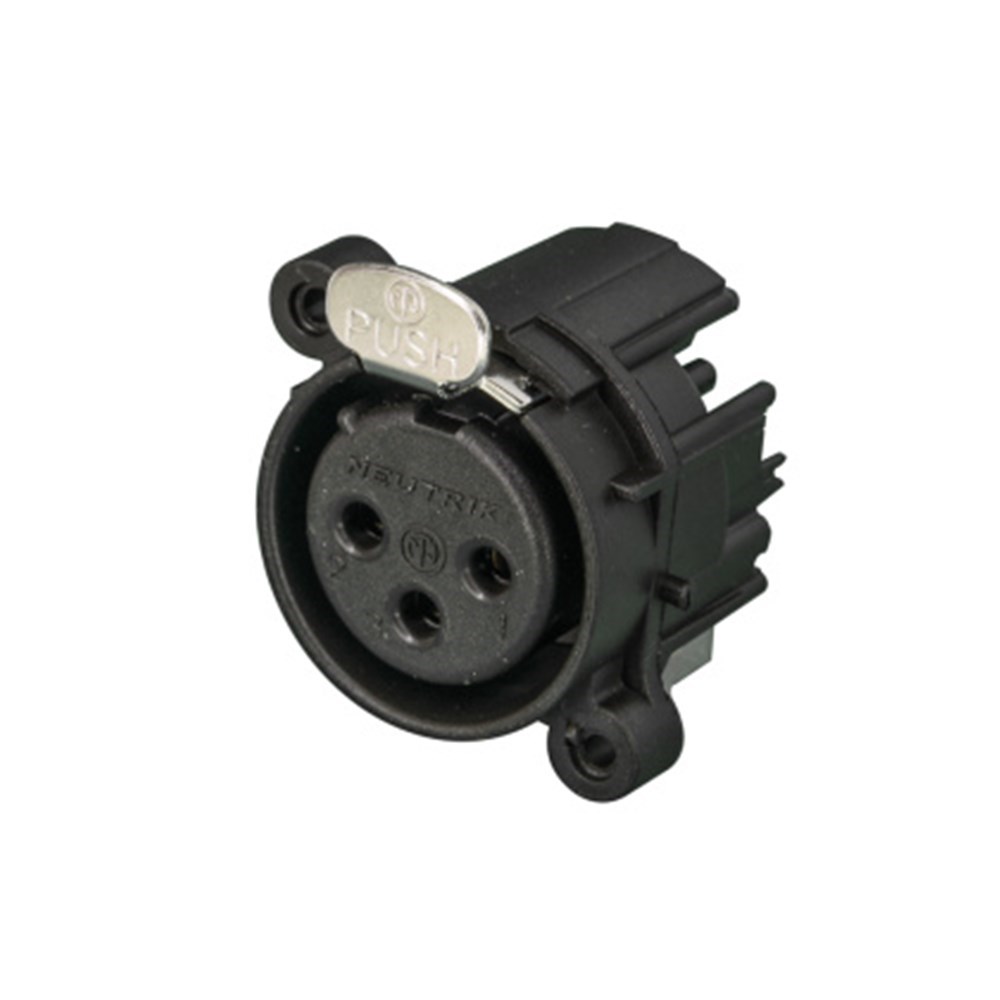

NC3FAHL1

3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, lateral left PCB mount

The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed tuilp type contacts with hard gold plating and polished contact areas. UL recognized component.

Features & Benefits

• Smallest XLR receptacles, highest packing density
• Plastic housing, steel latch lock
• Tulip type female contact
• Polished contact areas and hard gold plating
• Housing flammability UL94V-0

Specifications

Product

Title

• NC3FAHL1

Connection Type

• XLR

Gender

• female

Electrical

Capacitance between contacts

• ≤ 4 pF

Contact resistance

• ≤ 6 mΩ

Dielectric strength

• 1,5 kVdc

Insulation resistance

• > 10 GΩ (initial)

Rated current per contact

• 6 A

Rated voltage

• < 50 V

Grounding Options

• Pin 1 connected direct to front panel and connector shell, no separate ground contact

Mechanical

Insertion force

• ≤ 20 N

Withdrawal force

• ≤ 20 N

Lifetime

• > 1000 mating cycles

Locking device

• Latch lock

Mounting direction

• Rear mounting

Chassis shape

• A

Mounting

• A-Screw

Material

Contacts

• Bronze (CuSn6)

Insert

• Polyamide (PA 6.6 30 % GR)

Locking element

• Steel Ck67

Environmental

Approvals

• UL

Flammability

• UL 94 V-0

Standard compliance

• IEC 61076-2-103

Protection class

• IP 40

Solderability

• Complies with IEC 68-2-20

Temperature range

• -30 °C to +80 °C
