  • 9 pole D-SUB feedthrough, Female to Female - D-Shape Nickel Housing
This is a Special Order Item

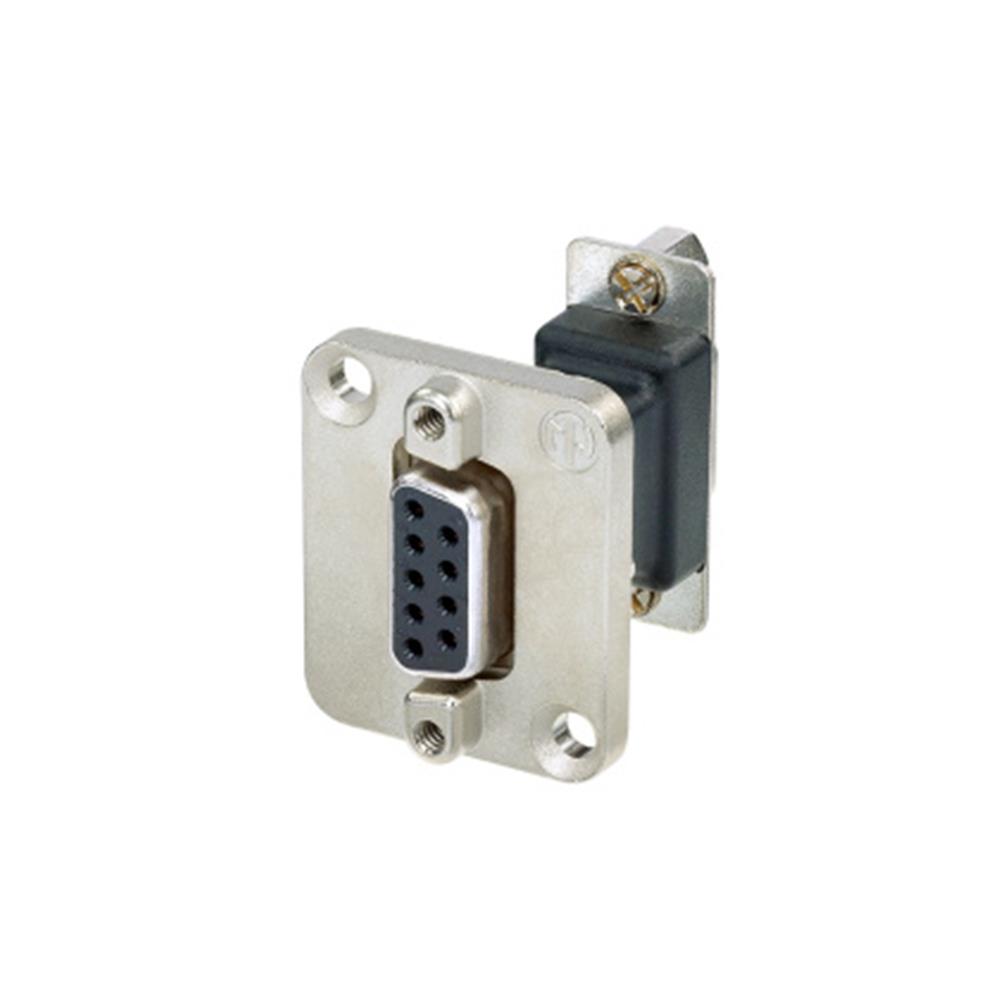

9 pole D-SUB feedthrough, Female to Female - D-Shape Nickel Housing

Product Code: NU-NADB9FF

Brand
Neutrik
RRP $38.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Neutrik
Connector Type D-sub
  • Details
  • Downloads

NADB9FF


9 pole D-SUB feedthrough, female to female, D-shape nickel housing


Features & Benefits

  • Ideal for audio networking and integration of equipment into video systems
  • Universally accepted standard D-shape housing



Specifications

Product


Title

  • NADB9FF

Gender

  • female - female

Electrical


Contact resistance

  • 30 mΩ

Insulation resistance

  • > 5 GΩ

Number of electronical contacts

  • 9

Rated current per contact

  • 3 A

Rated voltage

  • 50 V ac

Dielectric strength

  • > 0.5 kVac

Mechanical


Panel thickness

  • 4 mm

Wiring

  • Feedthrough

Mounting direction

  • Front mounting

Chassis shape

  • D

Material


Contact plating

  • Au

Contacts

  • Brass (CuZn39Pb3)

Insert

  • Steel , tin plated, PBT

Shell

  • Zinc diecast (ZnAl4Cu1)

Shell plating

  • Nickel

Environmental


Flammability

  • UL 94 V-0

Temperature range

  • -25 °C to +85 °C
