  • Dynaudio 9S Active 9.5"long throw subwoofer system. 300w amp module

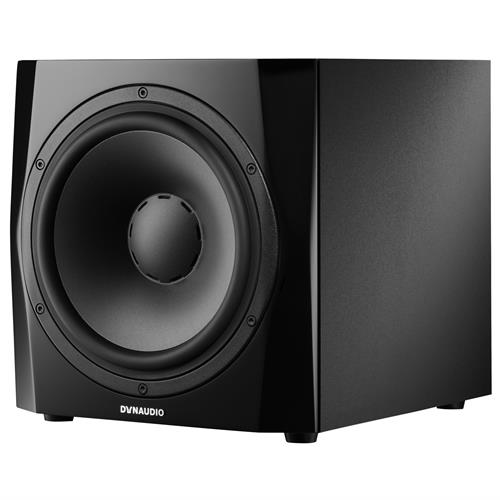

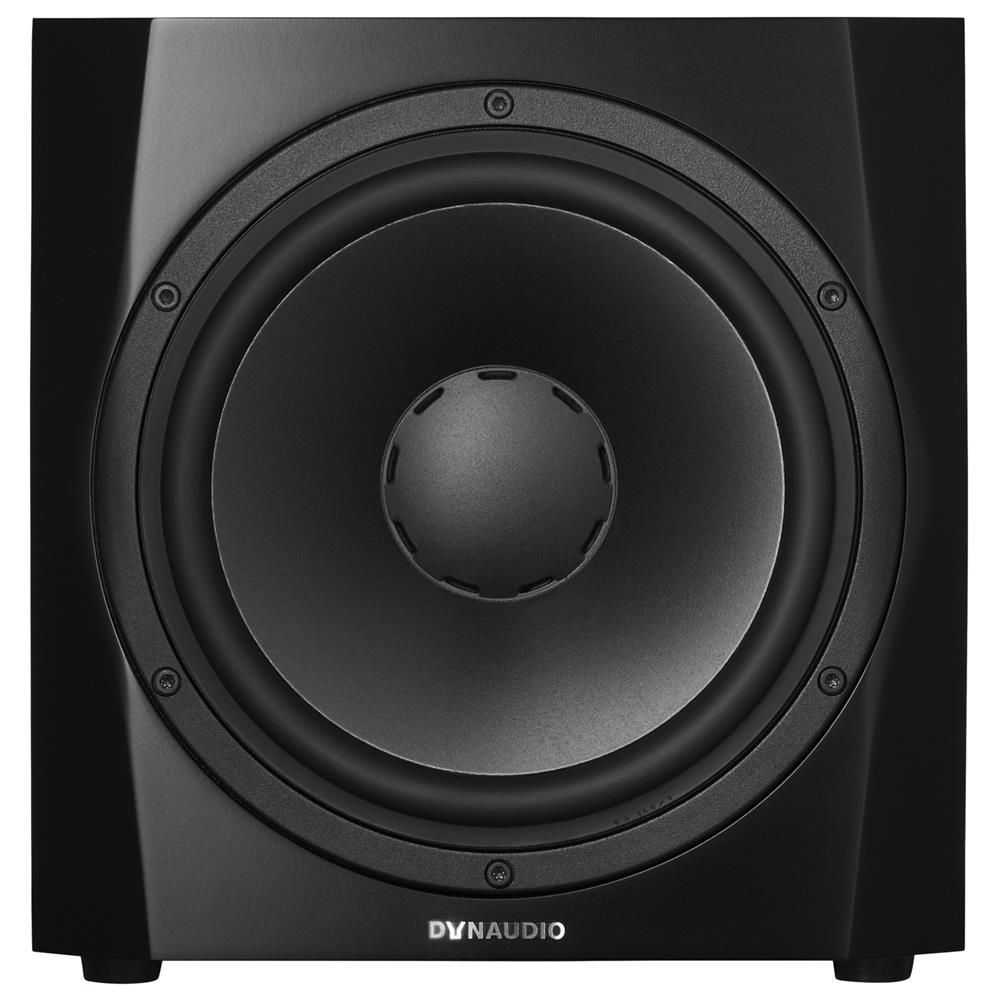

Dynaudio 9S Active 9.5"long throw subwoofer system. 300w amp module

Product Code: DY-9S

Brand
Dynaudio
RRP $2,049.00


Unit of Measure
EACH



Unspecified
Technical Specifications
Brands Dynaudio Professional
Size 9.5"
Speaker Type Studio Monitor
Speaker Type Subwoofer
  • Details
  • Downloads

9S

True bass

The 9S subwoofer is designed to complement LYD and other Dynaudio Pro studio monitors, including the classic BM range.

Studio-quality components and construction make the 9S, with its double front baffle and brand-new 9.5in long-throw driver, the ideal subwoofer for your mixing and mastering projects. We made it a priority to make the 9S compact while ensuring that you get the utmost sonic accuracy. In terms of size, it resembles the BM 9S II that it replaces, but when it comes to performance, it’s actually more comparable to the larger BM 14S II.




Technical specifications

Measured by the best acousticians in the business.

Specification sheet for
part 2
System: Single driver, active 9,5" subwoofer

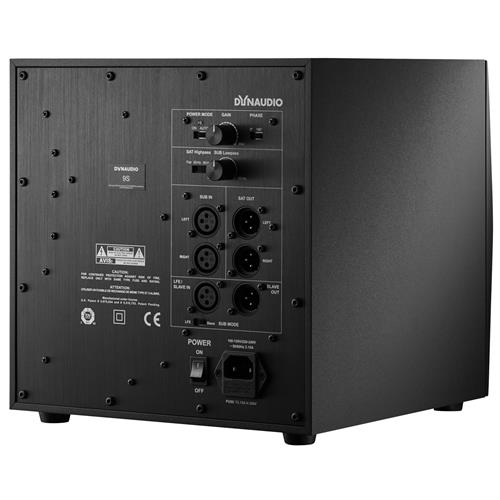

Analog inputs: 1 x XLR LFE, 2 x XLR Stereo
Analog outputs: 1 x XLR Slave Out, 2 x XLR SAT Out
Frequency Response (±3dB): 22Hz - 175Hz
Max SPL: 106dB
Auto ON/OFF: Yes
Box principle: Sealed
High pass filter: Flat / 60 / 80Hz
Low pass filter: 50Hz -150Hz
Specification sheet for Subwoofers part 1
Phase adjustment: 0/180 degrees
Woofer: 24cm MSP
Amplifier: 300W Class-D
AC power input: 100-120V/200-240V 50/60Hz
Standby power consumption: < 0.5W
Maximum power consumption: 350W
Weight: 10.5kg / 23.1lb
Dimensions (W x H x D): 266 x 276 x 320mm
Shipping box dimensions (W x H x D): 400 x 430 x 400mm
