4K HDR 4:4:4 60Hz HDBaseT™ 8x8 Matrix Switch with Assignable Audio De-Embed and 4 mirrored HDMI outputs (4K 35m/114ft, 1080p 70m/230ft)

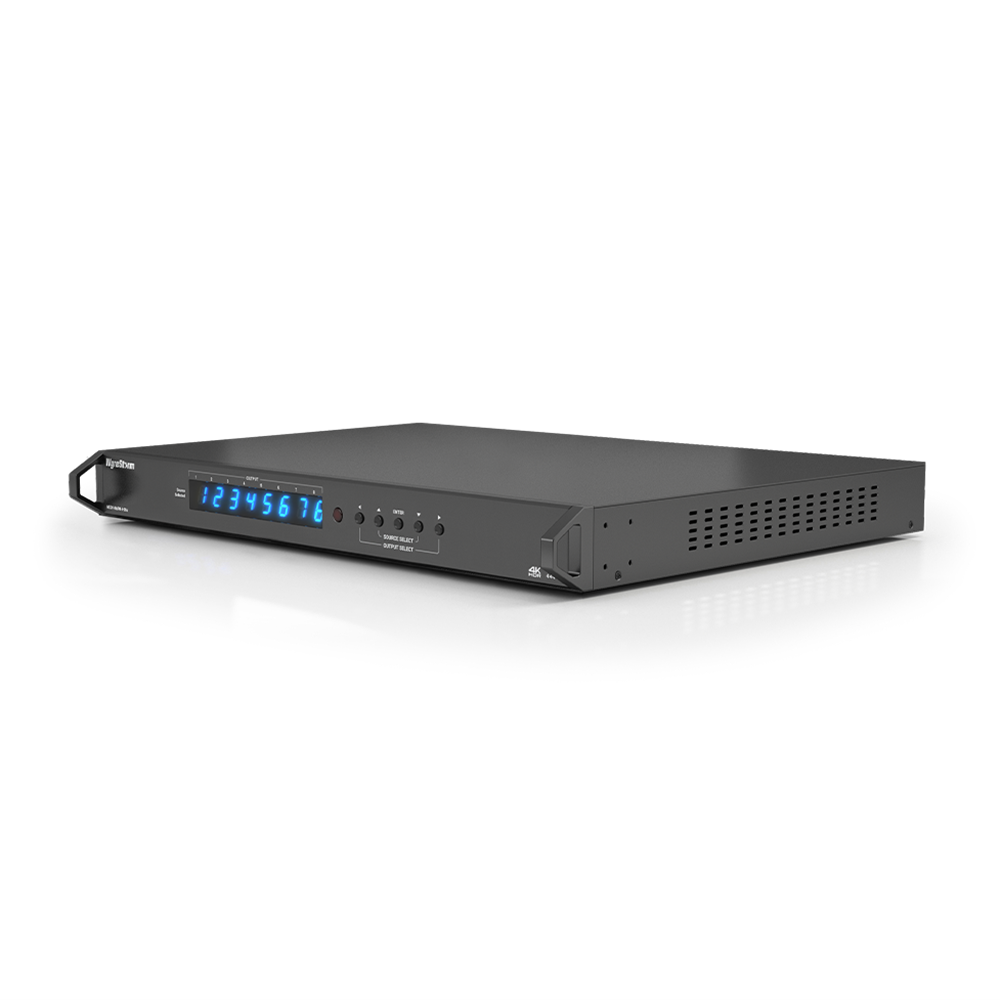

MXV-0808-H2A
Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0808-H2A brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses lossless compression technology to ensure signal integrity.

With 8 HDBaseT zone outputs and 4 mirrored HDMI outputs–which can be paired with WyreStorm’s hybrid HDMI cables or any extender–and CEC triggering for all 12 connected screens, the MXV-0808-H2A enhances the offering for the modern home or commercial installation.

HDMI 2.0 MAXED OUT!
Bringing our lossless compression technology from the flagship H2XC matrix platform, the MXV 8x8 can handle both current & future video content technologies up to 4K/60 4:4:4 and high framerate HDR. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be sent to its 6 HDBaseT zones using the latest in lossless compression technology.

DE-EMBEDDED AUDIO
With audio functionality to match its video capability, the MXV 8x8 has the ability to extract audio signals from either source devices or from the output, following the zone. Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR's or downmix to stereo using the EXP-CON-DAC-D.

CEC TRIGGERING
Working automatically on signal presence or triggered via the API, the MXV 8x8 can send power trigger commands to all compatible connected screens or projectors meaning an integrated autonomous control solution.

MIRRORED HDMI OUTPUTS
In addition to the audio breakout ports, the MXV 8x8 also features four HDMI mirrored output ports which can be paired with any of WyreStorm’s HAOC hybrid optical HDMI cables for transmission up to 50m/164ft or any extender for transmission of HDBaseT or OM3 fiber.


FEATURES

  • Use with RXV-35-4K for 35m/115ft transmission of 2160p 4:4:4/60

  • 4K HDR HDBaseT 8x8 Matrix Switch, supporting:
  • Content up to 4K/60 4:4:4 & RGB 8-bit
  • The latest HDR standards, including 60Hz HDR-10 & HLG and Dolby Vision™ at 30Hz
  • HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
  • HD Multichannel audio up to DTS:X and Dolby Atmos™ to all outputs
  • Proprietary compression algorithm enables 60Hz 4K UHD content (4:4:4 or HDR) to be sent over HDBaseT to 35m/115ft
  • 4 HDMI outputs mirroring HDBaseT Outputs 1-4 for connecting additional slave screens, projectors or AVRs, bringing the total number of connected displays to 12
  • HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
  • Compatible with DVI-I and DP++ v1.3 signals from compatible devices
  • 8 Assignable audio outputs allow audio to be independently de-embedded from sources or outputs via Toslink optical
  • A/V Mute mode allows the routing of a signal to an output to be deactivated
  • API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
  • SmartEDID™ feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
  • Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
  • Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
  • WebUI includes full EDID management to read, copy, store or import EDID from connected devices
  • Assign a different EDID to each connected source device
  • Flexible control options – front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
  • IR learning function allows source switching in a zone to be triggered by an IR command other than the default
  • 3.5mm jack input for receiving local IR commands out of line-of-sight
  • Simple switching matrix remote control included, which can be learned into a universal remote handset to allow the control of multiple devices from one handset
  • Option for end-user WebUI switching interface
  • Compact 1U chassis with adjustable depth rack mounting brackets included
  • US, UK, EU & AU Power cables included
  • Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
  • Capable of transmitting content to 50m/164ft using WyreStorm HAOC range of hybrid optical HDMI cables

SPECIFICATIONS

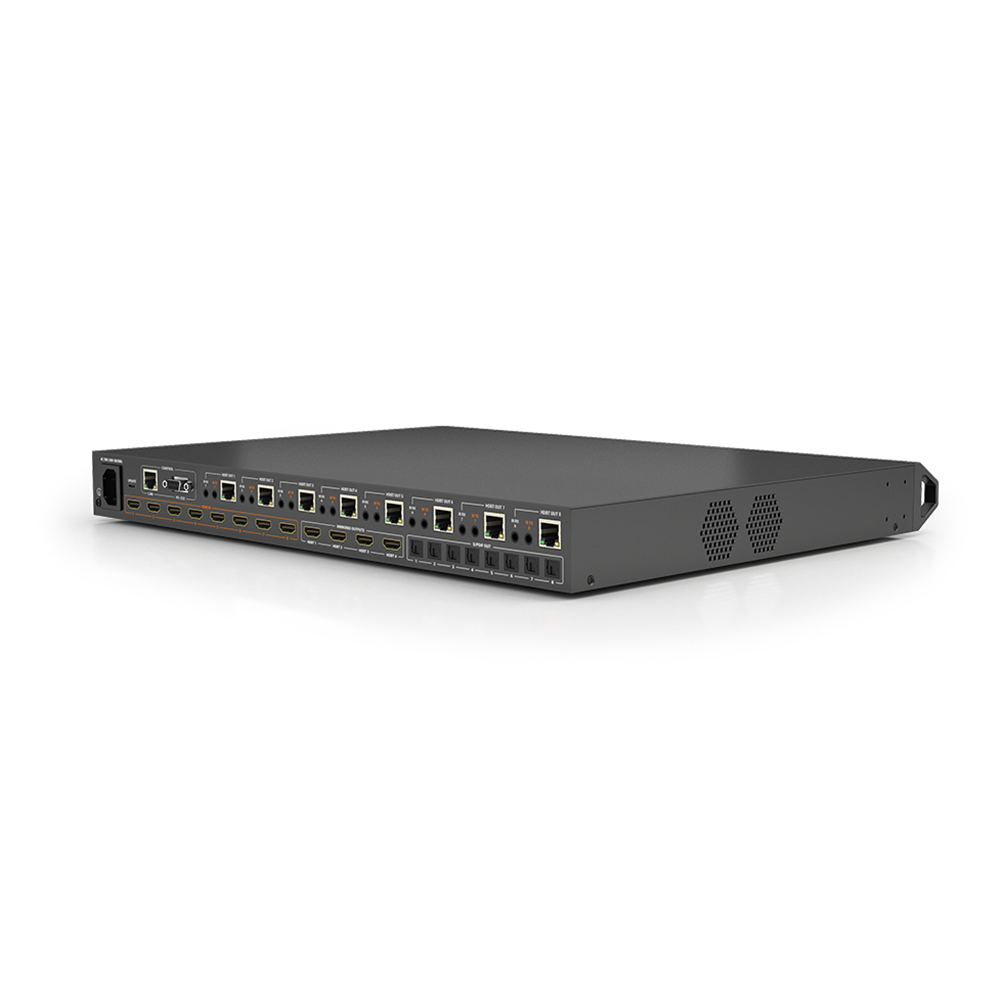

Audio and Video

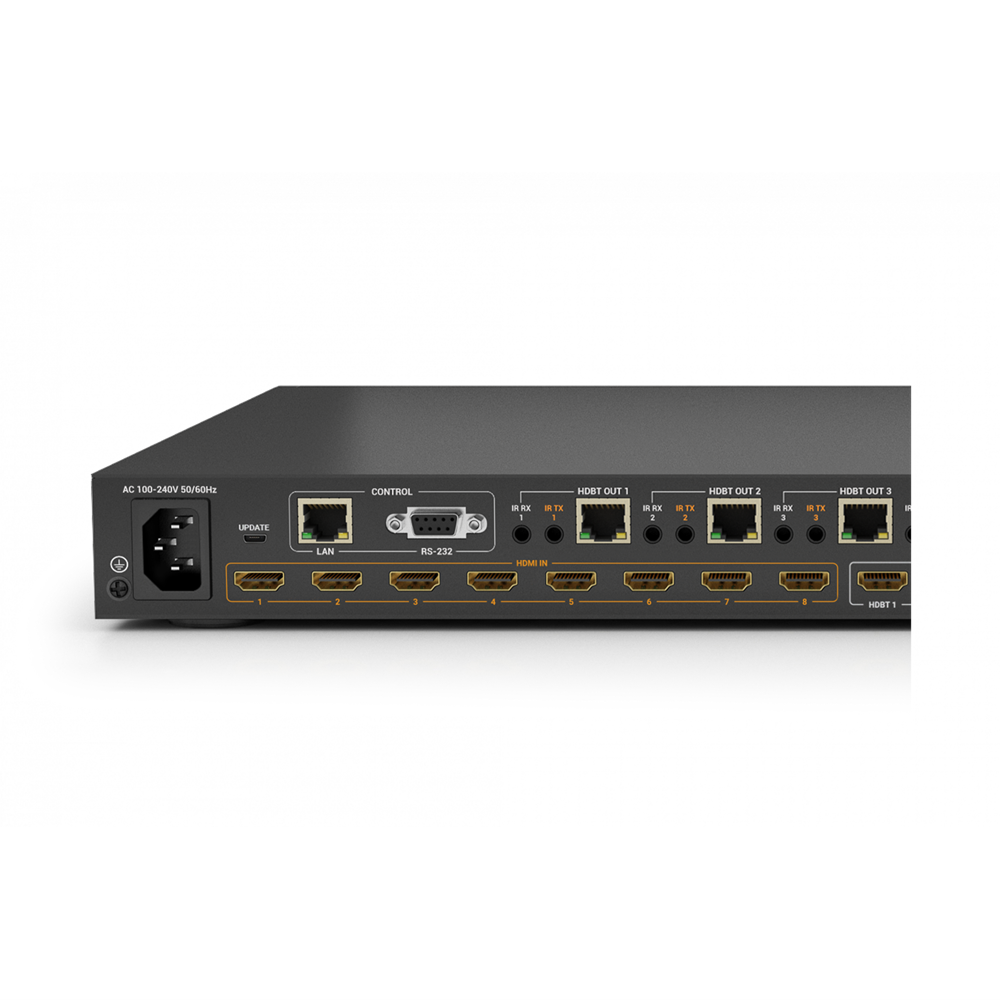

  • Inputs: 8x HDMI In: 19-pin type A
  • Outputs:

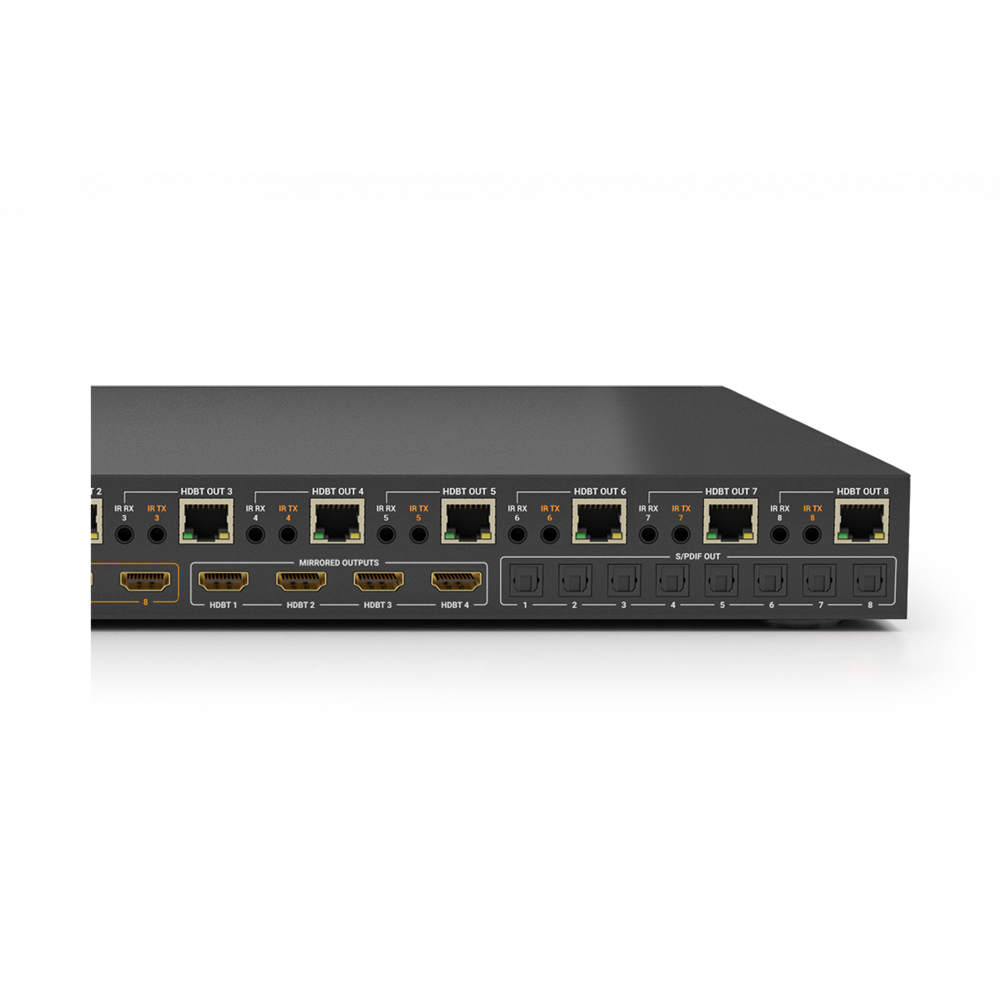

    • 8x HDBT Out: 8-pin RJ-45 Female
    • 8x S/PDIF Out: TOSLINK (Digital Optical)
    • 4x HDMI Out: 19-pin type A
  • Output Video Encoding: HDBaseT™ Class B
  • Encoding Data Rate: 9.2Gbps
  • End to End Latency: 10μs (micro seconds)
  • Audio Formats:
    • Analog: 2ch Analog
    • S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1ch
    • HDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X
  • Video Resolutions (Max)Video ResolutionsHDMICat6Cat6a/7
    1920x1080p @60Hz 12bit15m/49ft60m/197ft70m/230ft
    1920x1080p @120Hz 12bit7m/23ft35m/115ft40m/131ft
    3840x2160p @24Hz 10bit 4:2:0 HDR3m/10ft35m/115ft40m/131ft
    3840x2160p @30Hz 8bit 4:4:47m/23ft35m/115ft40m/131ft
    3840x2160p @60Hz 10bit 4:2:0 HDR3m/10ft35m/115ft40m/131ft
    4096x2160p @60Hz 8bit 4:2:07m/23ft35m/115ft40m/131ft
    4096x2160p @60Hz 8bit 4:4:43m/10ft35m/115ft40m/131ft
  • Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
  • Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
  • Maximum Pixel Clock: HDMI: 600MHz | HDBaseT: 297MHz
Communication and Control
  • HDMI:
    • HDMI 2.0 | HDCP 2.2 | EDID
    • Input supports DVI/D and DisplayPort Dual-Mode (DP++) v1.3 with adapter (not included)
  • HDBaseT: HDMI 2.0 | HDCP 2.2 | EDID | 1-way PoH | Bidirectional IR
  • CEC: CEC power triggering | Requires CEC compatibility | HDMI outputs only
  • IR: 8x IR RX: 3.5mm (1/8in) TRS Stereo | 8x IR TX: 3.5mm (1/8in) TS Mono
  • RS-232: 1x RS-232: 9-pin DB9 Female | Matrix Control | Telnet commands supported
  • Ethernet: 1x LAN: 8-pin RJ-45 Female | Web UI | Matrix Control
Power
  • Power Supply: 100~240V AC 50/60Hz
  • Max Power Consumption: 168W
Environmental
  • Operating Temperature: 0 ~ +45°C (32 ~ +113 °F), 10% ~ 90%, non-condensing
  • StorageTemperature: -20 ~ +70°C (-4 ~ +158 °F), 10% ~ 90%, non-condensing
  • Maximum BTU: 574 BTU/hr
Dimensions & Weight
  • Rack Units: 1U
  • Height: 43.5mm/1.72in
  • Width: 440mm/17.33in
  • Depth: 330mm/13in
  • Weight: 4.95kg/10.89lbs
Regulatory
  • Safety and Emission CE | FCC | RoHS | RCM
