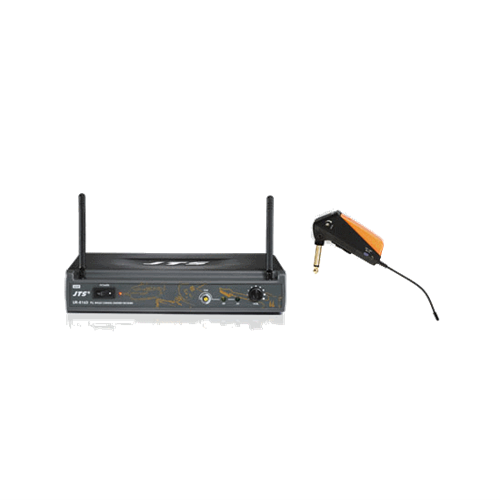

Name: 816D system 520-544MHz UR-816D + UT-16GTP + 508GT half rack rx, guitar plug tx
Price: 609 NZD

UR-816D
Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
S/N ratio	> 105dB
T.H.D.	<0.6%@1KHz
Display	LED
Display Contents	Antenna A/B, RF/AF Status
Controls	Power On/Off, Channel Selecting, Audio Level
Audio Output Level	-12dB
AF Output Impedance	600Ω
Squelch	Pilot Tone, Noise and Mute
Operation Voltage	12-18 VDC, 200mA
Output Connector	1 Balanced XLR socket 1 Unbalanced Ø6.3mm phone jack
Dimension(m/m	210mm (W)* 40mm (H)* 171mm (D)

UT-16GTP
Frequency Preparation	PLL Synthesized Control
Carrier Frequency Range	502~960 MHz
RF Outputs	Maximum 10mW
Stability	±10KHz
Frequency Deviation	±48KHz
LED Display	Power On/Off, Low battery
Controls	Power On/Off, AF Level, Channel Selecting, Mute
Spurious Emissions	<-50 dBC
Audio Frequency Response	40~18,000 Hz
Battery	LR03, AAA 1.5V

Microphones
