8012DB system 638-674MHz RU-8012DB + 2 x RU-850LTH with 2 x h'held transmitters

Product Code: JP-8012DBKITHHB4

Brand
JTS
RRP $1,179.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

JP-8012DBKITHHB4

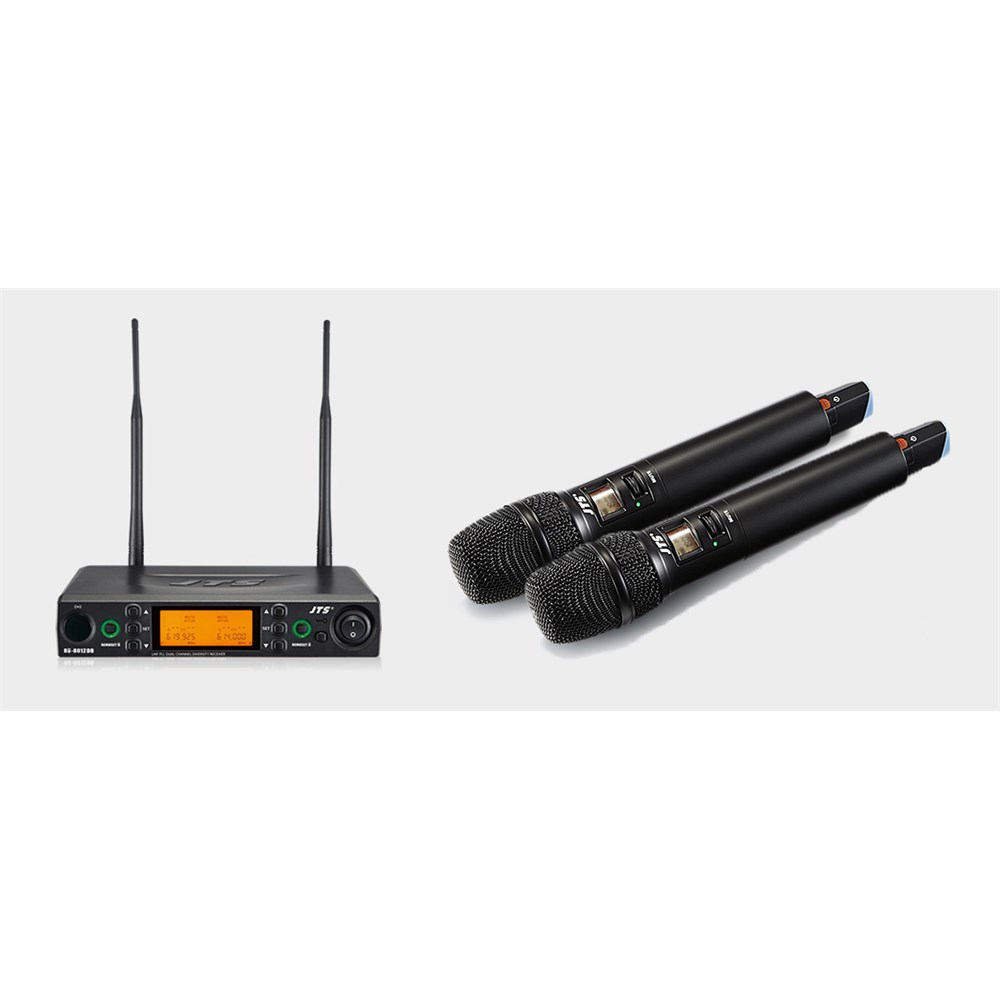

8012DB 2-channel system, 638-674MHz,

includes

  • RU-8012DB receiver
  • 2 x RU-850LTH handheld transmitters



RU-8012DB


Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand
general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.



SPECIFICATIONS


Frequency Preparation

  • PLL Synthesized Control

Carrier Frequency Range

  • 638-674MHz

Frequency Setting

  • Ultrasonic / REMOSET (Transmit)

Receiving Mode

  • Antenna Diversity

Bandwidth

  • 36MHz

S/N Ratio

  • > 105dB

T.H.D

  • <0.6%@1KHz

Sensitivity

  • -95dBm,S/N>80dB

Rejection Ratio

  • >80 dB

Frequency Response

  • 50Hz~16KHz±2dB

Antenna Type

  • BNC Socket

Antenna Booster Power

  • DC12~15V/100mA

Display Contents

  • Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter, RF Meter, Battery Status

Display

  • LCD

Controls

  • Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad

Audio Output Level

  • Ref/ ±22.5KHz Dev@1KHz Tone
  • ψ6.3 Phone Jack/ -10dBV
  • XLR Jack/ -4dBV(Line) . -24dBV(MIC)

AF Output Impedance

  • 600Ω

Squelch

  • Pilot Tone, Noise and Mute

Output Connector

  • 2 independent balanced XLR and 2 Ø6.3mm unbalanced.

Power Supply

  • DC12~15V/500mA

Dimension(m/m)

  • 212.3mm(W)* 38.3mm(H)* 144mm(D)

RU-850LTH

This innovative transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

A quick Lock On key is built inside. Recharging circuit and connecter are already built in case users want to upgrade the system.



SPECIFICATIONS

Frequency Preparation

  • PLL Synthesized Control

Carrier Frequency Range

  • 638-674MHz

Frequency Setting

  • REMOSET U(Receive)

RF Outpus

  • Low / High

Stability

  • <±10KHz@Fc

Frequency Deviation

  • ±48KHz

Spurious Emissions

  • <-50dBc

Function

  • Mute, Auto Power Off, Sensitivity Adjust, Low Battery

Display

  • LCD+LED

Controls

  • Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock

Battery

  • UM3, AA x2
