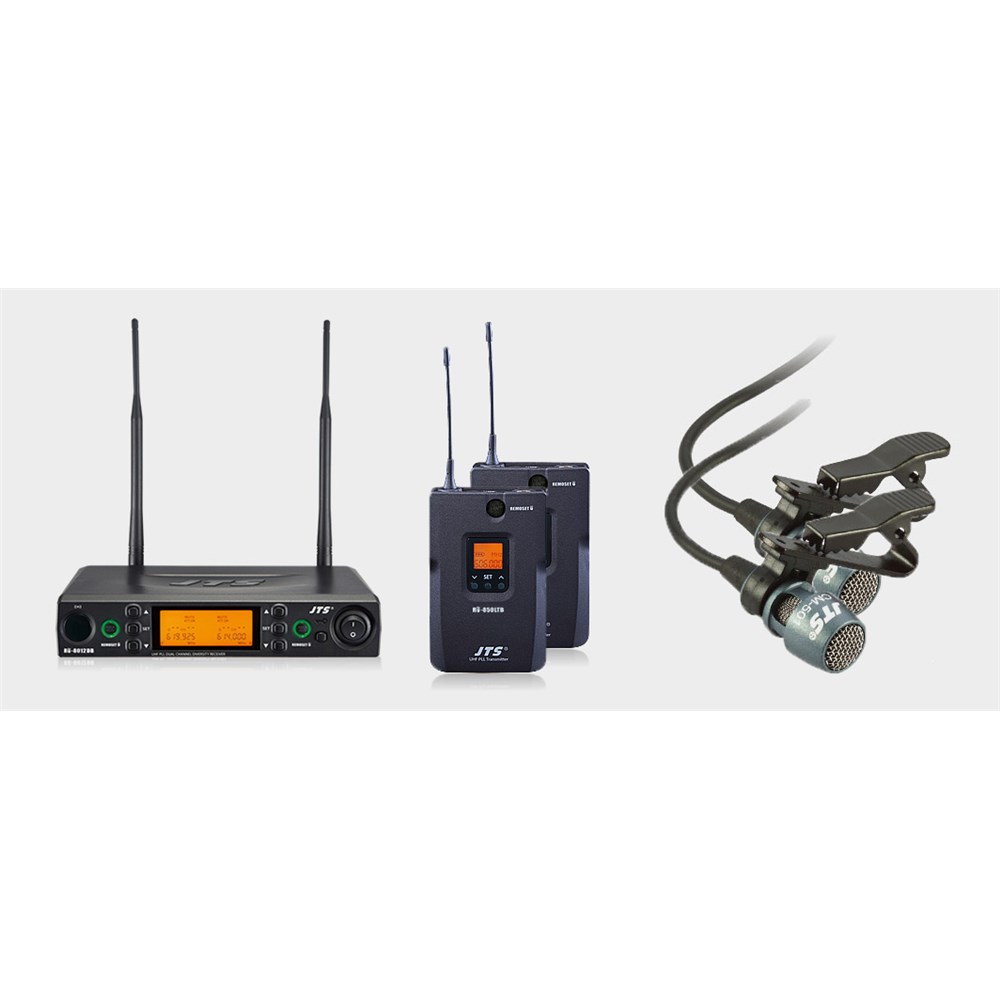

RU-8012DB

Based on US-8001 successful experience RU-8012 is designed with JTS 2nd generation REMOSET technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The REMOSET technology sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 520-556MHz

Frequency Setting

• Ultrasonic / REMOSET (Transmit)

Receiving Mode

• Antenna Diversity

Bandwidth

• 36MHz

S/N Ratio

• > 105dB

T.H.D

• <0.6%@1KHz

Sensitivity

• -95dBm,S/N>80dB

Rejection Ratio

• >80 dB

Frequency Response

• 50Hz~16KHz±2dB

Antenna Type

• BNC Socket

Antenna Booster Power

• DC12~15V/100mA

Display Contents

• Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter, RF Meter, Battery Status

Display

• LCD

Controls

• Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad

Audio Output Level

• Ref/ ±22.5KHz Dev@1KHz Tone
• ψ6.3 Phone Jack/ -10dBV
• XLR Jack/ -4dBV(Line) . -24dBV(MIC)

AF Output Impedance

• 600Ω

Squelch

• Pilot Tone, Noise and Mute

Output Connector

• 2 independent balanced XLR and 2 Ø6.3mm unbalanced.

Power Supply

• DC12~15V/500mA

Dimension(m/m)

• 212.3mm(W)* 38.3mm(H)* 144mm(D)

RU-850LTB

This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

To cope with music instruments a pad of -20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 520-556MHz

Frequency Setting

• REMOSET U(Receive)

RF Outpus

• Low / High

Stability

• <±10KHz@Fc

Frequency Deviation

• ±48KHz

Spurious Emissions

• <-50dBc

Function

• Mute, Auto Power Off, Sensitivity Adjust, Low Battery

Display

• LCD + LED

Input Connector

• 4P Mini XR

Controls

• Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock

Battery

• UM3, AA x2

CM-501

• Uni-direction for high-quality voice pick-up.
• Wide dynamic range and frequency response for excellent sound reinforcement.
• Small size for minimum visibility.
• Together with clip for easy attaching to a tie, lapel, dress etc.

SPECIFICATIONS

Connector

• 4P Mini XLR

Frequency Response

• 100~15,000 Hz

Polar Pattern

• Cardioid

Sensitivity (at 1KHz)

• -60±3 dB* (1mV)*0dB=1V/μbar

Impedance

• 2.2kΩ

Max. SPL for 1% THD

• 130dB

Dimension(mm)

• Ø10.1mm(W)* 26.4mm(H)

Net Weight

• 21.5g
