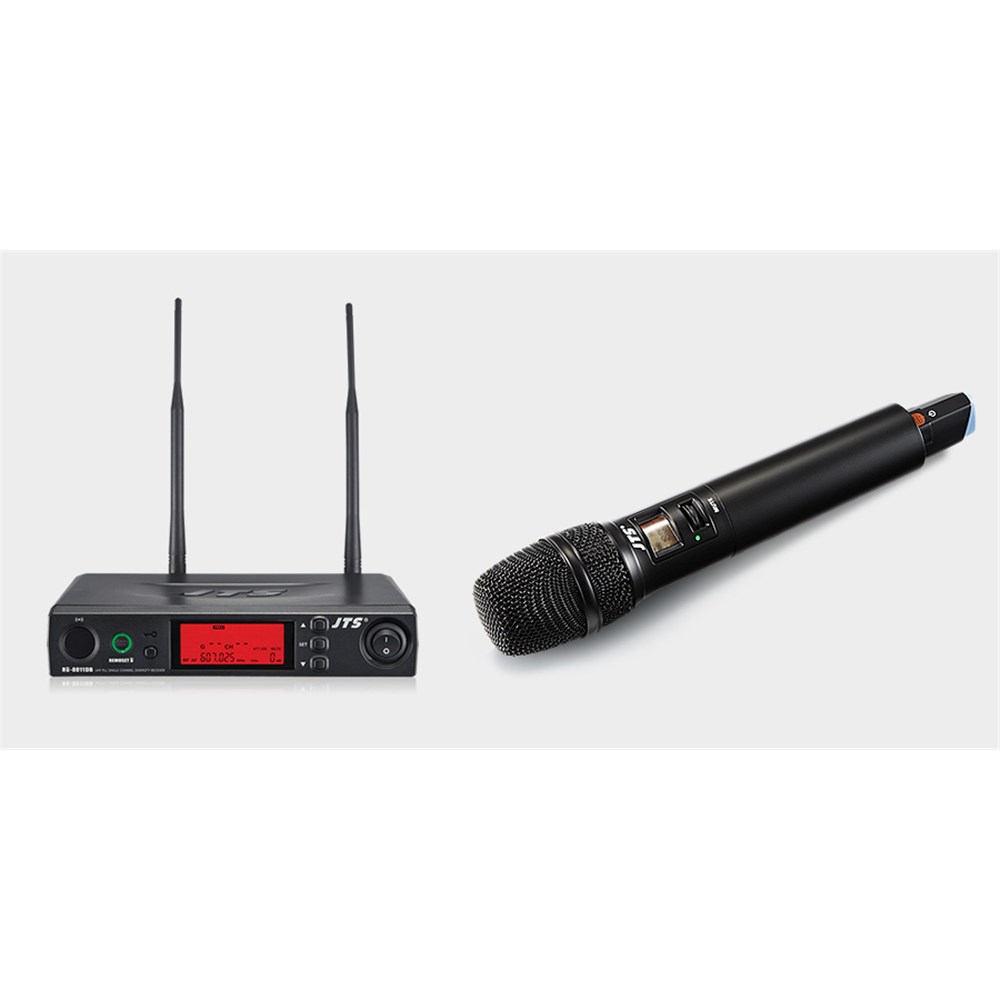

RU-8011DB

This product is a full feature version of RU-8011D. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 520-556MHz

Frequency Setting

• REMOSET U

Receiving Mode

• Antenna Diversity

Bandwidth

• 36MHz

S/N Ratio

• >105dB(A)

T.H.D

• <0.6%@1KHz

Sensitivity

• -95dBm,S/N>80dB

Rejection Ratio

• >80 dB

Frequency Response

• 50Hz~16KHz±2dB

Antenna Type

• BNC Socket

Antenna Booster Power

• DC12~15V/100mA

Display

• LCD

Display Contents

• Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume

Controls

• Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF)

Audio Output Level

• Ref/ ±22.5KHz Dev@1KHz Tone
• ψ6.3 Phone Jack/ -10dBV
• XLR Jack/ -4dBV(Line) ? -24dBV(MIC)

Audio Output Impedance

• 600Ω

Squelch

• Pilot Tone & Noise Mute

Output Connector

• 1 independent balanced XLR and one Ø6.3mm unbalanced.

Power Supply

• DC12~15V/300mA

Dimension (mm)

• 212.3mm(W)* 38.3mm(H)* 144mm(D)

Notes

• Acutal product specifications may vary depending on region

RU-850LTH

This innovative transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

A quick Lock On key is built inside. Recharging circuit and connecter are already built in case users want to upgrade the system.

Specifications

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 520-556MHz

Frequency Setting

• REMOSET U(Receive)

RF Outpus

• Low / High

Stability

• <±10KHz@Fc

Frequency Deviation

• ±48KHz

Spurious Emissions

• <-50dBc

Function

• Mute, Auto Power Off, Sensitivity Adjust, Low Battery

Display

• LCD+LED

Controls

• Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock

Battery

• UM3, AA x2
