8011DB system 520-556MHz RU-8011DB + RU-850LTB/CM-501 with beltpack transmitter

Product Code: JP-8011DBKITBB1

Brand
JTS
RRP $729.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

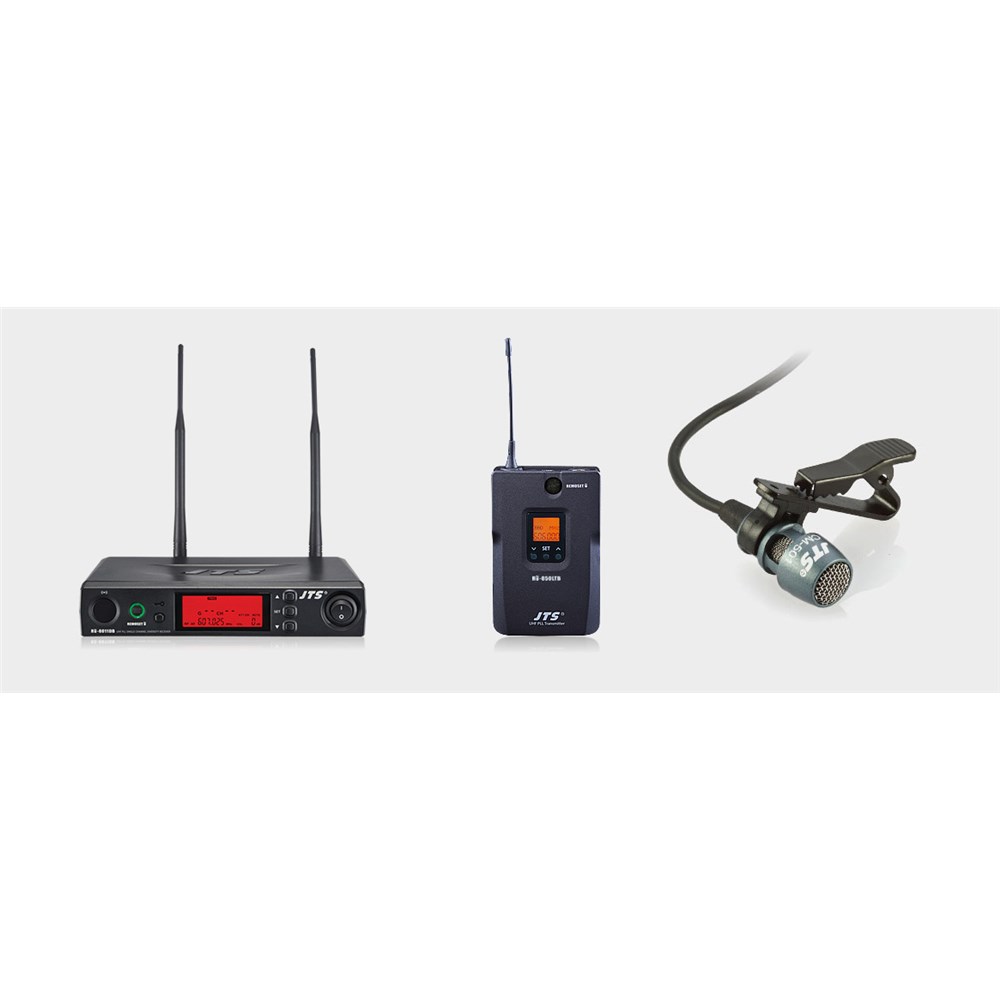

JP-8011DBKITBB1



8011DB system, 520-556MHz

includes

  • RU-8011DB receiver
  • RU-850LTB belt-pack transmitter
  • CM-501 lapel mic

RU-8011DB

This product is a full feature version of RU-8011D. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.

SPECIFICATIONS

Frequency Preparation

  • PLL Synthesized Control

Carrier Frequency Range

  • 520-556MHz

Frequency Setting

  • REMOSET U

Receiving Mode

  • Antenna Diversity

Bandwidth

  • 36MHz

S/N Ratio

  • >105dB(A)

T.H.D

  • <0.6%@1KHz

Sensitivity

  • -95dBm,S/N>80dB

Rejection Ratio

  • >80 dB

Frequency Response

  • 50Hz~16KHz±2dB

Antenna Type

  • BNC Socket

Antenna Booster Power

  • DC12~15V/100mA

Display

  • LCD

Display Contents

  • Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume

Controls

  • Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF)

Audio Output Level

  • Ref/ ±22.5KHz Dev@1KHz Tone
  • ψ6.3 Phone Jack/ -10dBV
  • XLR Jack/ -4dBV(Line) ? -24dBV(MIC)

Audio Output Impedance

  • 600Ω

Squelch

  • Pilot Tone & Noise Mute

Output Connector

  • 1 independent balanced XLR and one Ø6.3mm unbalanced.

Power Supply

  • DC12~15V/300mA

Dimension (mm)

  • 212.3mm(W)* 38.3mm(H)* 144mm(D)

Notes

  • Acutal product specifications may vary depending on region

RU-850LTB

This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

To cope with music instruments a pad of -20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system.



SPECIFICATIONS

Frequency Preparation

  • PLL Synthesized Control

Carrier Frequency Range

  • 520-556MHz

Frequency Setting

  • REMOSET U(Receive)

RF Outpus

  • Low / High

Stability

  • <±10KHz@Fc

Frequency Deviation

  • ±48KHz

Spurious Emissions

  • <-50dBc

Function

  • Mute, Auto Power Off, Sensitivity Adjust, Low Battery

Display

  • LCD + LED

Input Connector

  • 4P Mini XR

Controls

  • Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock

Battery

  • UM3, AA x2

CM-501

  • Uni-direction for high-quality voice pick-up.
  • Wide dynamic range and frequency response for excellent sound reinforcement.
  • Small size for minimum visibility.
  • Together with clip for easy attaching to a tie, lapel, dress etc.

SPECIFICATIONS

Connector

  • 4P Mini XLR

Frequency Response

  • 100~15,000 Hz

Polar Pattern

  • Cardioid

Sensitivity (at 1KHz)

  • -60±3 dB* (1mV)*0dB=1V/μbar

Impedance

  • 2.2kΩ

Max. SPL for 1% THD

  • 130dB

Dimension(mm)

  • Ø10.1mm(W)* 26.4mm(H)

Net Weight

  • 21.5g
