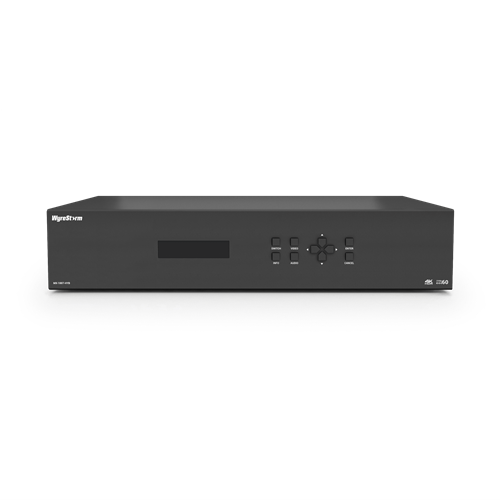

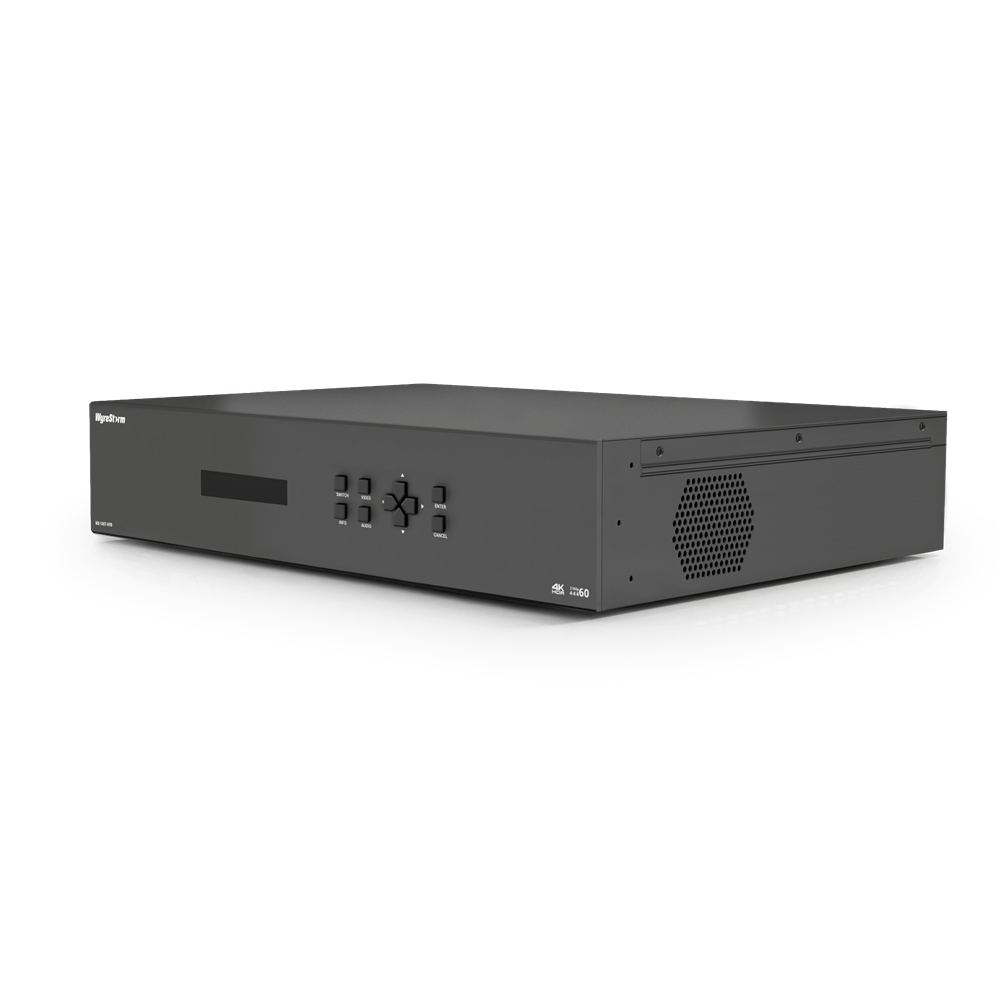

Advanced 10×7 Seamless Matrix Switch for Presentation Systems with USB-C, HDMI, HDBT, Dante Audio, and NetworkHD Connectivity

The MX-1007-HYB is the next generation of matrix switchers. Featuring seamless 4K60Hz switching for crystal-clear visuals and uninterrupted enjoyment. Simplify your setup with HDBT™ technology, offering long-distance audio and video transmission over a single cable for a clutter-free environment. Embrace scalability with NetworkHD 500, and elevate your audio with integrated Dante technology and a 100- Watt Amplifier with DSP, ensuring a powerful, immersive auditory experience. Streamline and enhance your audiovisual experience in any space.

4K60Hz SEAMLESS SWITCHING
Effortless and seamless switching for crystal-clear visuals and high-resolution content.
Enhanced viewing experience with stunning detail and clarity for presentations, lectures, and entertainment,
without any interruptions during source transitions.

HDBT™ IN/OUT
Long-distance transmission of audio and video signals over a single cable.
Simplified installation, reduced cable clutter, and increased flexibility in setting up displays and sources.

NETWORKHD 500 IN/OUT
Transmit audio and video signals over an 1g network for scalable and flexible distribution. Effortless integration into larger AV systems, supporting the delivery of high-quality content to multiple displays over existing network infrastructure, ideal for high end educational or corporate environments.

BUILT-IN POWER AMPLIFIER FOR DIRECT SPEAKER DRIVE
The matrix features a built-in power amplifier capable of directly driving a pair of stereo speakers (25 Watts per channel @ 4Ω or 8Ω). Streamlined audio setup with the ability to power stereo speakers directly from the matrix. The internal amplifier synergizes seamlessly with the onboard DSP, ensuring optimal audio quality for a rich and immersive auditory experience.

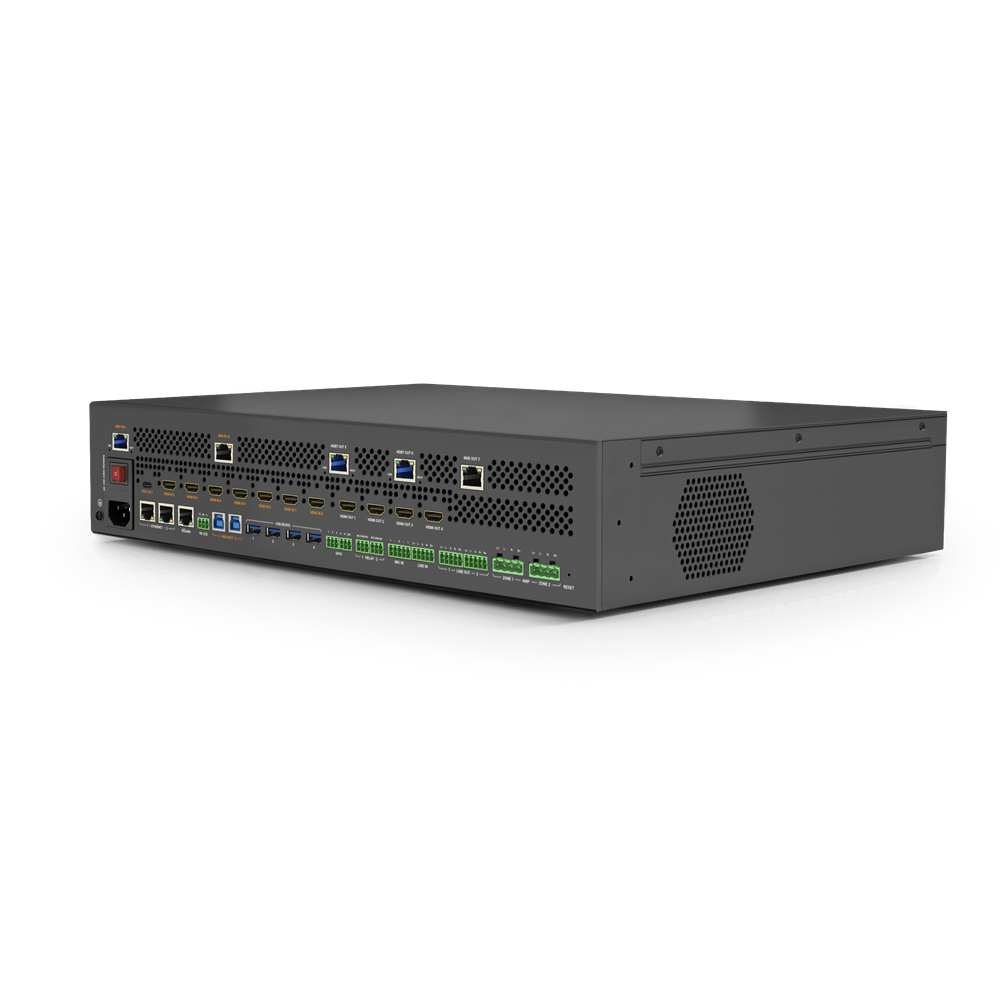

Technical Specifications

AUDIO & VIDEO

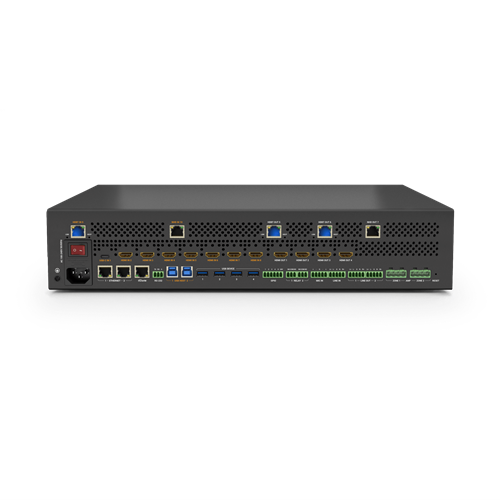

• Inputs
  • 1x USB-C In with Alt-Mode
  • 7x HDMI In: 19-pin type A
  • 1x HDBT 3.0 In: RJ-45 Female
  • 1x NetworkHD 500 In: RJ-45 Female
  • 2x USB-B Host
• Outputs
  • 4x HDMI Out: 19-pin type A
  • 2x HDBT 3.0 Out: RJ-45 Female
  • 1x NetworkHD 500 Out: RJ-45 Female
  • 4x USB-A Device
  • 4x GPIO Phoenix Port
  • 2x Relay Phoenix Port
• Output Video Encoding
  • HDBaseT | JPEG 2000
• Encoding Data Rate
  • 18Gbps
• Audio Formats
  • PCM 2ch Analog | Dante 4×4
• Video Resolution (Max)
  • 1920x1080p @60Hz
  • 3840x2160p @60Hz 4:2:0
  • 3840×2160 @60Hz 4:4:4
• Maximum Pixel Clock
  • 600MHz

COMMUNICATION & CONTROL

• HDMI
  • HDMI 2.0 | HDCP 2.3 | EDID | CEC
• HDBaseT
  • HDMI 2.0 | HDCP 2.3 | EDID | USB 2.0 | CEC | RS-232 | 1-way PoH
• NetworkHD
  • HDMI 2.0 | HDCP 2.3 | EDID | USB2.0 | RS-232
• Dante Ultimo 4×4
  • 1 x 1GbE RJ-45
  • 1x RS-232: 3-pin Phoenix Female | Matrix Control Routable RS-232 Device Control | Telnet commands supported
• RS-232
  • 1x RS-232: 3-pin Phoenix Female | Matrix Control Routable RS-232 Device Control | Telnet commands supported
• Ethernet
  • 2x LAN: 8-pin RJ-45 Female | Web UI | Matrix Control and Ethernet

POWER

• Power Supply
  • 100~240V AC 50/60Hz

ENVIRONMENTAL

• Operating Temperature
  • 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
• Storage Temperature
  • -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

DIMENSIONS & WEIGHT

• Rack Units/Wall Box
  • 2U
• Height
  • 88mm/3.46in
• Width
  • 440mm/17.33in
• Depth
  • 362mm/14.25in

REGULATORY

• Supported Standards
  • DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020

Additional Features

• Multi-format video connections include USB-C, HDMI, HDBaseT and NetworkHD (500 Series) NetworkHD input and output supports spill-over applications
• Fast up to 1 second switching across all video outputs
• 480p to 2160p built-in scaling video outputs
• USB-C input supports 4K60 video, USB3.0/USB2.0, 1G network, and PD3.0 USB host charging up to 60watts
• All HDBaseT outputs support HDBaseT 3.0 specification, which includes uncompressed A/V, RS-232, USB2.0 up to 300Mbps and PoE+ PSE transmission
• NetworkHD input and output supports a 4K60 scaler, and seamless switching of A/V, USB2.0 and RS-232 control signals up to 330ft/100m over a single CAT6a cable, or longer via 1G network switch
• Supports USB host switching and device extension
• Switching USB hosts include 1x USB-C port, 2x local USB3.0 USB-B ports, 1x NHD input, 1x HDBT input related USB connection
• USB devices include 4x local USB3.0 USB-A ports, 1x NHD output, 2x HDBT outputs related USB connections
• Supports 2x MIC inputs, 1x LINE input, Dante 4×4 optional and 2x 5-pin balanced audio outputs
• 4-channel 4/8ohm amplified speaker outputs
• GPIO and Relay support for automation of screens, occupancy sensors etc
• Three separate audio mixers for analog, digital, and video de-embed
• HDCP 2.3 compliant and backward compatible for secure content transmission
• Supports HDR formats including HDR10, HDR10+, HLG, and Dolby Vision Low Latency
• EDID management for efficient control and customization of connected displays

In the Box

• 1x MX-1007-HYB Matrix
• 1x AC Power Cord (US/UK/EU/AU)
• 1x 2m USB-C Cable
• 2x 1-Pin Terminal Block
• 1x MX-1007-HYB Matrix
• 1x AC Power Cord (US/UK/EU/AU)
• 1x 2m USB-C Cable
• 2x 1-Pin Terminal Block
• 3x 3-Pin Terminal Block
• 4x 5-Pin Terminal Block
• 1x 6-Pin Terminal Block
• 2x Mounting Brackets with screws
• 1x Quickstart Guide
