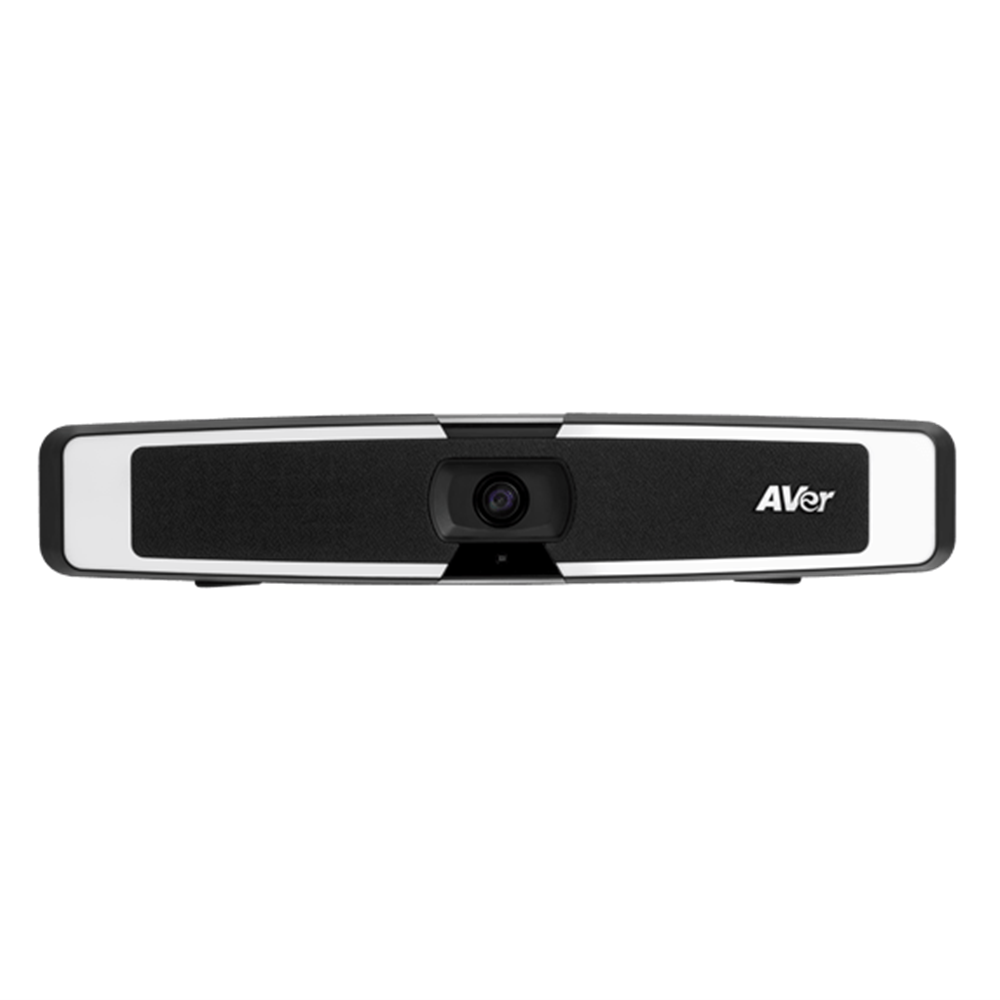

VB130

4K Video Bar

Simply Brighter and Better

4K Video Bar with Intelligent Lighting for Huddle Rooms
The All-in-One VB130 is equipped with the latest Intelligent Lighting so you can appear energetic and professional in any environment. Also, AVer’s audio fence, beamforming technology, and audio tracking precisely pick up voices. There’s even auto framing to fit every participant onscreen in seconds. Activate a brighter and better video conferencing experience with the VB130.

• Intelligent Lighting
• AVer Audio Fence
• Beamforming technology
• Auto framing
• Audio Tracking

Specifications

• 4K optics lens, 120° FOV, up to 4X zoom
• Sony 4K sensor: ultra-crystal-clear image in any lighting
• Frame rates: (16:9) 4K, 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• Adjustable audio fence: freedom to define your meeting area

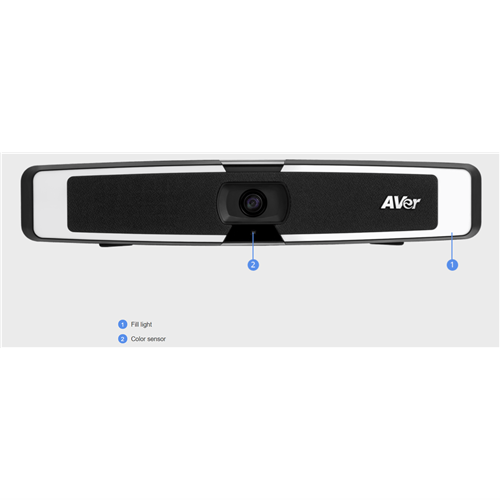

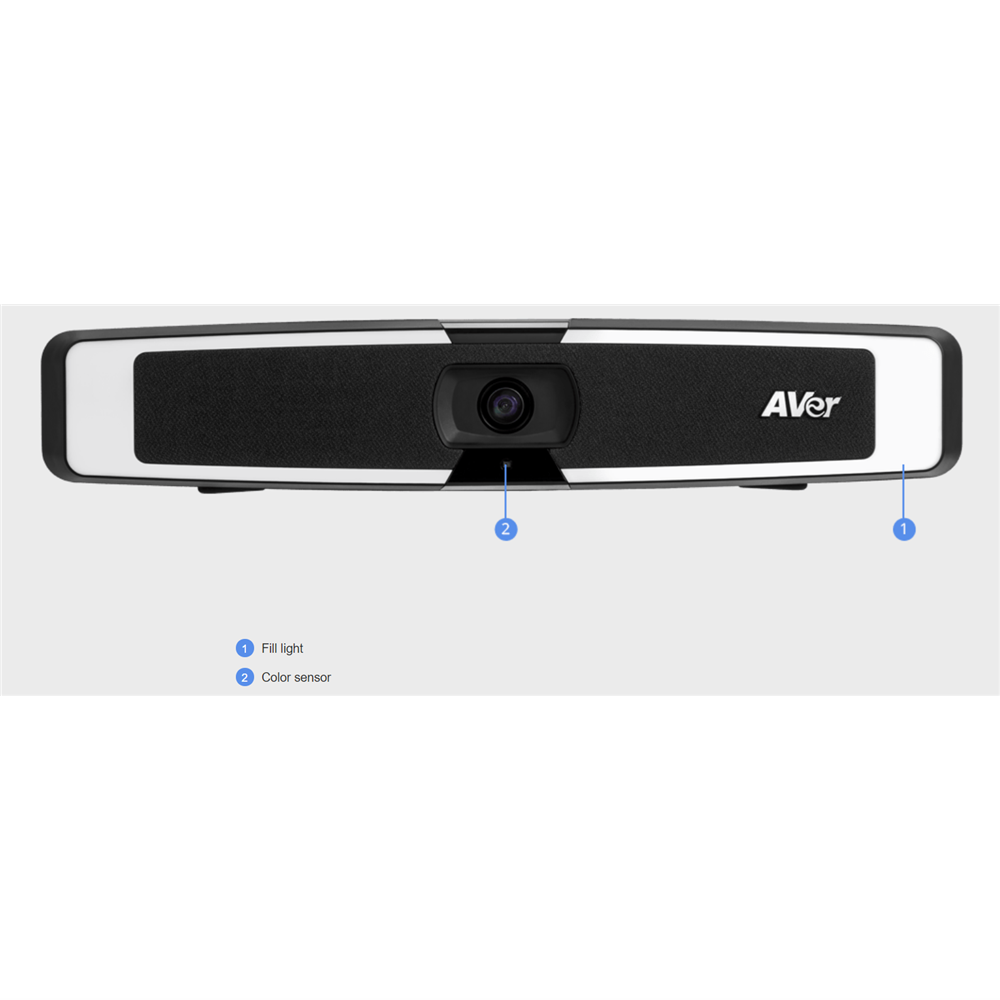

• Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment*
• SmartFrame: automatic FOV adjustment to fit all participants
• SmartSpeaker: Voice triggered tracking people or specific preset areas.
• Mirror, flip, AE, white balance: auto/manual override via PTZApp2
• Minimum focus distance: 60 cm
• People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
• 10 camera presets (through remote control and IP web page)
• *The best lighting distance is for people sitting within 1meter far from the camera

• Beamforming microphone array: 5 microphones, 4 m pickup range
• Echo cancellation
• Noise suppression
• Supports expansion microphone

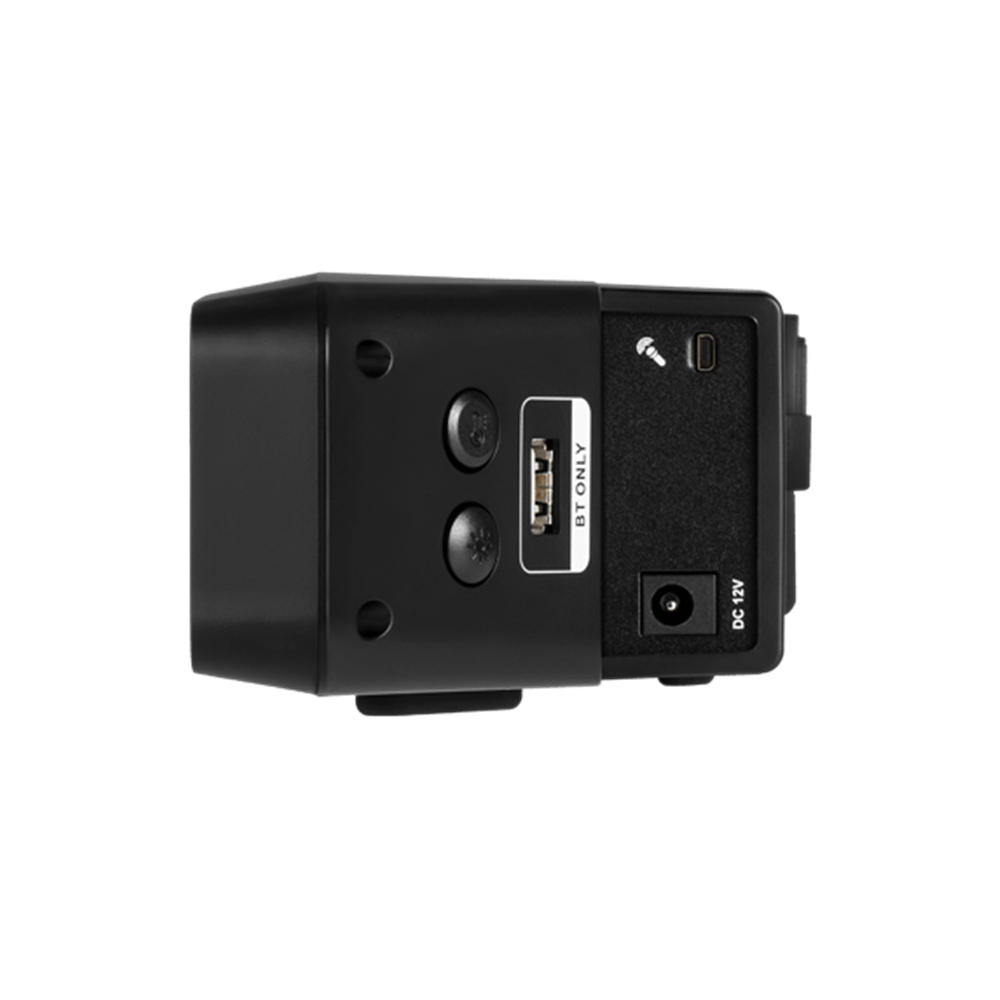

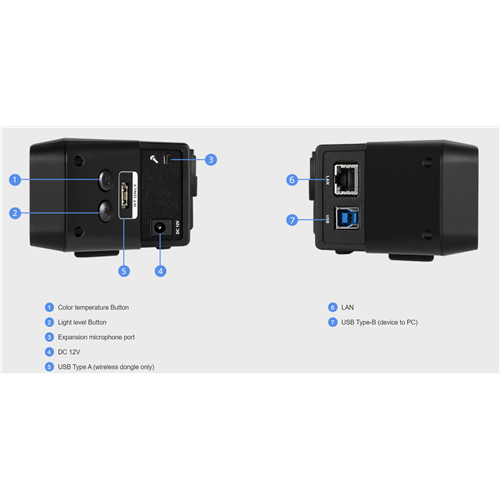

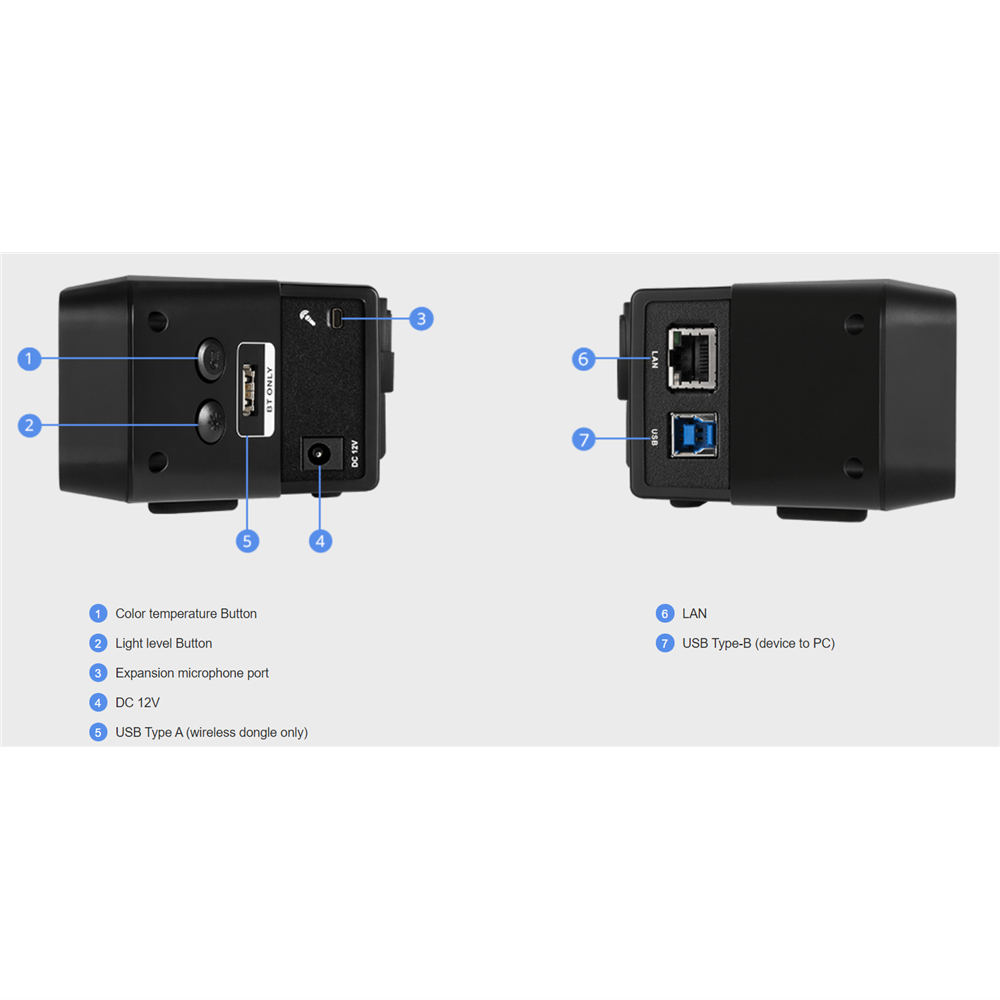

• 12V/2A power adapter
• Mini-B for expansion microphone connection

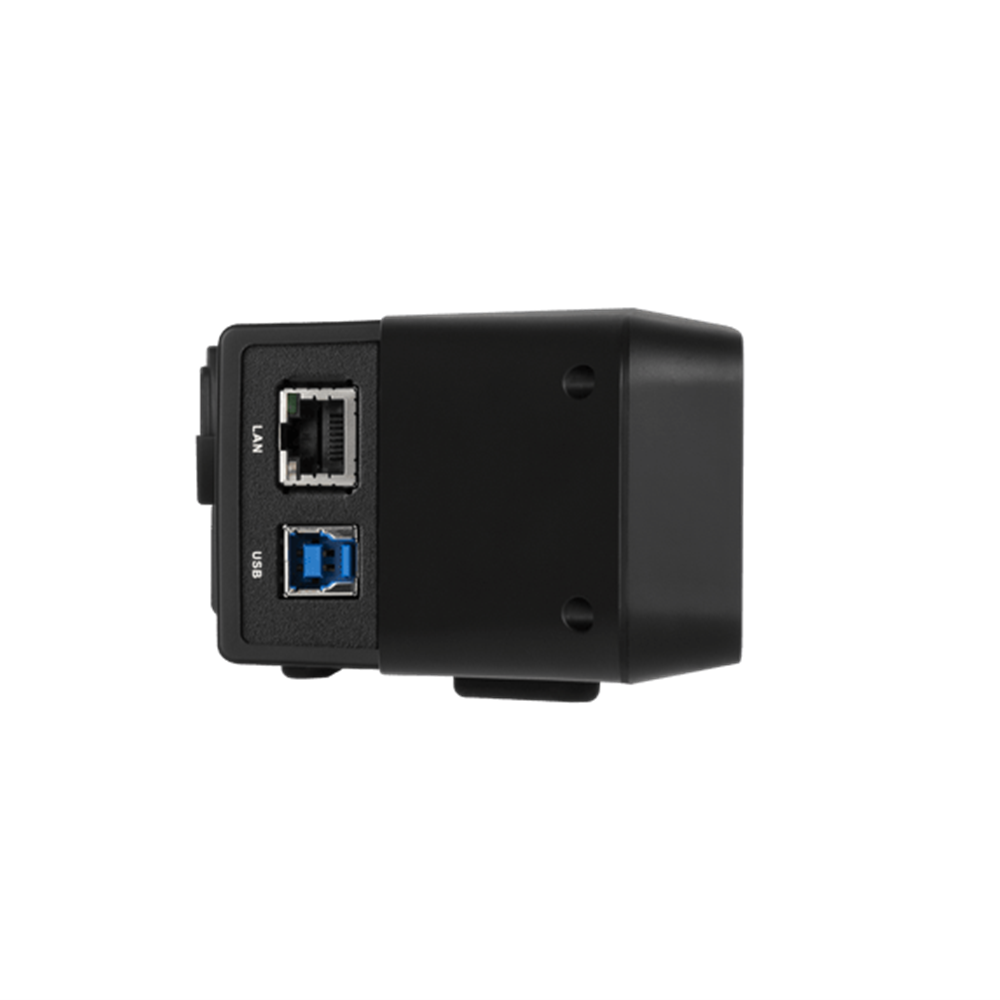

• USB Type-B 3.1 connector, backward compatible with USB 2.0
• RJ45 port for Ethernet
• USB 2.0 Type-A for wireless connection*
• *Optional wireless dongle is required to connect with mobile phone

• YUV, YUY2, MJPEG
• Network video compression format: H.264
• Network protocols: RTSP, RTMP*
• *When USB streaming is in use, RTSP and RTMP are not available.

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UAC 1.0 (USB audio)

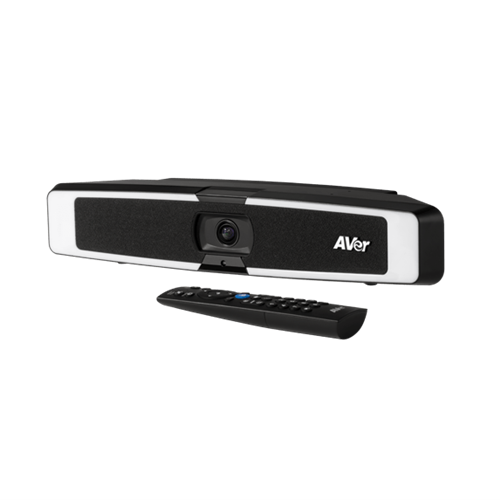

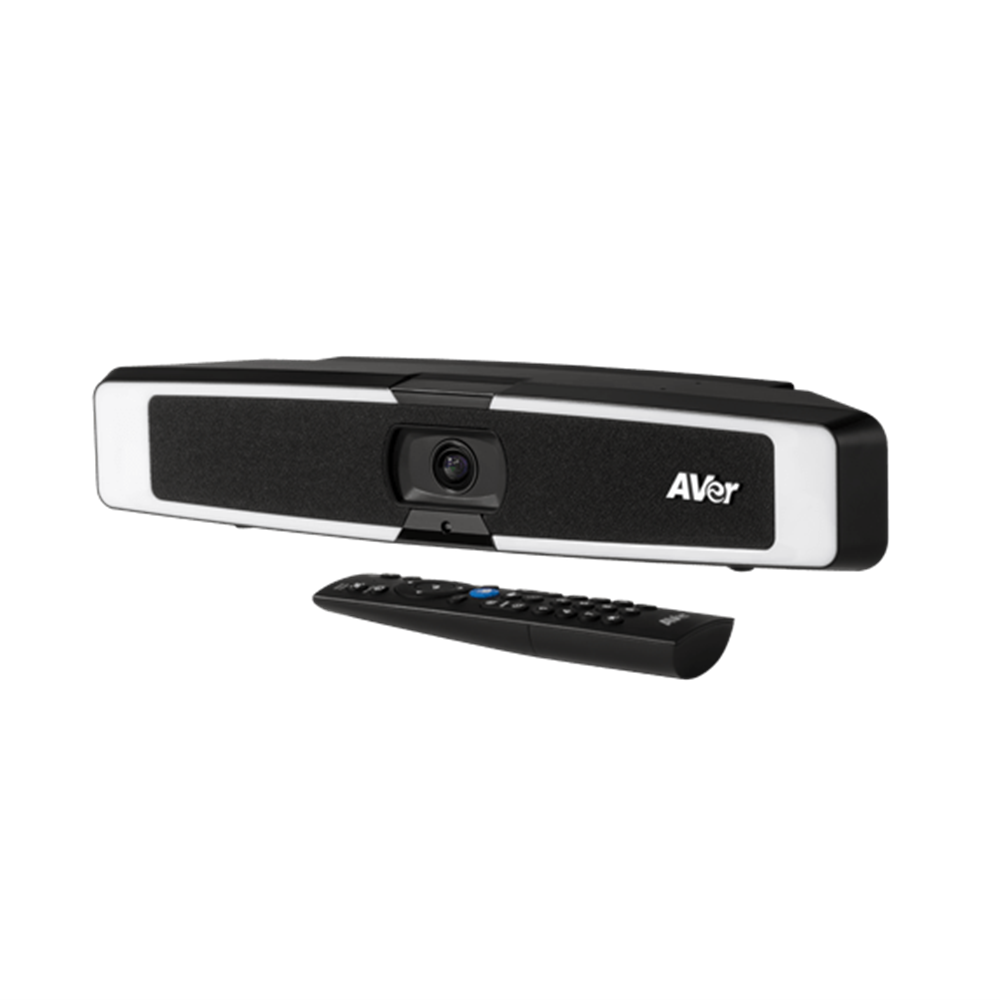

• IR remote control
• WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
• UVC/UVA plug-and-play
• PTZApp 2

• Screen mount kit (included)
• Camera wall-mount bracket (optional)

• Wall mount and mounting screws
• 10m/20m expansion microphone
• 10m/20m/30m USB 3.1 extension cable
• USB 3.1 GEN1 Type-B to Type-A cable, 3 m

• Camera: 3 years
• Accessories: 1 year

• Windows® 7/10
• MacOS X 10.7 or later
• Google Chromebook™ version 29.0.1547.70

• 3.2 GHz Intel® Core™ i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

• AC 100V–240V, 50/60 Hz
• Consumption: 12V/2A

Free Applications for Meeting Collaboration

(Free Apps support on Windows® and Mac® computers)

• EZManager 2: Camera Central Management Software
  • Remotely group FW/SW upgrades, control the camera, and manage settings
• PTZApp 2: Camera Setting Software
  • View live video, people counting number, meeting interval information
  • Enable Skype for Business far-end control
  • Upgrade firmware automatically or manually
  • Control the camera
  • Set parameters and adjust the camera image
  • Diagnose operating status
• EZLive: Broadcasting Software
  • Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

• Operation temperature: 0 ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20 ~ 60°C
• Storage humidity: 20% ~ 80%

• Package dimensions: 406(L)x146(W)x189(H) mm
• Package weight: 2.358 kg
• Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg
• Remote control: 149.72 x 42.3 x 19.29 mm/50g

• VB130 unit
• Power cable 10 ft (3 m)
• USB 2.0 Type-B to Type-A Cable 15 ft (5 m)
• QR code card
• Screen mount and screws
• Remote control
• Tripod screw

• Microsoft® Teams, Skype for Business, Skype, Zoom, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
• *For 4K UHD support, please check system/hardware requirements with your software application provider.
