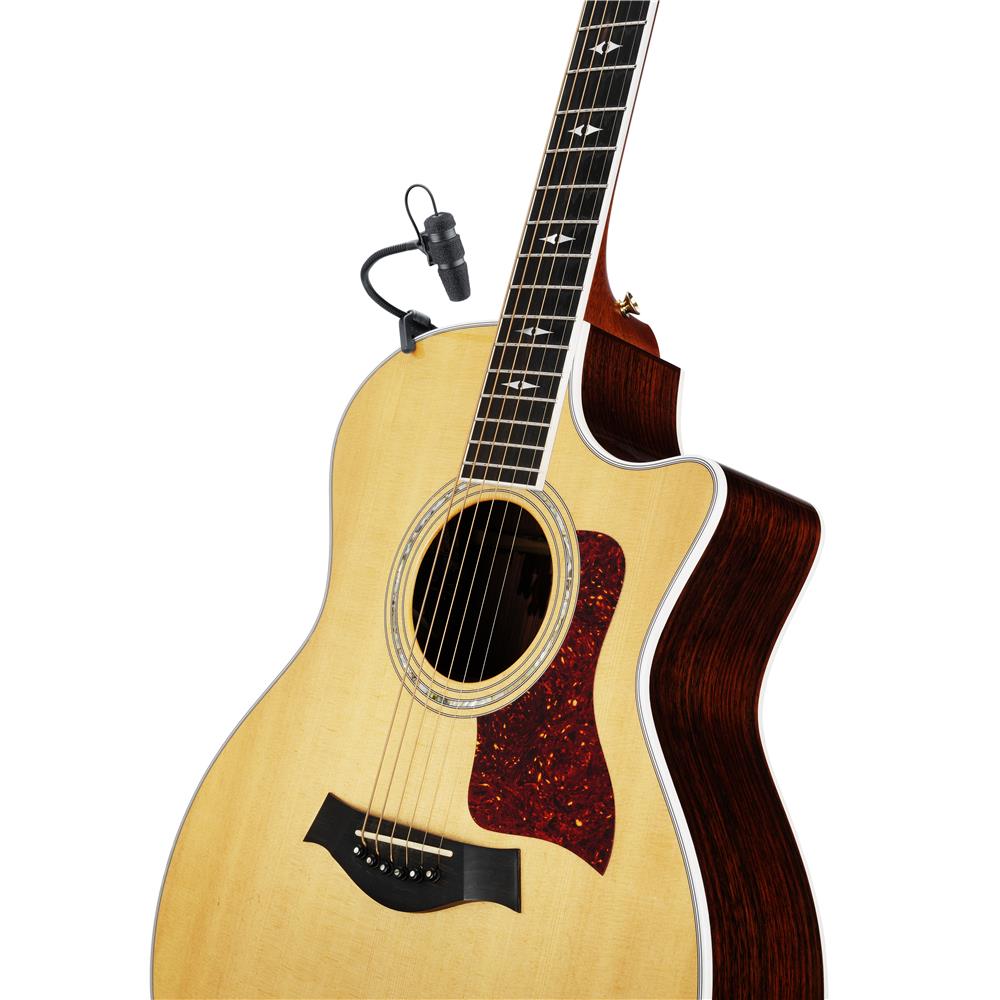

The mic fits instruments with a body depth between 35 mm (1.4 in) and 122 mm (4.8 in). Users will appreciate how gently this condenser mic adheres to their prized instrument. It is elegant, lightweight, unobtrusive and designed to stay out of the way during a performance. The mounting mechanism makes it easy to move the mic between instruments with just one hand.

Specifications Directional pattern Supercardioid
Principle of operation Pressure gradient
Cartridge type Pre-polarized condenser
Frequency range 20 Hz - 20 kHz
Frequency range, ± 2 dB, at 20 cm (7.9 in) 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A)) S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 71 dB(A)
Total harmonic distortion (THD) < 1% up to 131 dB SPL peak Dynamic range Typ. 108 dB Max. SPL, peak before clipping 142 dB
Output impedance From MicroDot: 30 - 40 Ω. From DAD4099/DAD6001-BC: 100 Ω
Cable drive capability Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter Output balance principle
Signal balanced with DAD4099 or DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC
XLR Adapter Power supply (for full performance) Min. 5 V to max. 50 V through DPA adapter for wireless systems

Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter
Connector MicroDot
Colour Black
Weight 27 g (0.95 oz)
Microphone diameter 5.4 mm (0.21 in)

Microphone length 45 mm (1.8 in)
Cable length 1.8 m (5.9 ft)
Cable diameter 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
Polarity +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter)

Temperature range -40°C to 45°C (-40°F to 113°F) Relative humidity (RH) Up to 90% Gooseneck length 140 mm (5.5 in) Typical on & off-axis response of a d:vote 4099Typical directional characteristics of a d:vote 4099
