4099 CORE Mic, Extreme SPL with Clip for Drum

• CORE by DPA technology inside
• Supercardioid condenser microphone
• Handles high SPLs
• Superior gain-before-feedback
• Flexible and easy mounting
• Gentle and easy to mount on the instrument
• Detachable cable and a versatile gooseneck extender

The 4099 is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors. 4099 CORE brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the very highest sound quality should choose CORE – every musician, live sound engineer and anyone else who takes pride in quality audio.

CORE by DPA is a powerful new technology at the heart of DPA miniature microphones. We’ve minimized distortion. From pianissimo to forte, you will experience increased clarity and openness. Learn more about CORE by DPA.

From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly. The award-winning 4099 Series gives you a much more natural sound than any clip-on microphone or pickup. This instrument condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.

The 4099 CORE also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble. Detachable cables are available in heavy duty or lightweight versions, depending on the application – both are designed to withstand the rigors of daily use. A versatile, integrated gooseneck extender provides easy and repeatable mounting.

IP58 certified
All CORE by DPA technology microphones, including the 4099 CORE, are IP58 certified. This durability is achieved through a number of defense mechanisms:

• Water-repellant nano-coating of the cover and housing
• Hermetic sealing of the sensitive amplifier at the core of the mic
• Dual gold plating of the diaphragm

The microphone can easily be connected to a wireless system via an adapter from our extensive range of wireless adapters.

The mics can be easily unclipped and repositioned or moved to another instrument. The mounting system is designed to never blemish or scratch the finish of your instrument. The flexible design supports a wide variety of mounting and positioning possibilities.

Let your instrument choose the mic
The 4099 CORE was designed to get the best performance out of your instrument, so make sure you choose the correct version. We have created clips and mounts to fit a wide range of popular instruments. Even if your instrument is not listed below, there is probably a solution that will meet your needs.

Please note that for each type of instrument we have pre-selected the following parts for you:
Type of mount
Type of microphone, i.e. Loud or Extreme SPL
Type of microphone cable; Ø1.6 mm (0.06 in) or Ø2.2 mm (0.09 in)
Type of XLR adapter, i.e. either DAD4099 (with build in low cut) or DAD6001 (without low cut)

With each package, you are instantly ready to play your instrument with the microphone attached.

Optional gooseneck extension
The standard gooseneck length is 140 mm (5.5 in). The optional gooseneck extension unit is also available. This adds approx. 50% extra length, which helps reach the sweet spot for some instruments.

Detachable cables
The 4099 CORE Instrument Microphone series features cables that are detachable from the gooseneck. This makes it more convenient to mount the mic on an instrument before connecting it. You can also choose between different cable qualities, making it possible to tailor your mic to a specific task. The heavy duty 2.2 mm (0.09 in) cable is ideal for PA and live gigs. The thinner 1.6 mm (0.06 in) miniature cable is more appropriate for personal mounting on instruments. Both types of cables are strong and durable with an inner core of Kevlar.

Change the mount, not the mic

The 4099 Instrument Microphone is very adaptable, due to the wide selection of ingenious mounting options offered. Guitar, brass, flute, piano; it is no problem to mount the mic on any instrument. So finding a consistent sound for your mix has never been easier. The d:vote™ CORE 4099 Instrument Microphone comes with a wide variety of clips for use with specific instruments. Bass, brass, drum, violin and more!

A bit about supercardioids
A supercardioid microphone is similar to a cardioid – it is most sensitive to sound coming in at the front and is least sensitive at the back. Supercardioid mics tend to have a much narrower angle of sensitivity – making them even more focused than a “normal” cardioid mic. This off-axis sound will be more or less colored and damped – and, due to the narrow angle of focus, the area of damped sound is increased significantly. The unique DPA capsule technique however skips the colorization of the sound coming from the sides or the rear of the mic and just reduces the sensitivity to these angles and thereby offers perfect sound stages. The amount of damping depends on the exact specifications of the mic.

Due to their nature, supercardioid mics are often used on the live stage – both during concerts as well as spoken-word events, to capture the focused sound of an instrument or voice. The narrow angle of sensitivity helps to minimize the bleed from other sounds on a busy stage. One thing to note with supercardioid mics is the proximity effect, which causes an increase in bass response the closer the microphone is moved to the sound source. In addition, supercardioid mics are far more sensitive to wind, pop and handling noises than omni mics, so be sure to take precautions to guard against this.

Adapter system gives you flexibility
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.

DPA miniature microphones work with all leading wireless mic solutions, such as, Sennheiser, Shure, Sony, Wisycom, Lectrosonics , Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

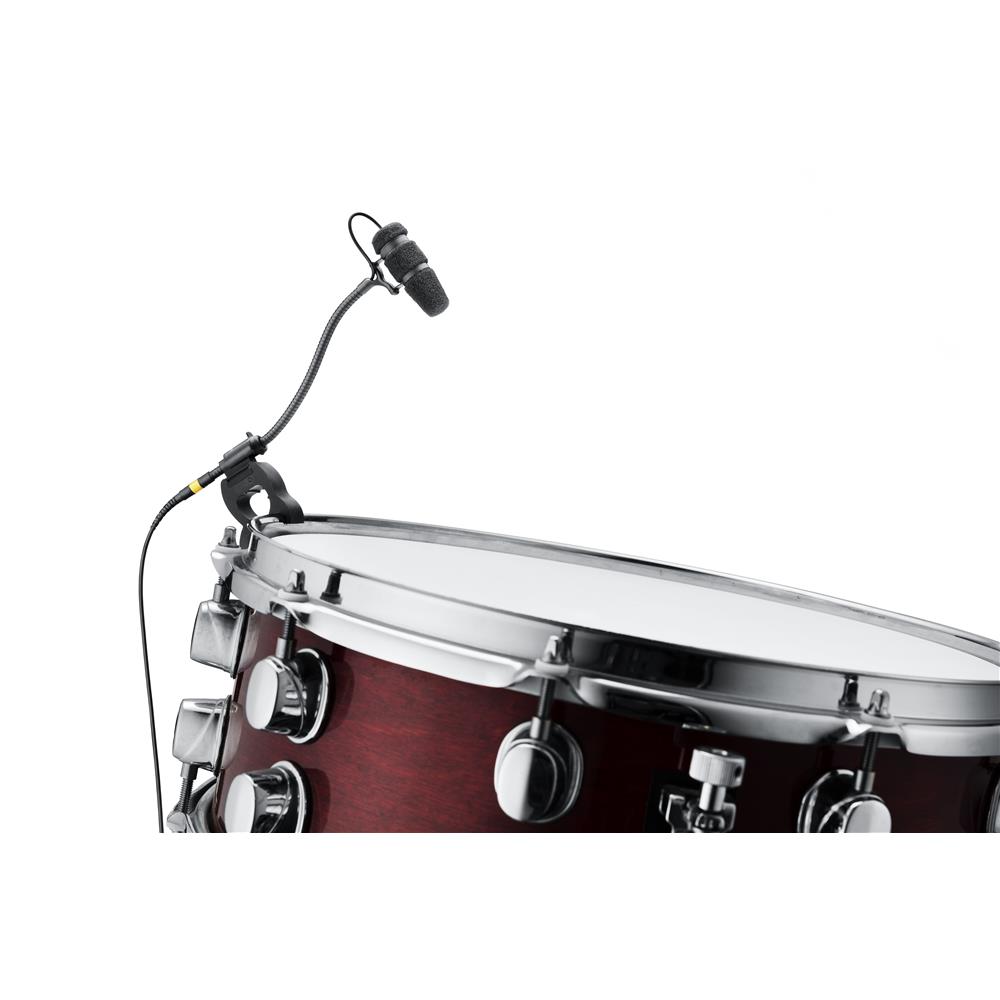

Drum
The 4099 CORE for Extreme SPL perfectly captures the booming sounds of drums and percussion instruments. Users will appreciate how gently this instrument condenser microphone adheres to their prized instrument. The mic can be easily positioned to fit different types of drums. The flexible gooseneck can be positioned at different angles to allow a variety of sound nuances. The mic is elegant, lightweight, unobtrusive and designed to stay out of the way during performances.

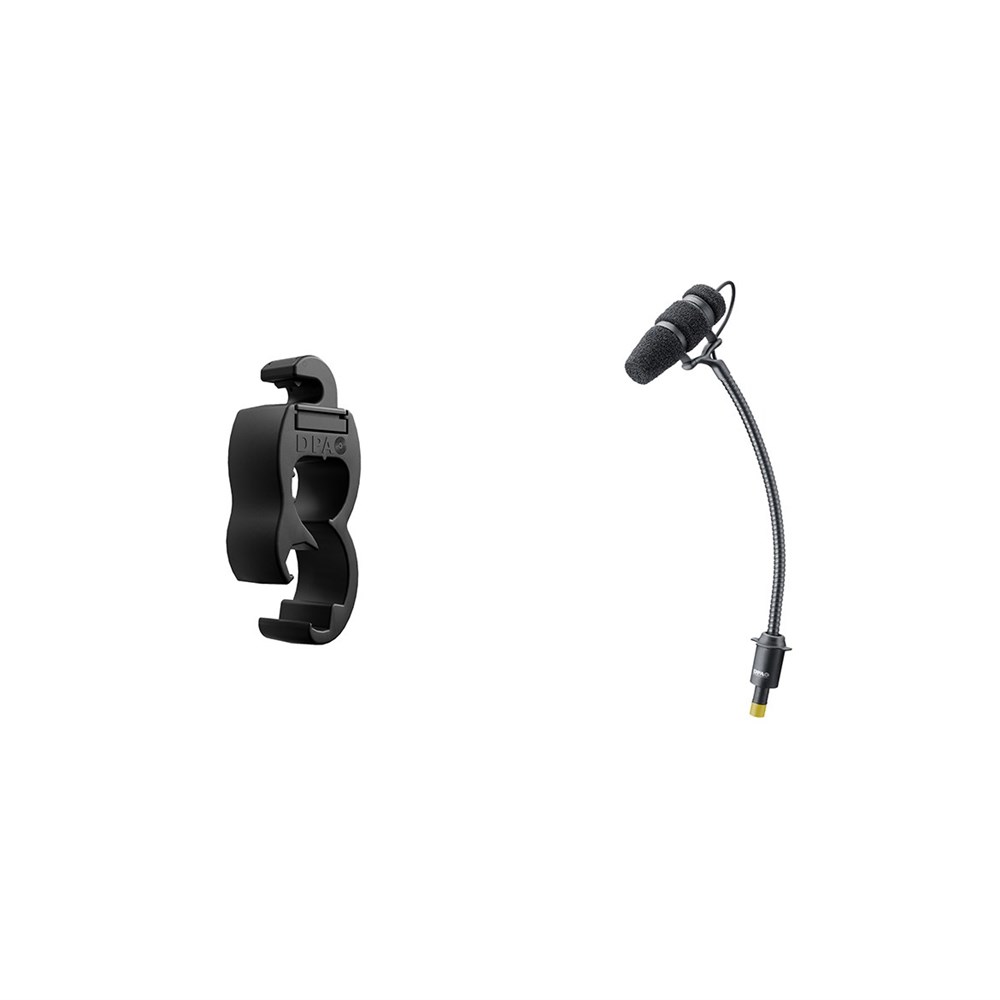

The mounting mechanism makes it easy to move the mic between instruments. The 4099 CORE Instrument Microphone for Drum includes a revolutionary ‘90° system which provides a wide range of mounting options.

By detaching the clip from the gooseneck and re-mounting it turned 90°, the number of mic positions is doubled. This mic can easily be combined with a wide variety of accessories. For the bass drum, the d:vote™ VC4099 Clip fits perfect on the rim.

Choose a 4099 CORE Instrument Microphone for Drums (4099-DC-2-201-D) for your drum kit and add a VC4099 clip for your bass drum.
