DPA Microphones

This is a Special Order Item

4099 CORE+ Classic Touring Kit, 10 Mics and accessories, Loud SPL

Product Code: DP-KIT-4099-DP-10C

Brand
DPA Microphones
RRP $13,439.00


Unit of Measure
EACH


Unspecified
Technical Specifications
Brands DPA Microphones
  • Details
  • Downloads
  • Ordering


KIT-4099-DP-10C - 4099 CORE+ Classic Touring Kit, 10 Mics and accessories, Loud SPL

These kits, featuring 4099 CORE+ versions ensure the highest sound quality and bring more clarity and details to your music.


  • CORE+ technology
  • High SPL handling
  • Wide dynamic range
  • Supercardioid pick up pattern
  • Superior gain before feedback
  • MicroLock® connector
  • IP58 certified
  • Advanced, flexible clip program

The 4099 CORE+ is the next-generation, high-performance instrument microphone. It delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock® and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument.

Directional pattern Supercardioid
Principle of operation Pressure gradient
Cartridge type Pre-polarized condenser
Frequency response 20 Hz - 20 kHz
Effective frequency range ±2 dB, at 20 cm (7.9 in)  80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
Distortion, THD < 0.5% 135 dB SPL RMS, 138 dB SPL peak
Distortion, THD < 1% 138 dB SPL RMS, 141 dB SPL peak
Dynamic range Typ. 118 dB
Max. SPL, THD 10%  145 dB SPL peak
Rated output impedance From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
Cable drive capability Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
Output balance principle Signal balanced with DAD9099 or DAD9001 XLR Adapter
Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
Power supply (for full performance)

For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
Connector MicroLock
Weight Microphone: 18 g (0.63 oz)

Microphone diameter

5.7 mm (0.22 in)

Microphone length

50 mm (1.97 in)

Cable length

1.8 m (5.9 ft)

Cable diameter

1.6 mm (0.06 in) / 2.2 mm (0.09 in)

Polarity

+V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)

Temperature range

-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)

Up to 90%

Gooseneck length

140 mm (5.5 in)

Sensitivity selection tolerance (at 1 kHz)

±1 dB

Colors

Black

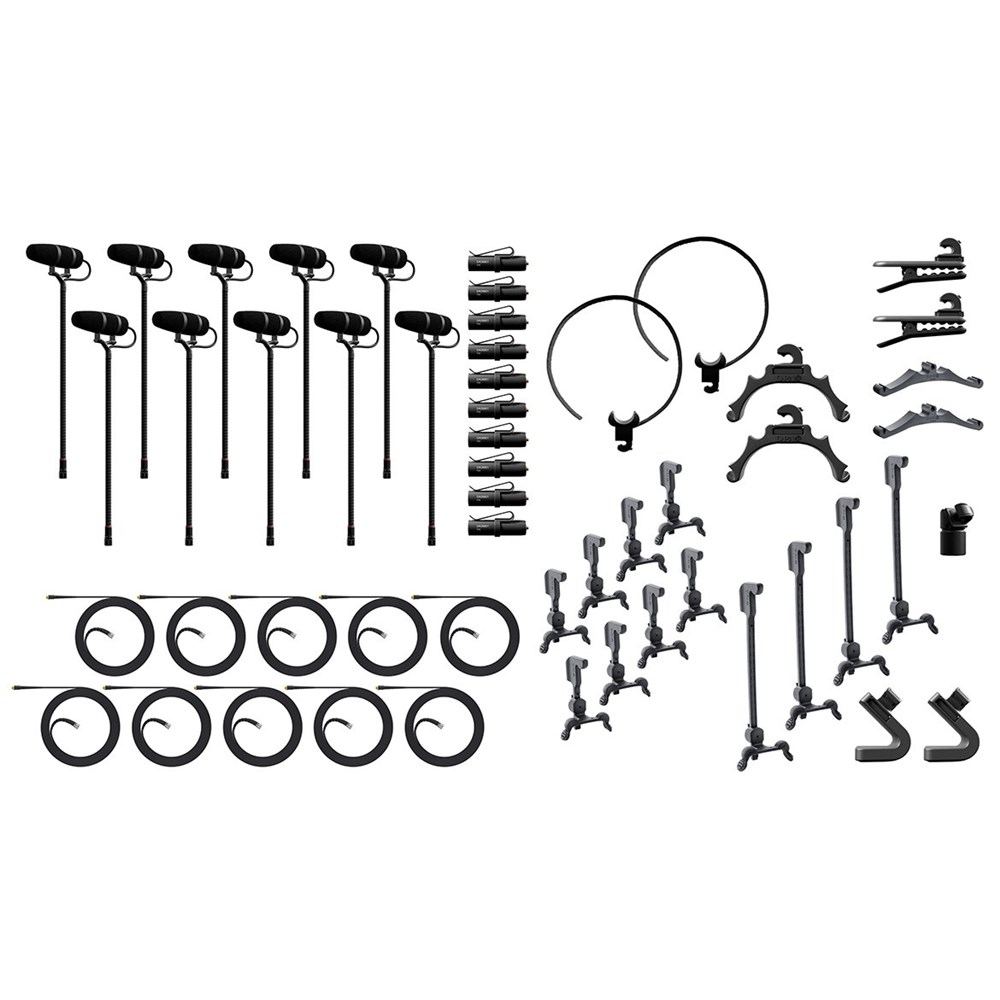

KIT inclusions:

Microphone Clip for Accordion (A-CLIP): 5 g (0.18 oz)
Clamp Mount Microphone Clip (CM-CLIP): 16 g (0.56 oz)
Microphone Stand Clip (MS-CLIP): 24 g (0.85 oz)
Microphone Clip for Piano (P-CLIP): 20 g (0.71 oz)
Universal Microphone Clip (U-CLIP): 15 g (0.53 oz)
Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz)
Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz)
Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz)
Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz)
Microphone Clip for Cello (C-CLIP): 18 g (0.63 oz)


4099 Frequency Curb 20Cm Distance White Web
