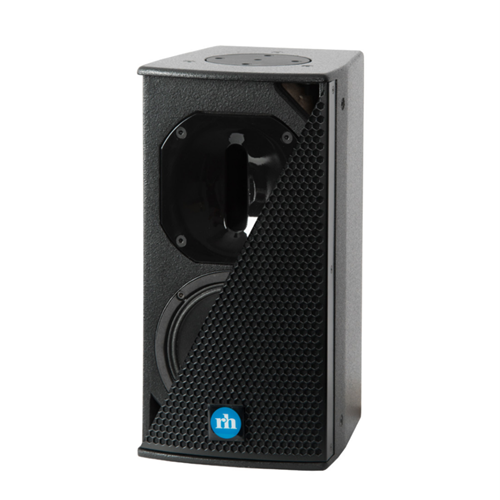

TX61

2-Way, Full Range Loudspeaker 6.5" LF, 1" HF Non-Powered, 200W Pgm @ 16 Ohms; Sensitivity 94dB 1W/1m, whole space

Compact 6.5-inch woofer + 1-inch titanium HF driver
Sound that makes performances and audiences truly come alive doesn't come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

The T61 features a 6.5-inch heavy-duty woofer and a 1-inch Extended Range Titanium HF Driver.

TX61 Non-Powered Loudspeakers
For use with external amplification

Key Features

• High Volume Output, Small Enclosures
  100 Hz to 18 kHz ±3 dB: Outstanding, full-range performance in an extremely compact, space-saving design.
• Exclusive 150° by 60° Complex Conic Design
  Provides constant beamwidth/directivity without the problems of conventional rectangular horns.
• 1-inch Extended Range Titanium HF Driver
  Provides smooth, low distortion high frequency performance to 18 kHz and beyond.
• Heavy-Duty 6.5-inch Woofer
  Easily handles 120 Watts of program power.

Applications

Virtually any application where size is a critical issue and outstanding sonic performance is required.

Permanent Installations

• Ideal for fills, delays, distributed and playback systems
• Churches, schools, sports venues, board rooms, malls, transportation venues, retail environments

Portable Applications

• Ideal solution for portable, compact, full-range sound reinforcement requirements.
• Performing artists, rental A/V, schools, churches, etc.

Technical Information

• Sensitivity: All Models 94 dB (1W/1m)
• Max SPL: 120 dB peak
• Dispersion: 150° H x 60° V Rotatable Horn
• Freq. Response: ± 3 dB, 100 Hz to 18 kHz
• HF Driver: 1" Titanium driver, model SSD1445-16; 20 W AES
• LF Driver: 6.5" woofer, model SSL6.5-18; 1" VC; 100 W AES @ 16 Ohms
• Power Handling:
  • 100 W AES @ 16 Ohms
  • 200 W Pgm @ 16 Ohms
• Connectors: Screw terminals & looping 4-pin Neutrik Speakon style connectors
• Enclosure: 15mm Lite Ply, perforated metal grille
• Hardware:
  • 12-point Universal Mounting Hardware (Metric M6 threads)
  • M10 U-bracket attachment points
• Finish: Black or White Paint, standard. Custom Color, Weather Resistant optional.
• Dimensions: 200 mm H X 406 mm W X 238 mm D
• Weight: 20 lbs / 9 kg, Net
