Dynaudio BM15A 2-Way Active Nearfield Monitor - LEFT (SINGLE)

Product Code: DY-BM15A-L

Brand
Dynaudio
RRP $2,959.50


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Dynaudio Professional
Size 10"
Speaker Type Studio Monitor
  • Details
  • Downloads

BM15A

The Dynaudio nearfield experience.

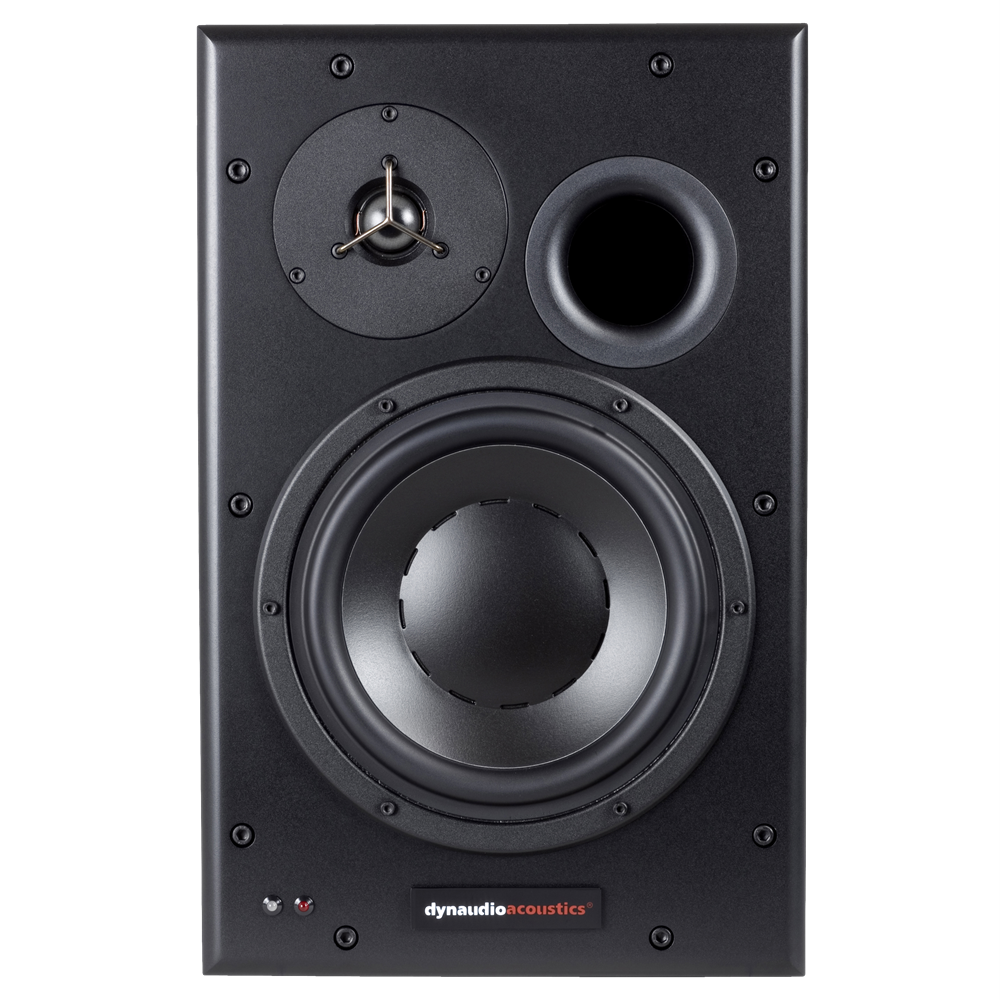

The BM15A is a relatively large 2-way active system comprising of a large 240mm (10") woofer, a special version of the Dynaudio ESOTEC soft dome tweeter and an electronic phase-aligned crossover, which feeds the build-in dual, high performance discrete MOSFET amplifiers.

The ESOTEC HF has a dynamic headroom of 1000W, and the 240mm (10") bass driver is world-renowned for its 100mm (4") aluminium alloy voice coil.

The BM15A monitor is front ported for powerful and extended low frequency response, and the elegant matte cabinet has radius edges on the front baffle to reduce boundary effects and improve the overall sound quality.


Technical specifications

Specification sheet forClassic BM15A part 2
System: 2-way Active Nearfield Monitor
Frequency Response (±3dB): 40Hz - 21kHz
Max SPL 1m, pair (IEC Long Term): 124dB RMS
Max SPL 2m, 5.1 (IEC Long Term): 125,5dB RMS
Input level for 85 dB SPL @ 1m (+4/-10): -18dBu RMS / -34dBu RMS
Input level for max peak SPL (+4/-10): +16dBu peak / -1dBu peak
Power consumption: Idle: 40W / Max: 300W
Amplifier power: Tweeter: 100W / Woofer: 200W
Resonance Frequency: 39Hz
Specification sheet for Classic BM Range part 1
Model: BM15A
Internal Cabinet Volume: 27,5 liters
Principle: Bass reflex
Crossover Frequencies: 1800Hz
Crossover Slope: 30dB/oct
Tweeter: Esotec 28mm soft dome, rear chamber, Magnetic fluid. 4 mm die-cast alu front,
Woofer: 240mm/9”, One-piece molded polyprop cone, 100 mm/4” pure alu voice coil
Weight: 18.6kg / 41lbs
Dimensions (W x H x L): 290 x 454 x 388mm / 11.4” x 17.9” x 15.2”
