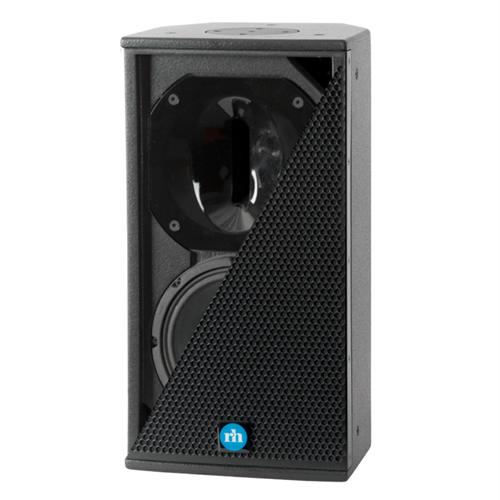

TA81-RD

8-inch Heavy Duty Woofer + 1-inch titanium HF driver
Sound that makes performances and audiences truly come alive doesn't come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

The T81 features an 8-inch heavy duty woofer and a 1-inch titanium HF driver.

TA81 Powered Loudspeakers
Equipped with SA625 Series Amplification

TX81 Non-Powered Loudspeakers
For use with external amplification

Key Features

• High Volume Output, Small Enclosures
  70 Hz to 20 kHz ±3 dB: Outstanding, full-range performance in an extremely compact, space-saving design.
• Exclusive 120° x 60° Complex Conic Design
  Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
• 1-inch Extended Range Titanium HF Driver
  Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
• Heavy-Duty 8-inch Woofer
  Easily handles 250 Watts of program power.

Applications

• Virtually any application where size is a critical issue and outstanding sonic performance is required.

Permanent Installations

• Ideal for fills, delays, distributed and playback systems Churches, schools, sports venues, board rooms, malls, transportation venues, retail environments

Portable Applications

• Ideal solution for portable, compact, full-range sound reinforcement requirements.
• Performing artists, rental A/V, schools, churches, etc.

Technical Information

• Max SPL: 123 dB peak
• Dispersion: 120° H x 60° V or 90° H x 60° V Rotatable
• Freq. Response: ± 3 dB, 90 Hz to 20 kHz
• HF Driver: 1" Titanium driver, model SSD1445-16; 20 W AES
• LF Driver: 8" woofer, model SSL8-20; 1" VC; 125 W AES @ 16 Ohms
• Power: See SA625 Amplifier
• Connectors: See SA625 Amplifier
• Enclosure: 18mm Lite Ply, perforated metal grille
• Hardware:
  • 12-point Universal Mounting Hardware (Metric M6 threads)
  • M10 U-bracket attachment points
• Finish: Black or White Paint, standard. Custom Color, Weather Resistant, optional.
• Dimensions: 262 mm H x 533 mm W x 267 mm D
• Weight: 25 Lbs / 11.3 kg, Net

SA625 Amplifier Specifications

• Audio Connections:
  • 2 x XLR-3, In & Loop-out, Analog and AES
  • 2 x RJ45 Dante Primary & Secondary Ethernet
• Network Connections: 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
• User DSP: Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
• Software: RHAON II
• Latency: 6.25 ms + Dante transport latency
• Power Output: LF= 250 watts, @ 16 ohms / HF = 125 watts @ 16 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
• Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
• Power Connector: Neutrik powerCON TRUE-1
• Temprature Limits: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
