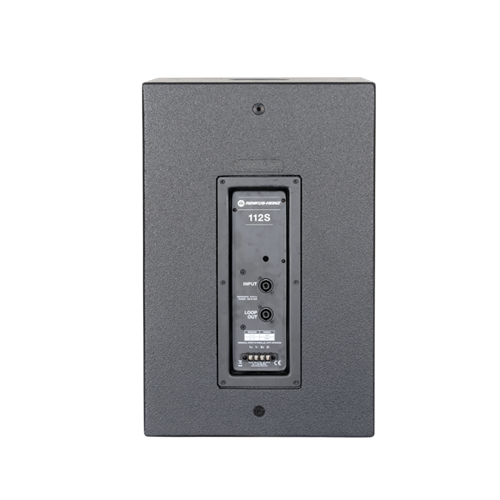

TX112S

12-Inch High Performance Subwoofer
Sound that makes performances and audiences truly come alive doesn't come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

TX112S Non-Powered Loudspeakers
For use with external amplification

Key Features

• Powerful 12-inch Subwoofers
  Outstanding 40 Hz to 120 Hz, 133 dB peak SPL sub-bass performance.
• High Performance, High Power Woofers
  With long-throw magnetic structures easily handle 500 Watts of program power.
• Built-In Lo-Pass Filter
  May be bypassed to allow use of an external electronic crossover.

Applications

• Virtually any application where high-output, low frequency content is required

Permanent Installations

• High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.

Portable Applications

• Live music reinforcement, DJ systems, houses of worship, schools, etc.

Technical Information

• Sensitivity: 97 dB (1W/1m)
• Max SPL: 127 dB, peak, half space
• Freq. Response: 40 Hz to 120 Hz
• LF Driver: SSL12-23 woofer, 250 W AES @ 8 Ohms, 500 W Pgm
• Power Handling:
  • 250 W AES @ 8 Ohms
  • 500 W Pgm @ 8 Ohms
• Connectors: Screw terminals & looping 4-pin Neutrik SpeakOn style connectors
• Enclosure: 19 mm Lite Ply, perforated metal grille
• Hardware: 12 x M10 Points, 1 x 20 mm threaded pole socket
• Finish: Black or White Paint, standard. Custom Color, Weather Resistant, optional.
• Dimensions: 445 mm w x 724 mm h x 432 mm d
• Weight: 52 lbs / 23.6 kg, net
