1080P60HZ UTP extender upto 80 M

Product Code: WY-EX80KVM

Brand
Wyrestorm
RRP $539.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type USB
Product type Extenders
  • Details
  • Downloads

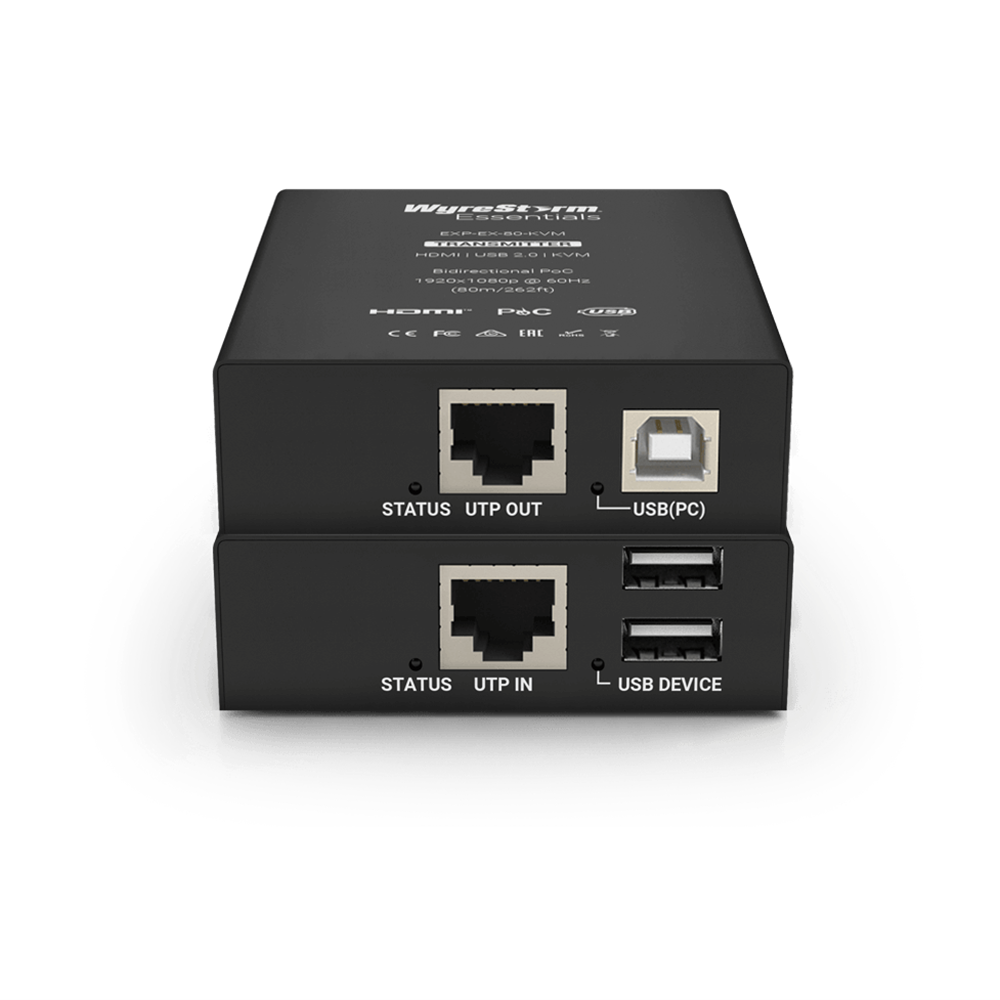

WyreStorm Essentials™ 80m KVM UTP Extender

The WyreStorm EXP-EX-80-KVM is a plug and play HDMI and KVM extender, capable of sending up to resolutions of 1080p@60Hz and HID (Human Interface Device) up to 80m (262ft) over a single CAT5e/6 cable. Additionally, it supports bidirectional POC (Power Over Cable) for powering at either the transmitter or the receiver with only one power adapter, making installations quick and effortless. Perfect use in office, home and presentation settings to extend HD video and USB keyboard and mouse from a local zone to a remote PC or laptop.

USB 2.0 PASSTHROUGH
The EXP-EX-80-KVM offers highspeed USB 2.0 pass-through, capable of not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities of 480Mbps for webcams or USB peripherals.


BI-DIRECTIONAL POC
With it’s KVM extension, EXP-EX-KVM-80 includes bi-directional Power Over Cable abilities, saving the installer time and headache from having to supply local power discreetly to both ends.


DISCREET, SMALLER FOOTPRINT
As with all of WyreStorms Essentials line of extenders, we strive to give you the most functionality, while keeping the chassis size as minimal as possible, making it easier to keep discreet.


HDCP COMPLIANT
WyreStorm extender solutions play nice with the equipment they’re connected to, ensuring that the HDCP encryption is maintained throughout the process.

Technical Specifications

AUDIO & VIDEO
  • Inputs
    • TRANSMITTER
      • 1x HDMI: 19-pin type A
      • 1x USB Type B
    • RECEIVER
      • 1x UTP: 8-pin RJ-45 Female
      • 2x USB Type A
  • Outputs
    • TRANSMITTER
      • 1x UTP: 8-pin RJ-45 Female
    • RECEIVER
      • 1x HDMI: 19-pin type A
  • Output Video Encoding: UTP
  • Encoding Data Rate: 6.75Gb/s
  • Audio Formats: 2ch PCM | Multichannel up to DTS-X and Dolby Atmos
  • Video Resolutions (max): 1920x1080p @60Hz 12bit
  • Supported Standards: DCI | RGB
  • Maximum Pixel Clock: 225MHz
COMMUNICATION & CONTROL
  • HDMI: HDMI 1.3b | HDCP 1.4 | EDID | DVI/D supported with adapter (not included)
  • UTP: HDMI 1.3b | HDCP 1.4 | EDID | 2-way PoC
  • IR:
    • 1x Type B (host)
    • 2x Type A (device) (Transmitter and Receiver)
    • Maximum uplink speed : 480Mbps | 60m/197ft Cat6/6a/7
POWER
  • Power Supply: 12V 2A
  • PoC: IEEE 802.3af 48V 15.4W Max | 2-way
  • Max Power Consumption: 3.6W (per unit)

In the Box
  • 1x EXP-EX-80-KVM Transmitter
  • 1x EXP-EX-80-KVM Receiver
  • 1x 12V DC 2A Power Supply (US/UK/EU/AU)
  • 1x USB Type B to Type A Cable
  • 4x Mounting Brackets
