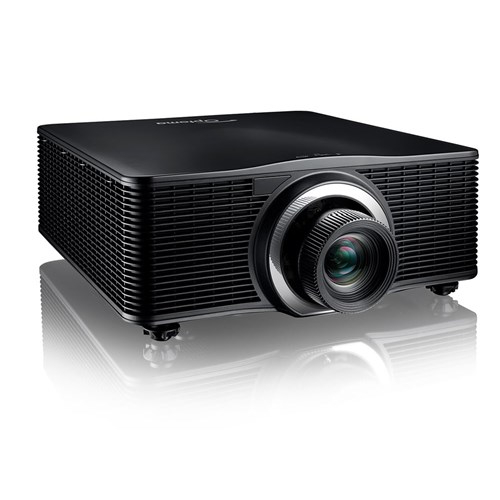

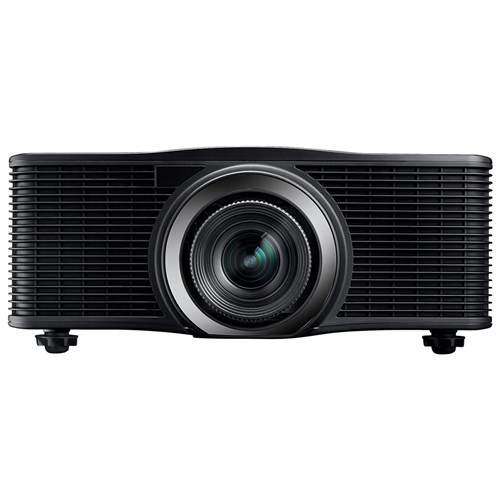

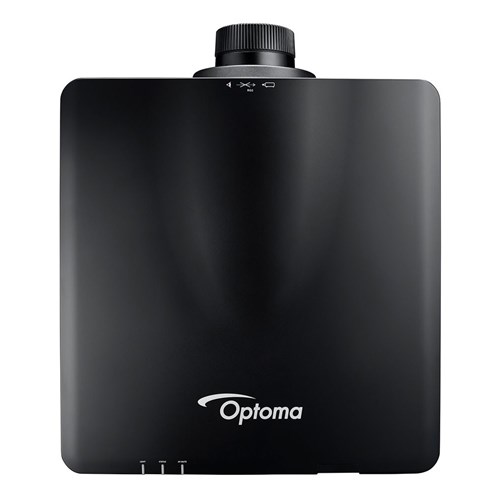

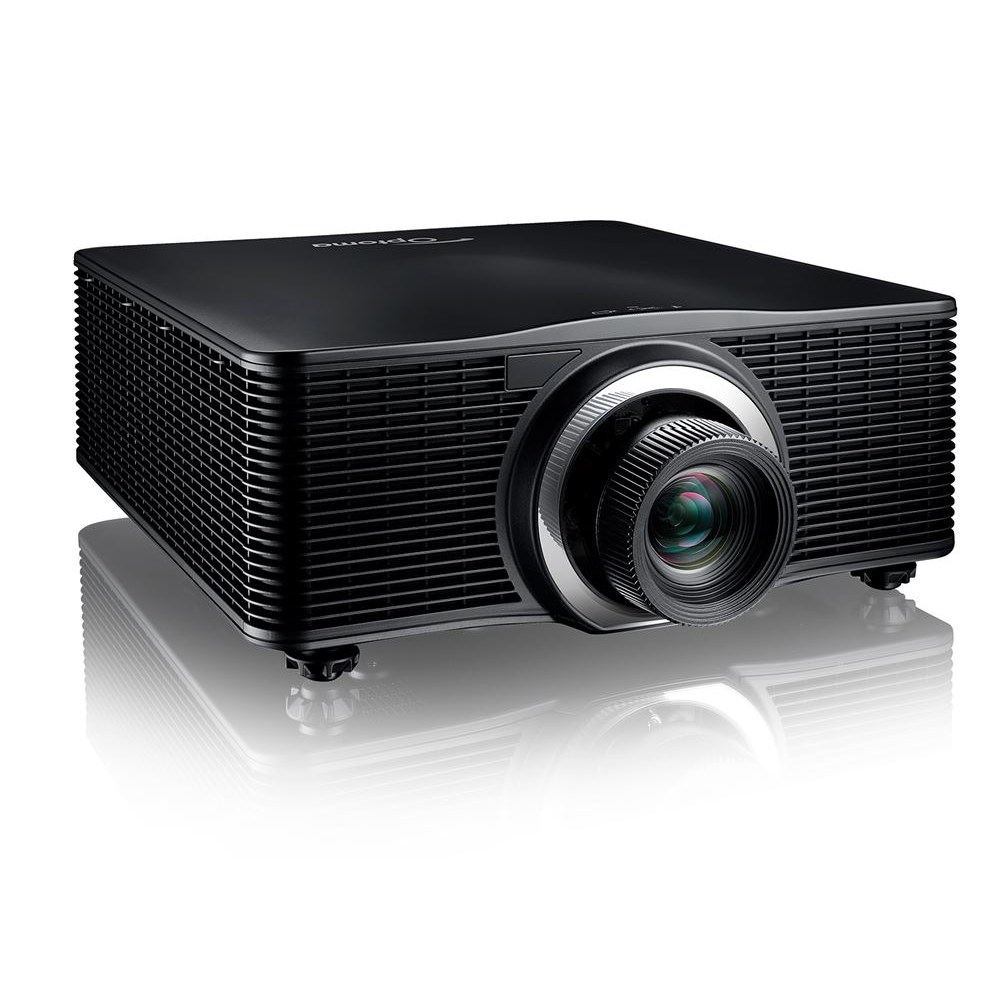

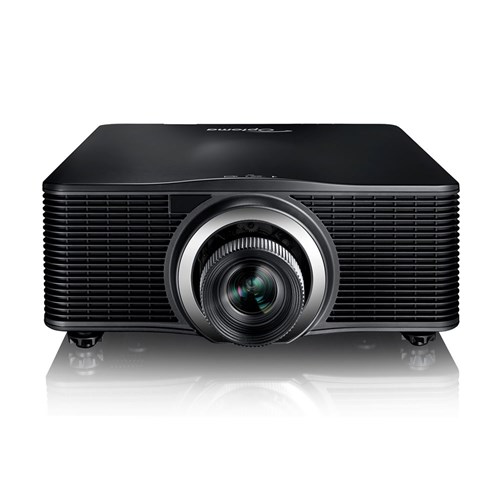

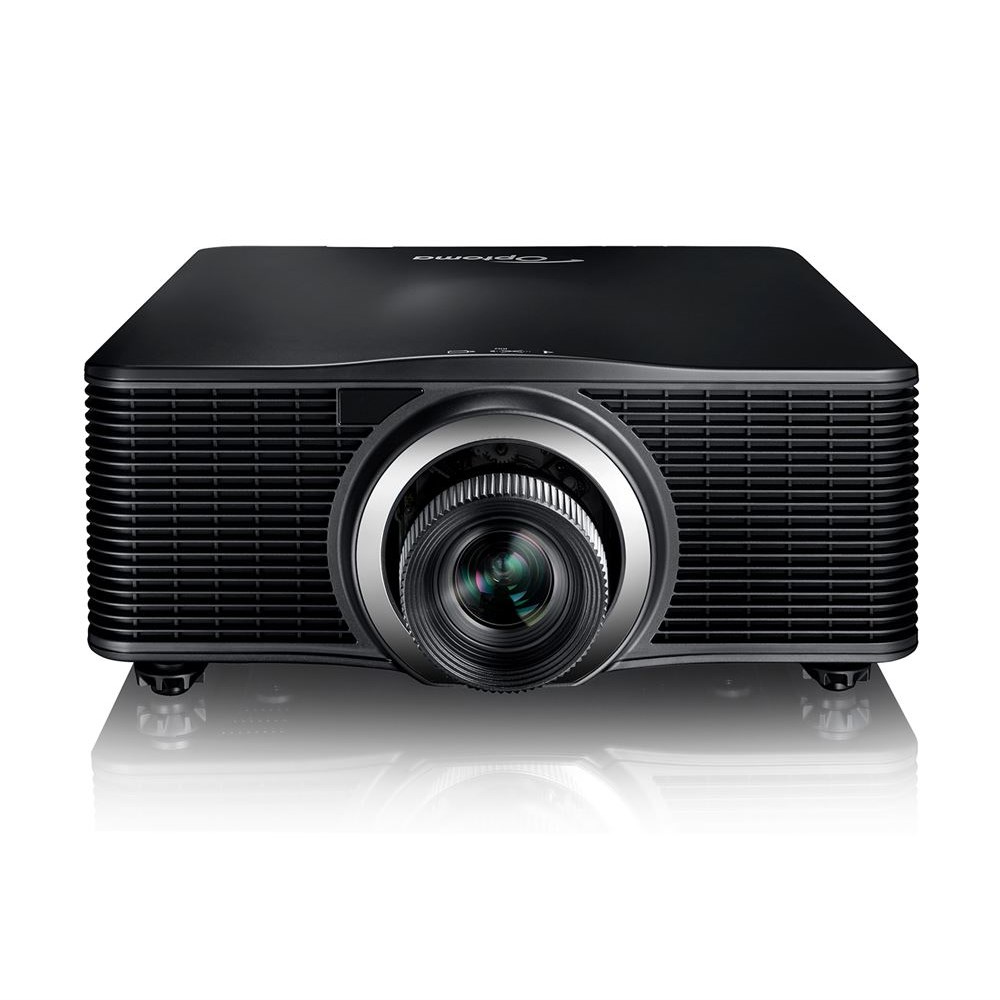

Optoma ZU1100

Spectacular image quality, low maintenance and ultimate reliability
The ZU1100 offers enhanced features such as built-in edge-blending and warping. Part of the DuraCore laser lineup, it combines a longer-lifetime light source and an independent IP-rated dust certification for ultimate peace of mind.

Delivering up to an astonishing 30,000 hours laser light source, this projector achieves superior colour rendition producing visually striking lifelike images with exceptional detail.

Designed for even the most complex professional installations, the ZU1100 offers seven interchangeable lens options including an ultra short throw lens and single-projector dome lens for ultimate flexibility.

For large-scale projection or stacking, the ZU1100 features built-in edge-blending and warping and offers portrait and 360-degree orientation support. Additionally, an HDBaseT™ input is included to simplify cabling requirements and reduce installation complexity, saving time and reducing costs.

Features

• High brightness WUXGA DLP laser projector
  11,500 lumens
• DuraCore laser technology
  Up to 30,000 hours laser light source
• Dust resistant
  Independently tested, IP6X certified for total reliability
• Installation flexibility
  7 interchangeable lens options including an ultra short throw lens

DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Multicolour Laser
Innovative Multicolour Laser (MCL) technology adds a second red laser to the common blue laser. This results in greatly improved colour performance.

IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

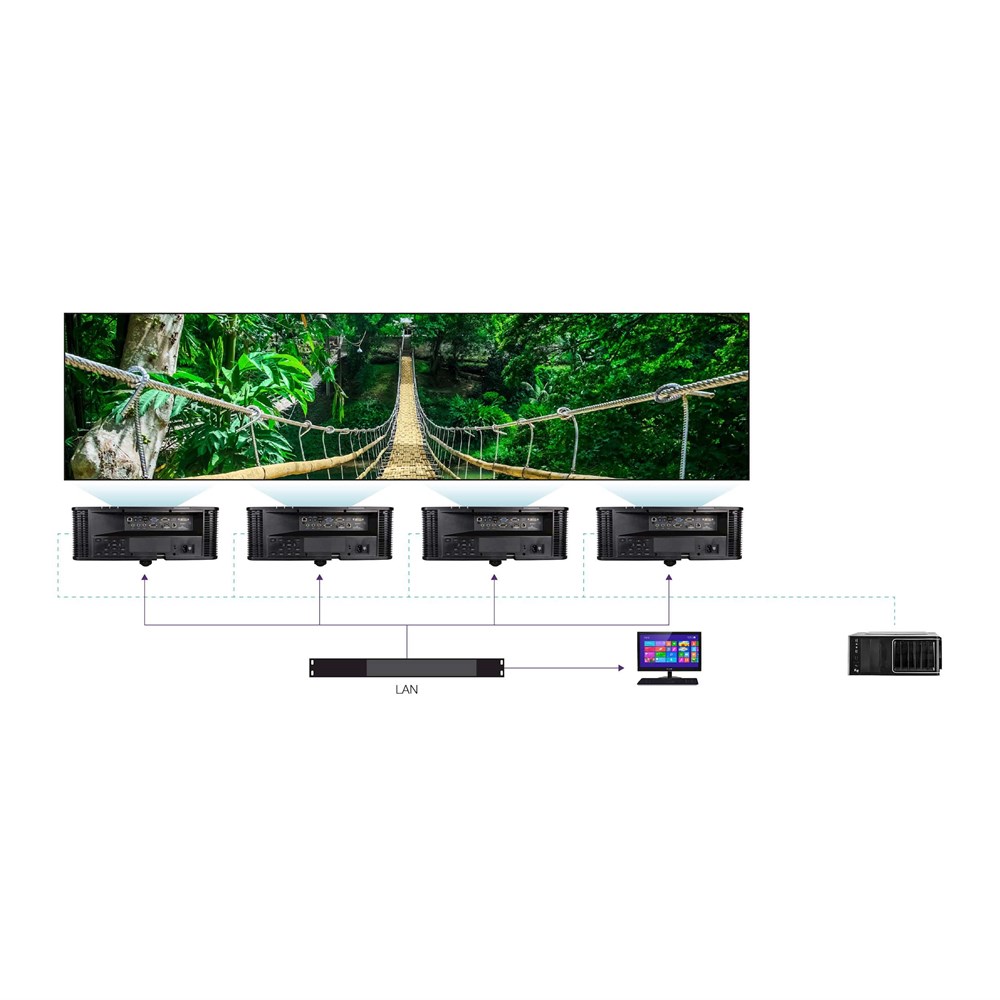

Integrated warping and edge blending processor
Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
*Compatible multi output graphics card with overlap function is required.


HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

Amazing colour
Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

Colour Management System (CMS)
Display accurate lifelike colours to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the colour settings for optimal precision.

Brightness matching
A valuable feature of any professional installation incorporating more than one projector. Multiple units of the same model and similar lamp usage can be fine tuned to give the same brightness levels; important, especially when side by side.


Constant power
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere inbetween

Constant brightness
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations

True AV mute
True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

Extreme Black
Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.

Full lens shift
Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

Picture by picture picture-in-picture
Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.

360 projection*
Images can be projected over a 360° range* along the projector’s horizontal axis.
*For more information please refer to the user manual

Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

Customise your projector
Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations. *Contact us for more information

Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Wired remote
The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Control
Featuring a wide range of options you can control and monitor the projector remotely.

• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control systems

PJLink
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

Specification

• Display/ Image
• Display technology: DLP™
• Resolution: WUXGA (1920x1200)
• Brightness: 11,500 lumens
• ANSI brightness: 9,600
• Contrast ratio: 2,000,000:1
• Native aspect ratio: 16:10
• Aspect ratio - compatible: 4:3,16:9,16:10
• Keystone correction - horizontal: +/-20°
• Keystone correction - vertical: +/-20°
• Uniformity: 90%
• Screen size: Dependent on lens

Lamp Info

• Light source type: Laser
• LASER life: 30,000 hours

Optical

• Throw ratio: Dependent on lens
• Projection distance (m): Dependent on lens
• Lens options:
  • BX-CTA16- 0.36 ~ 0.36
  • BX-CTA17- 0.65~0.75
  • BX-CTA15- 0.75 ~ 0.95
  • BX-CTA01- 0.95 ~ 1.22
  • BX-CTA06- 1.22 ~ 1.53
  • BX-CTA03- 1.52 ~ 2.92
  • BX-CTA13- 2.90 ~ 5.50
• Lens shift: Yes - see documentation for details

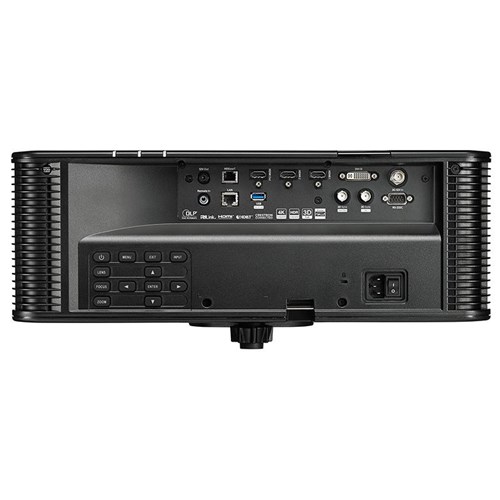

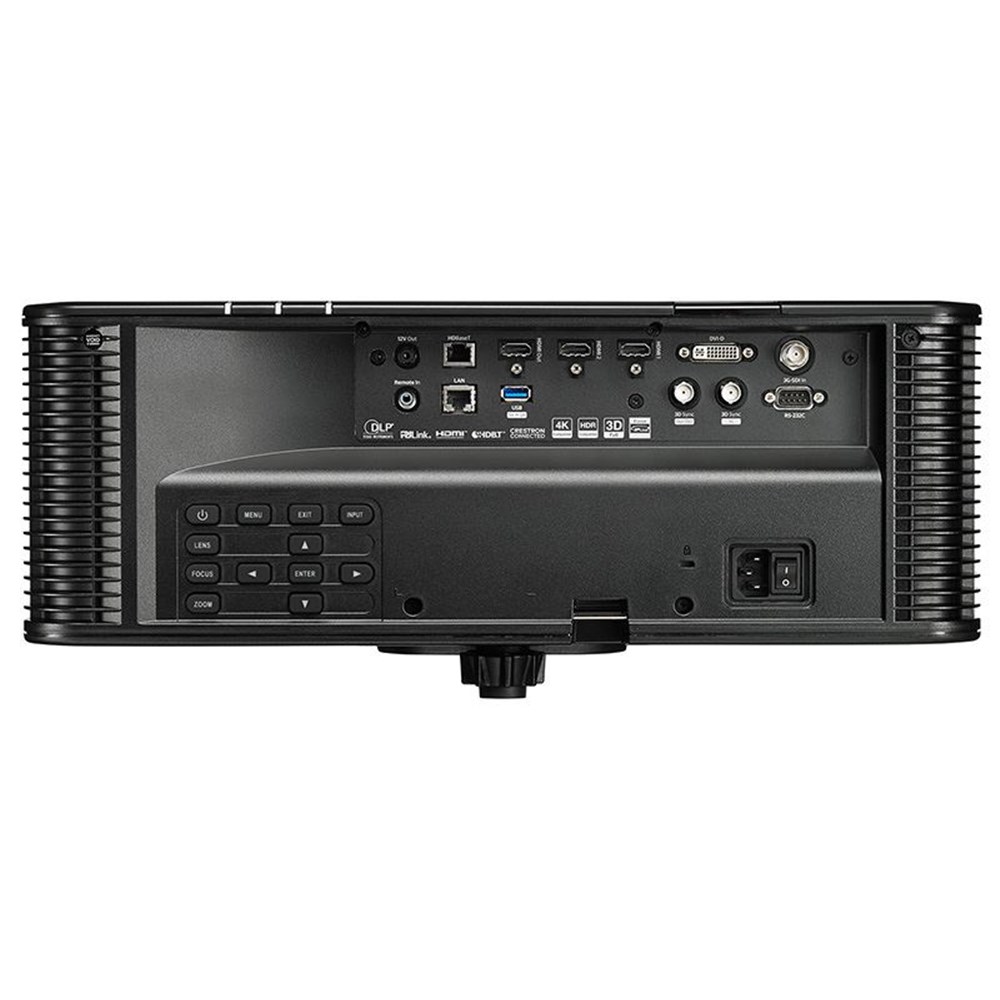

Connectivity

• Connections:
  • Inputs 2 x HDMI 2.0, 1 x 3D sync, 1 x DVI-D, 1 x HDBaseT, 1 x 3G-SDI, 1 x 12V trigger
  • Outputs 1 x 3D sync, 1 x HDMI, 1 x USB-A power 2A
  • Control 1 x RS232, 1 x Wired remote, 1 x RJ45

General

• PC compatibility: HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
• 2D compatibility: PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
• 3D compatibility: Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
• 3D: Full 3D
• Security: Security bar, Kensington Lock
• IP rating: IP6X
• OSD / display languages: 11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
• 24/7 operation: Yes
• 360° operation: Yes
• Operating conditions: 5°C~40°C/41°F~104°F, max altitude M/0ft, max humidity 10-85%

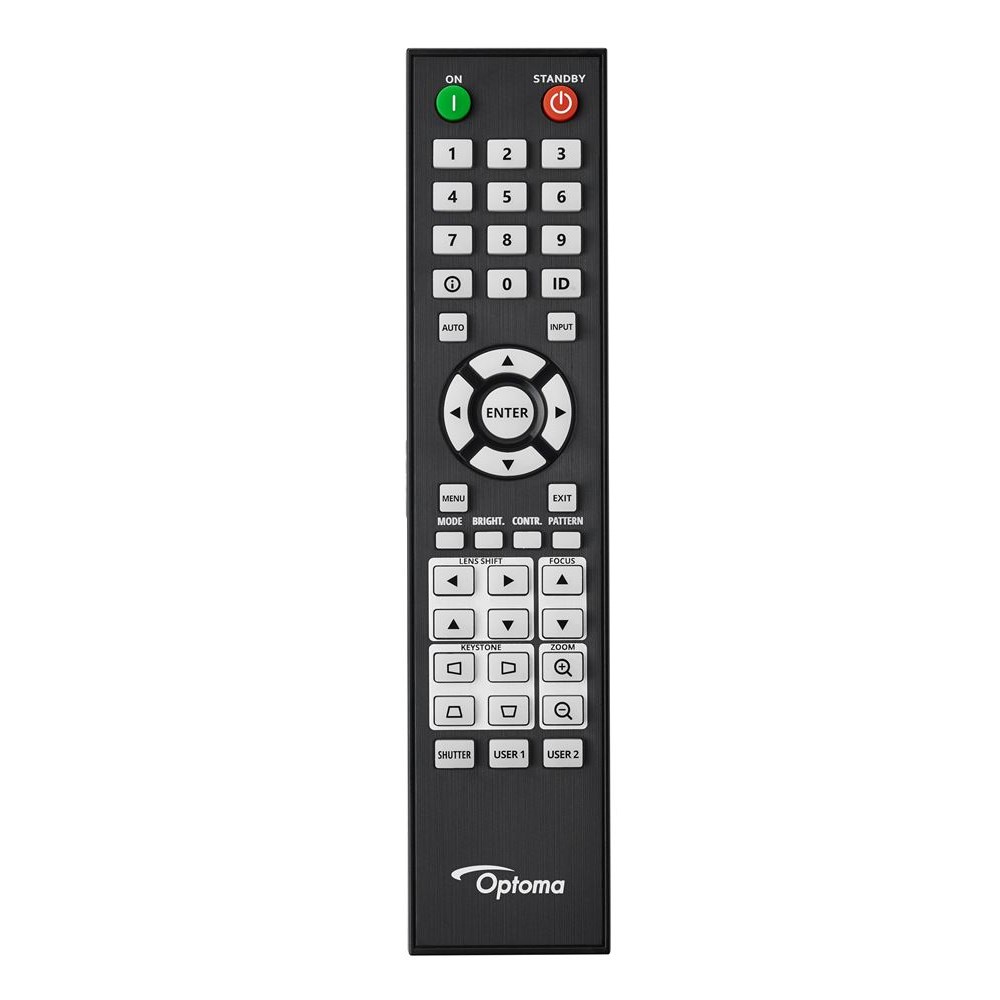

• Remote control: Wired ProAV remote
• In the box: AAA Battery, AC power cable 3M, Lens cover, Quick start guide
• Optional wireless models: QuickCast Bundle, QuickCast starter kit

Networking

• LAN: Yes

Power

• Power supply: 100 - 240V, 50 - 60Hz
• Power consumption (standby): 0.5W
• Power consumption (min): 360W

Weights and Dimensions

• Dimensions (W x D x H) mm: 484 x 529 x 207.8
• Net weight: 21 kg
