Paging Systems

8 Zone Controller ZONEMIX8 Australian Monitor

Product Code: AJ-ZONEMIX8

Brand
Australian Monitor
RRP $2,739.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Australian Monitor
Product type Mixer Controller
Zones 8 Zones
  • Details
  • Downloads

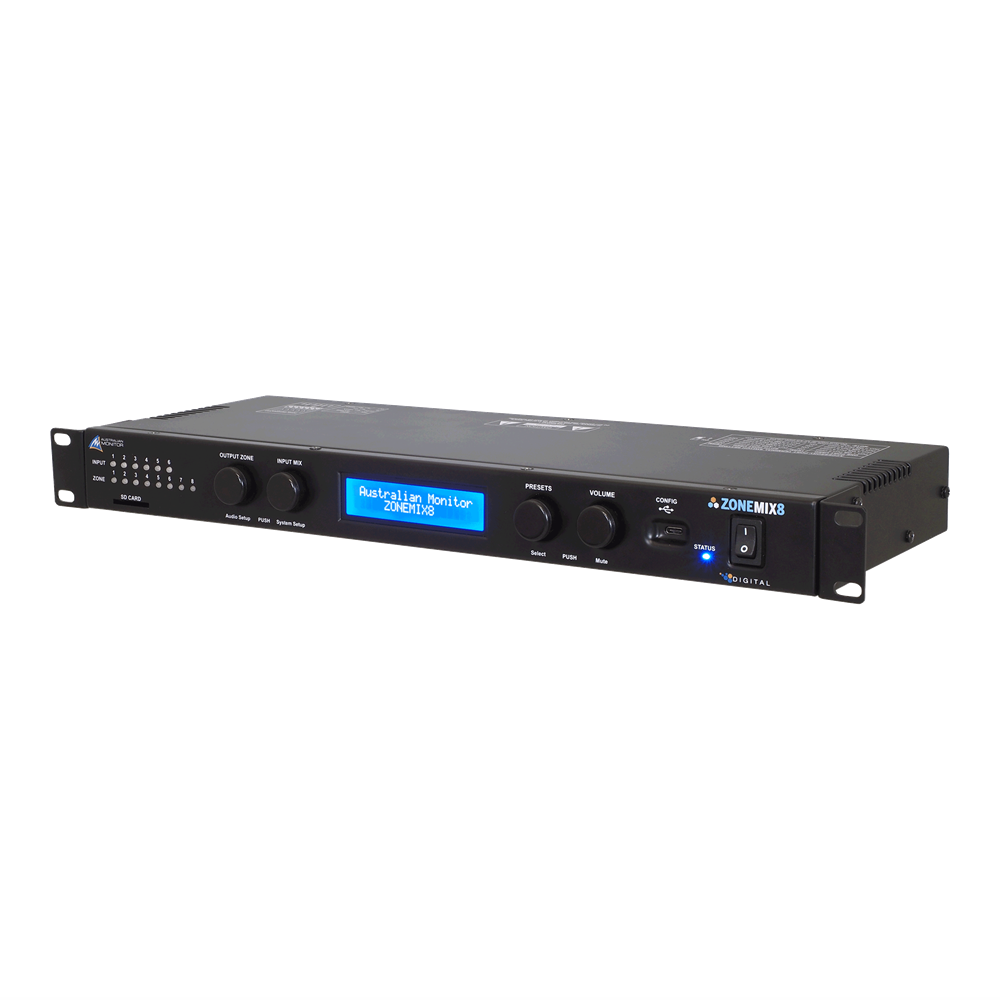

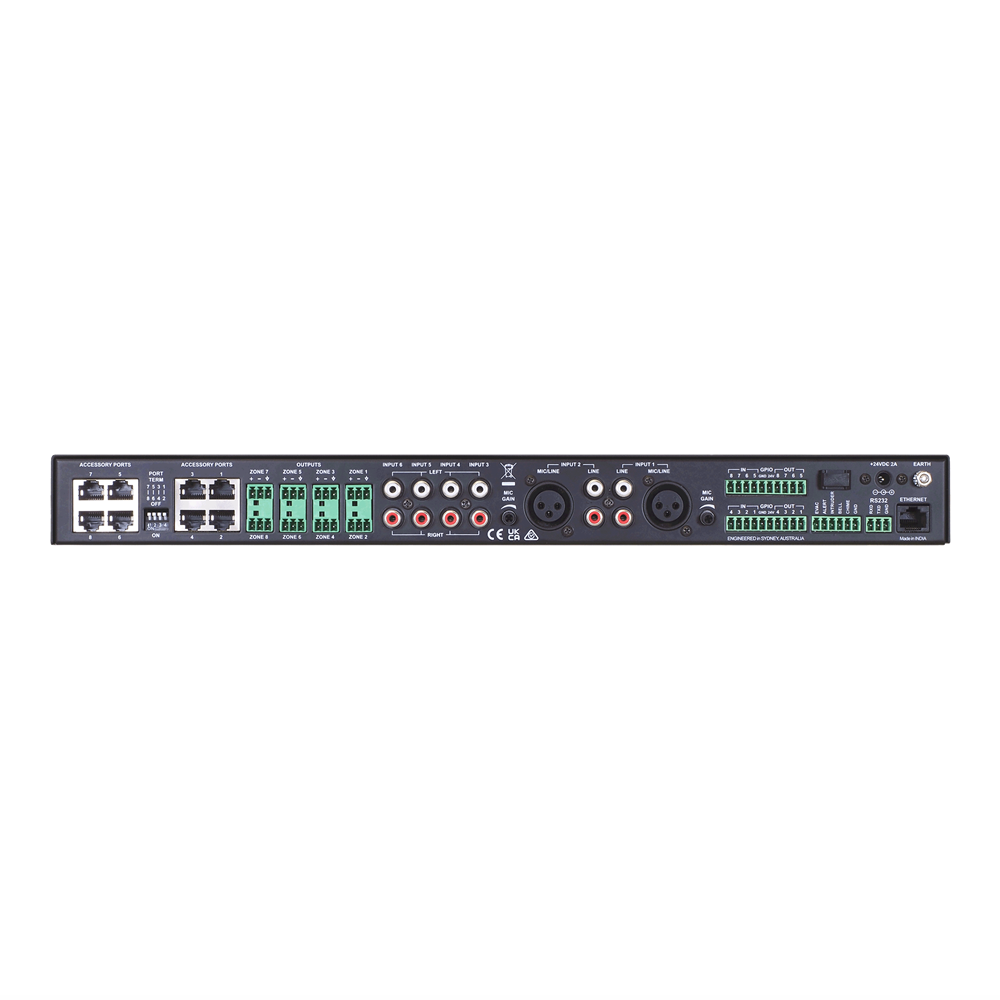

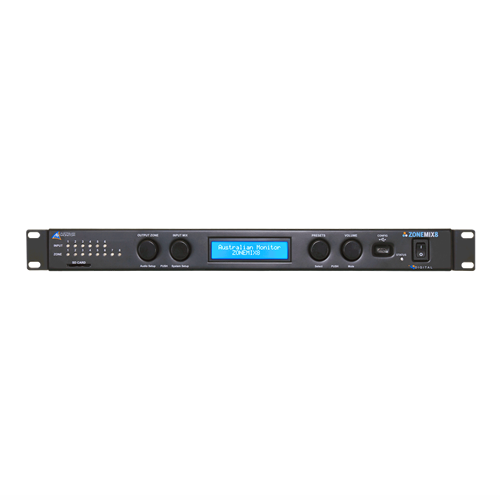

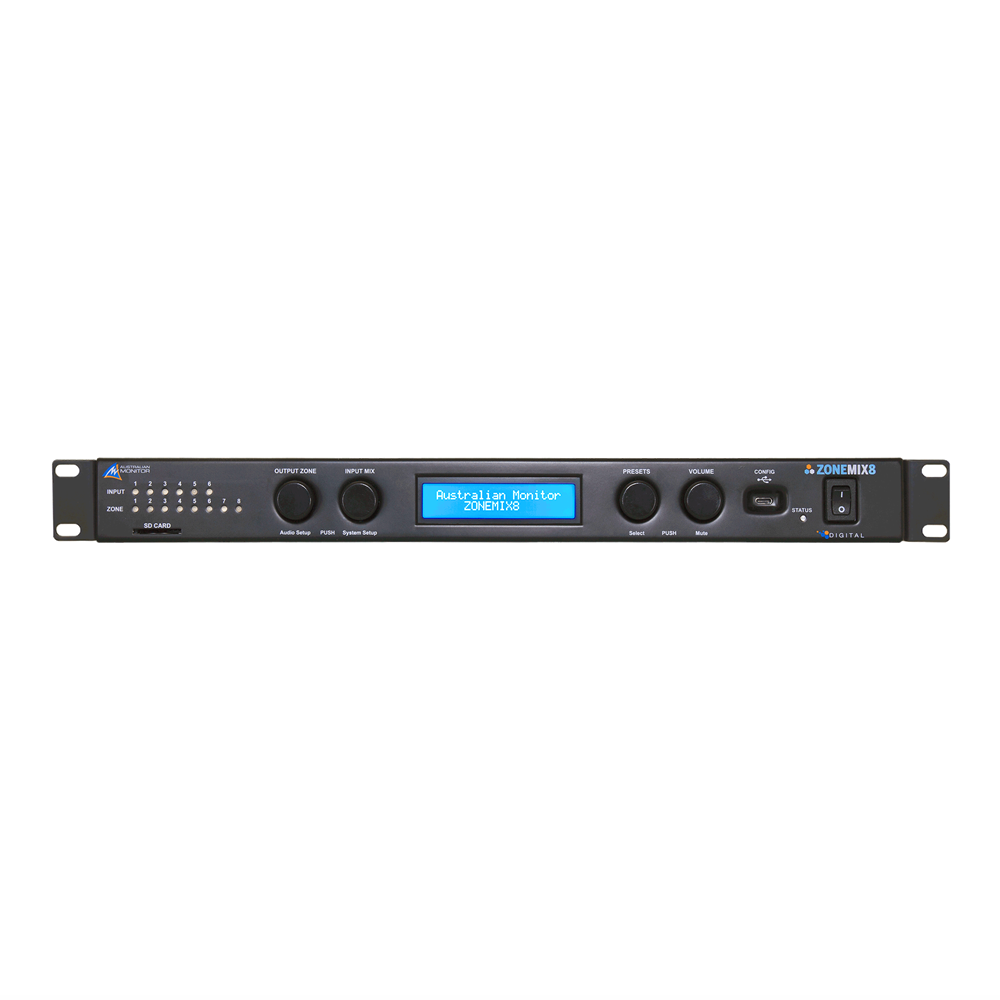

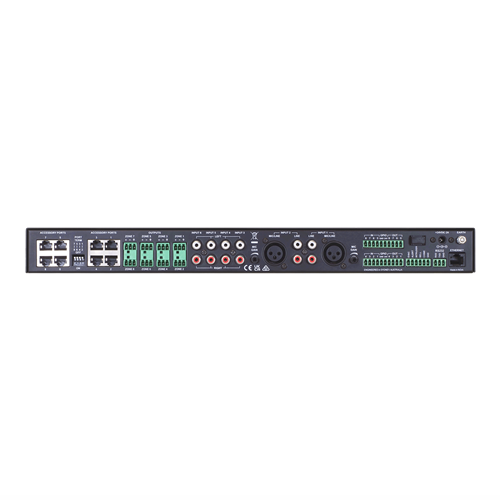

ZONEMIX8

The ZONEMIX8 provides an 8 zone mixing and paging solution featuring USB, Ethernet and RS232 connectivity.  Optional wall panel accessories include 3 controller models, a Bluetooth receiver, and a mic/line level input.  A PC application allows for setup and control of the ZONEMIX and customisation of the wall panels and paging stations.

FEATURES
  • Input/Output Mixing:- 2 mic/line and 4 line inputs to 8 zone outputs
  • miniDSP
  • Builtin EVAC, Intruder, Bell and Chime tones
  • Tone can be cusotmised via SD Card (not supplied)
  • Custom messages can be stored on the SD Card and triggered via the scheduler, contact closure, ZMPS paging station or wall panels
  • Multi level priority
  • COMING SOON Scheduler to trigger global, or zone presets, contract closure ourputs, tones and pre-recorded messages.
  • COMING SOON 8 contact closure inputs and outputs
  • Supports one local audio input per output zone
SPECIFICATIONS
INPUTS/OUTPUTS
Zone Outputs 8
Output Mode Stereo/Mono
Mic/Line Inputs 2
Line Inputs 4
Local Audio Inputs 8
Paging Stations Up to 16
Wall Panels Up to 16
CONTROL
User Controls Front Panel, Wall Panels
Communication Interface USB-C, Ethernet, RS232
General Purpose I/O 8 in 8 out
Tone Generator 5 Tones
SD Card WAV: PCM, 16 bit, up to 48kHz sample rate
AUDIO PERFORMANCE
Frequency Response 20Hz -20kHz
THD <0.01%
SNR >100dBA
MECHANICAL
Dimensions (W x D x H) 484 x 160 x 44.5mm
Weight 2.4 kg
Unit Height 1RU
Input Voltage 24VDC
Power Consumption 8W

Product Documents
