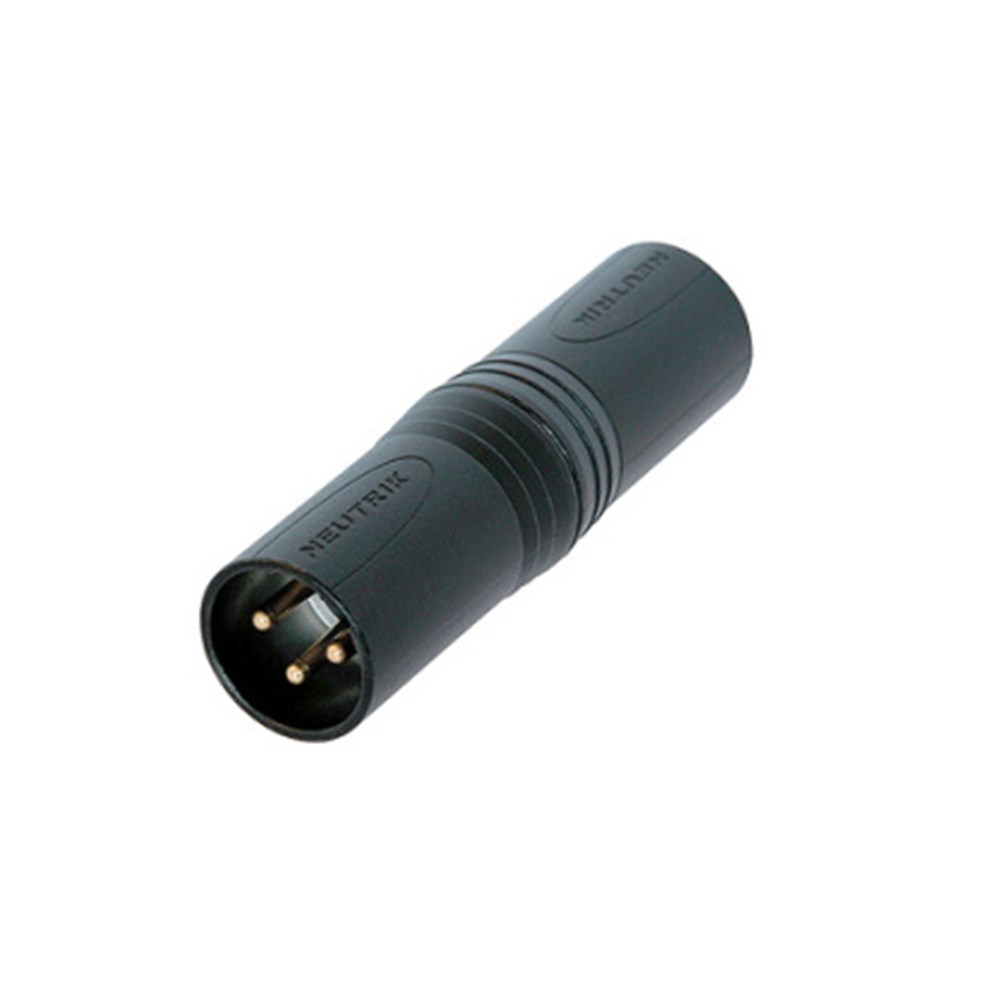

NA3MM-B

3 pole XLR male - 3 pole XLR male (gender conversion adapter, black plated)

Features & Benefits

• Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
• Professional look and compact space saving design, based on the XX Series
• Rugged diecast shell for best reliability

Product

Title

• NA3MM-B

Connection Type

• Adapter

Electrical

Contact resistance

• ≤ 3 mΩ

Dielectric strength

• 1,5 kVdc

Insulation resistance

• > 2 GΩ

Mechanical

Locking device

• Latch lock

Material

Contact plating

• 0.2 µm Au hard alloy over 2 µm Ni

Contacts

• Brass (CuZn39Pb3)

Insert

• Polyamide (PA 6.6 30 % GR)

Shell

• Zinc diecast (ZnAl4Cu1)

Shell plating

• Black

Environmental

Temperature range

• -20 °C to +65 °C
